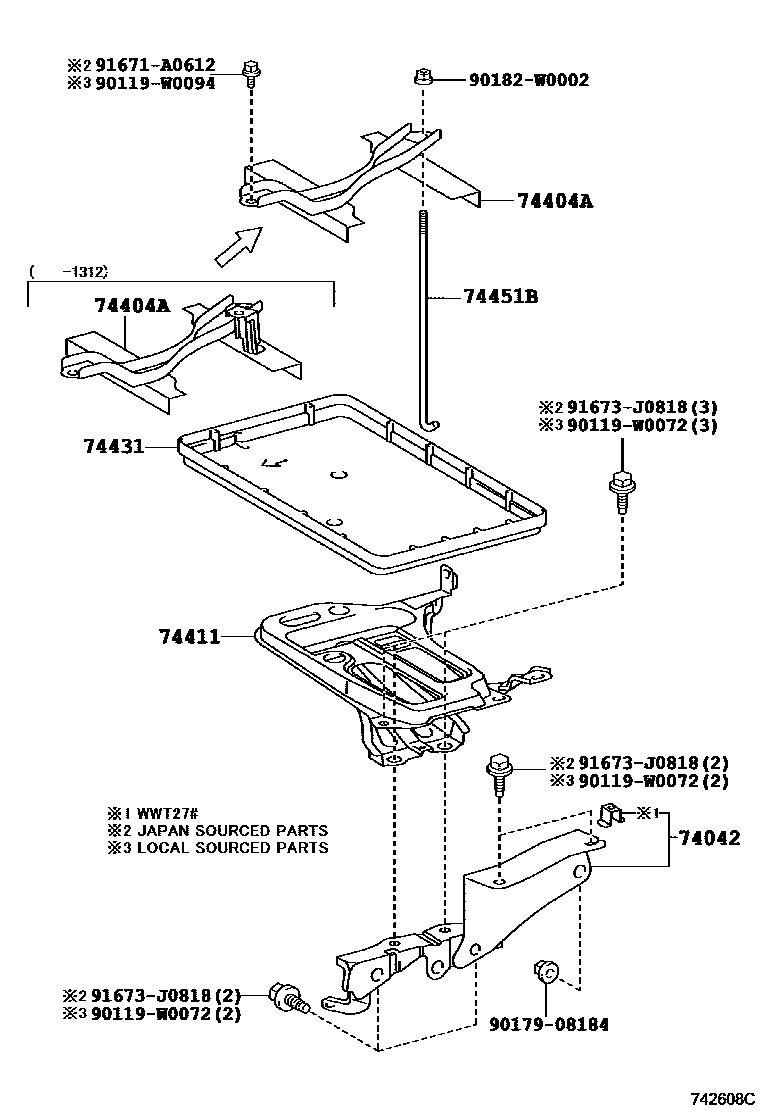

BATTERY CARRIER
74042BRACKET SUB-ASSY, BATTERY
74404ACLAMP SUB-ASSY, BATTERY
BATTERY-84AH,825A,LIQUID REFILLABLE TYPE; BATTERY-84AH,825A,MAINTENANCE FREE TYPE
BATTERY-84AH,825A,MAINTENANCE FREE TYPE
74411CARRIER, BATTERY
74431TRAY, BATTERY
BATTERY-84AH,825A,MAINTENANCE FREE TYPE
74451BBOLT, BATTERY CLAMP
main74451-30110iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111
90119W0072
main90119-W0072
90119W0094
main90119-W0094
9017908184
main90179-08184
90182W0002
main90182-W0002
91671A0612
main91671-A0612
91673J0818
main91673-J0818
11 parts on this diagram · 2 diagrams in section
