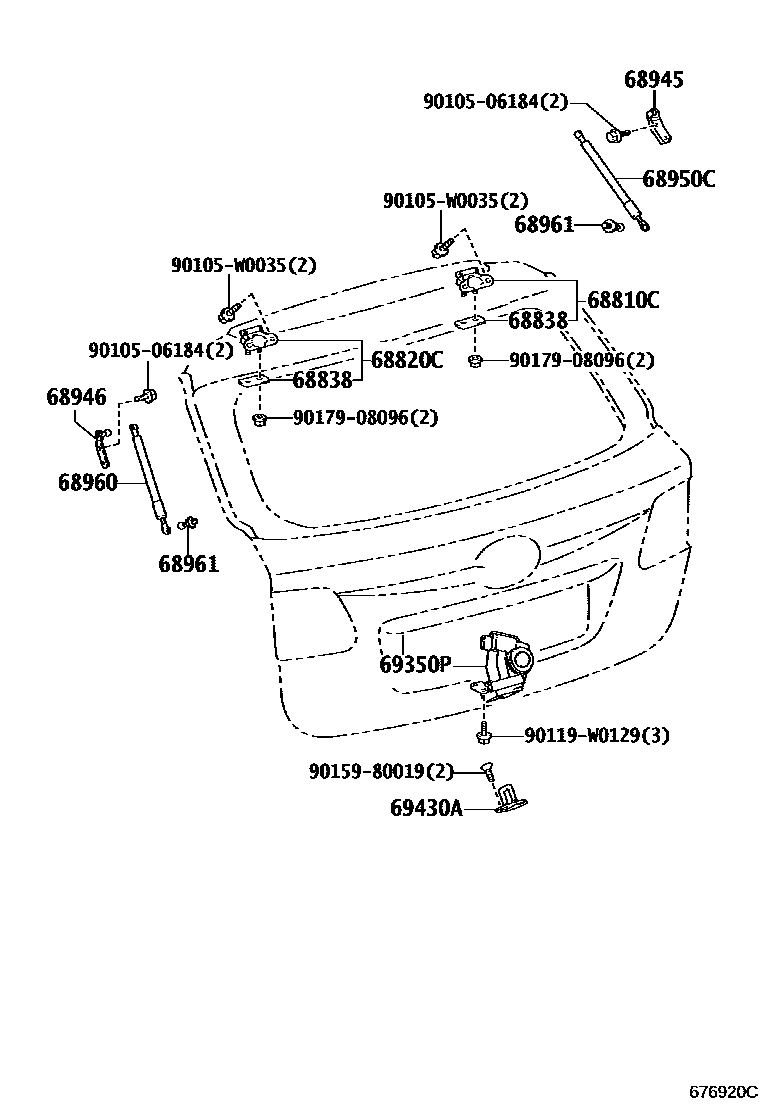

BACK DOOR LOCK & HANDLE

68810CHINGE ASSY, BACK DOOR, RH

main68810-05030iADT27#,ZRT27#..WG200811-201111

PAD T=1.0

main68810-05040iWWT27#,ZRT27#..WG201505

PAD T=1.6

main68810-05050iADT27#,ZRT27#..WG200811-201111

PAD T=2.0

68820CHINGE ASSY, BACK DOOR, LH

main68810-05030iWWT27#,ZRT27#..WG201505

PAD T=1.0

main68810-05040iWWT27#,ZRT27#..WG201505

PAD T=1.6

main68810-05050iADT27#,ZRT27#..WG200811-201111

PAD T=2.0

68838PAD, BACK DOOR HINGE, NO.1

main68838-05040×2iADT27#,ZRT27#..WG200811-201111

T=1.0

main68838-05050×2iWWT27#,ZRT27#..WG201505-201807

T=1.6

main68838-05060×2iADT27#,ZRT27#..WG201111-201505

T=2.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-05030iADT27#,ZRT27#..WG200811-201111

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-05030iADT27#,ZRT27#..WG200811-201111

68950CSTAY ASSY, BACK DOOR, RH

main68950-05080iADT27#,ZRT27#..WG200811-200906

main68950-05081iADT27#,ZRT27#..WG200906-201111

main68950-05090iWWT27#,ZRT270,271..WG..6F201505-201508

main68950-05091iWWT27#,ZRT270,271..WG..6F201509

main68950-05100iZRT271,272..WG..CVT201505-201508

main68950-05101iZRT271,272..WG..CVT201509

68960STAY ASSY, BACK DOOR, LH

main68960-05080iADT27#,ZRT27#..WG200811-200906

main68960-05081iADT27#,ZRT27#..WG200906-201111

main68960-05090iWWT27#,ZRT270,271..WG..6F201505-201508

main68960-05091iWWT27#,ZRT270,271..WG..6F201509

main68960-05100iZRT271,272..WG..CVT201505-201508

main68960-05101iZRT271,272..WG..CVT201509

68961BOLT, BACK DOOR STAY

main68961-02050×2iADT27#,ZRT27#..WG201301-201505

main68961-05010×2iADT27#,ZRT27#..WG200811-201111

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-05060iADT27#,ZRT27#..WG200811-201111

69430ASTRIKER ASSY, BACK DOOR LOWER LOCK

main69430-0D020iADT27#,ZRT27#..WG200811-201111

9010506184

main90105-06184

90105W0035

main90105-W0035

90119W0129

main90119-W0129

9015980019

main90159-80019

9017908096

main90179-08096

15 parts on this diagram · 1 diagram in section
