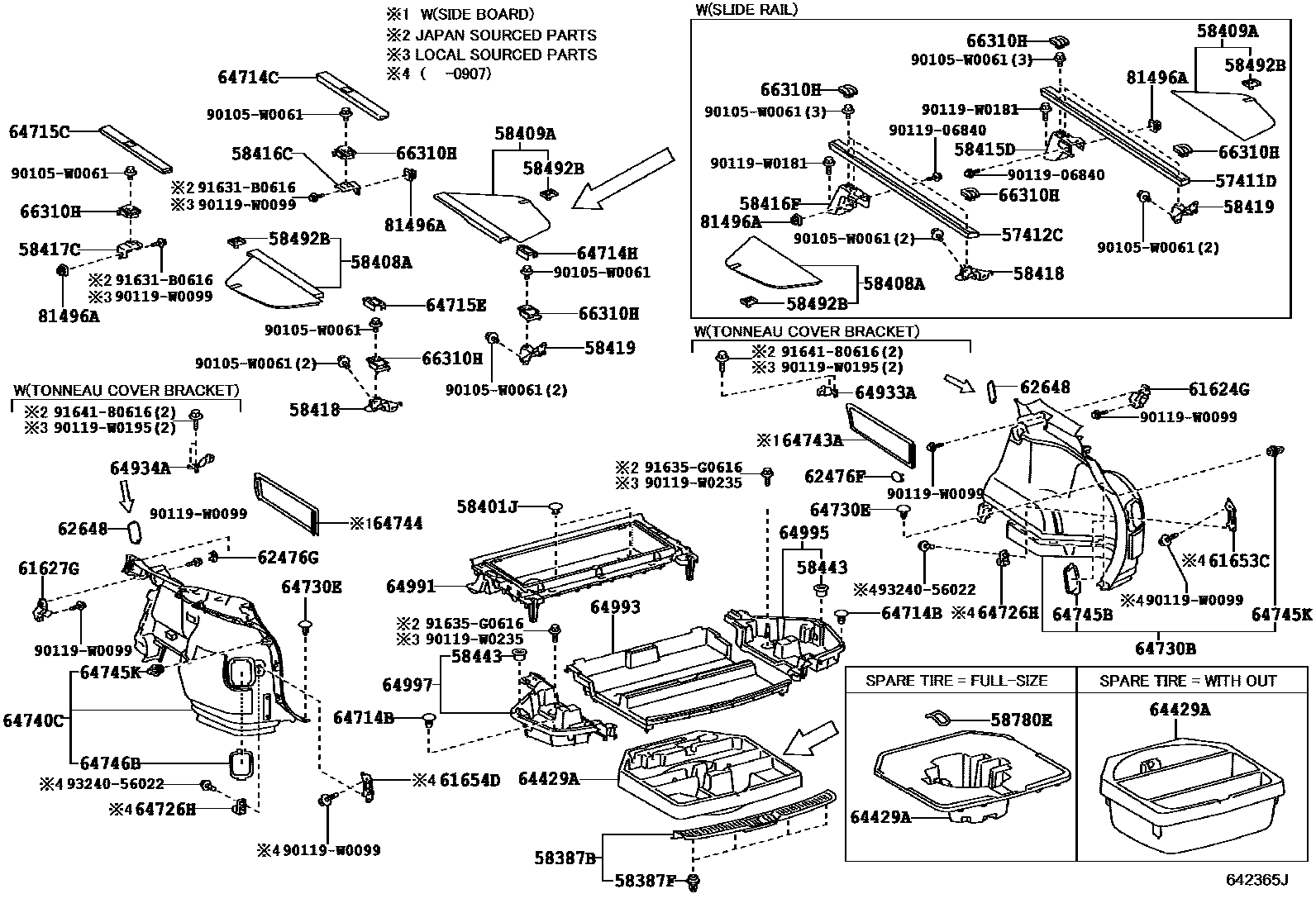

DECK BOARD & DECK TRIM COVER

0001 1 0002 1

57411DRAIL, FLOOR SIDE, RH

57412CRAIL, FLOOR SIDE, LH

58387BPLATE, REAR FLOOR FINISH

main58387-05110-C0iZRT270..WG..N;ADT27#,ZRT271,272..WG..(E,N)201111-201505

BLACK,TRIM1#,2#,4#

main58387-05110-C0iZRT270..WG..N;ADT27#,ZRT271,272..WG..(E,N)200811-201505

BLACK,TRIM2#

main58387-05110-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM1#,2#,4#

main58387-05110-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM2#

main58387-05110-E0iADT27#,ZRT27#..WG..E200811-201111

GREGE,TRIM4#

58387FCLIP, REAR FLOOR FINISH PLATE

main90467-W0005iADT27#,ZRT27#..WG200811-201505

58401JCLIP(FOR DECK BOAD)

main90467-09156-C0iADT27#,ZRT27#..WG200811-201505

BLACK

58408ABOARD SUB-ASSY, DECK, NO.2

main58408-05040-C0iADT27#,ZRT27#..WG200811-200903

BLACK,TRIM2#

main58408-05040-E0iADT27#,ZRT271,272..WG..(E,G,V)200811-200903

GREGE,TRIM4#

main58408-05041-C0iADT270,ZRT270,271..WG..N201111-201505

BLACK,TRIM1#,2#,4#

main58408-05041-C0iADT27#,ZRT27#..WG200904-201505

BLACK,TRIM2#

main58408-05041-C2iZRT272..WG..G;WWT27#,ZRT270,271..WG..(E,G)201505

BLACK/EU BLACK,TRIM2#

main58408-05041-C2iWWT270,ZRT270,271..WG..N201505

BLACK/EU BLACK,TRIM1#,2#,4#

main58408-05041-C2iWWT270,ZRT270,271..WG..N201505

BLACK/EU BLACK,TRIM1#,4#

main58408-05041-E0iADT27#,ZRT27#..WG..(E,G,V)200904-201111

GREGE,TRIM4#

58409ABOARD SUB-ASSY, DECK, NO.3

main58409-05020-C1iADT27#,ZRT27#..WG200811-200903

BLACK,TRIM2#

main58409-05020-E1iADT27#,ZRT271,272..WG..(E,G,V)200811-200903

GREGE,TRIM4#

main58409-05021-C1iADT270,ZRT270,271..WG..N201111-201505

BLACK,TRIM1#,2#,4#

main58409-05021-C1iADT27#,ZRT27#..WG..(E,G)200904-201505

BLACK,TRIM2#

main58409-05021-C3iWWT270,ZRT270,271..WG..N201505

BLACK/EU BLACK,TRIM1#,4#

main58409-05021-C3iZRT272..WG..G;WWT27#,ZRT270,271..WG..(E,G)201505

BLACK/EU BLACK,TRIM2#

main58409-05021-C3iZRT272..WG..G;WWT27#,ZRT270,271..WG..(E,G)201505

BLACK/EU BLACK,TRIM1#,2#,4#

main58409-05021-E1iADT27#,ZRT27#..WG..(E,G,V)200904-201111

GREGE,TRIM4#

58415DBRACKET, DECK BOARD SUPPORT

58416CBRACKET, DECK BOARD, NO.1 RH

main58337-05020iWWT27#,ZRT27#..WG200811-201505

58416FBRACKET, DECK BOARD, NO.1

58417CBRACKET, DECK BOARD, NO.1 LH

main58338-05010iADT27#,ZRT27#..WG200811-201505

58418BRACKET, DECK BOARD, NO.1

main58418-05011iADT27#,ZRT27#..WG200811-201505

58419BRACKET, DECK BOARD, NO.2

main58419-05011iWWT27#,ZRT27#..WG200811-201505

58443CUSHION, DECK BOARD, NO.1

main58443-33010iWWT27#,ZRT27#..WG200811-201505

58492BHOOK, DECK BOARD LOCK

main58492-05020iADT27#,ZRT27#..WG200811-200903

main58492-05021-C0iZRT272..WG..E201111-201505

BLACK,TRIM1#,2#,4#

main58492-05021-C0iZRT272..WG..E201505

BLACK,TRIM1#,4#

main58492-05021-C0iWWT270,ZRT270,271..WG..N200904-201505

BLACK,TRIM2#

main58492-05021-E0iZRT272..RHD..WG;ADT270,ZRT271..WG..E;ADT271,ZRT272..WG..(G,V)200904-201111

GREGE,TRIM4#

58780EBAND ASSY, TOOL BOX

61624GBRACKET, DECK SIDE TRIM UPPER, RH

main61624-05010iWWT27#,ZRT27#..WG200811-201505

61627GBRACKET, DECK SIDE TRIM UPPER, LH

main61627-05040iADT27#,ZRT27#..WG200811-201505

61653CBRACKET, DECK SIDE TRIM, RH

main61653-05010iADT27#,ZRT27#..WG200811-200907

61654DBRACKET, DECK SIDE TRIM, NO.2

main61654-05010iADT27#,ZRT27#..WG200811-200907

62476FCAP, ROOF SIDE INNER GARNISH, NO.1

main62476-05010-C0iADT270,ZRT270,271..WG..N200811-201111

BLACK,TRIM2#,4#

main62476-05010-C0iADT270,ZRT270,271..WG..N200811-201505

BLACK,TRIM2#

main62476-05010-C0iADT27#,ZRT27#..WG..E201006-201111

SOL GRADE,BLACK,TRIM2#

main62476-05010-C0iZRT270..WG..E;ADT27#,ZRT271,272..WG..G201111-201505

BLACK,TRIM1#,2#,4#

main62476-05010-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM2#

main62476-05010-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM1#,2#,4#

62476GCAP, ROOF SIDE INNER GARNISH, NO.2

main62477-05010-C0iADT27#,ZRT27#..WG..E200811-201111

BLACK,TRIM2#,4#

main62477-05010-C0iADT271,ZRT272..WG..(G,V)200811-201505

BLACK,TRIM2#

main62477-05010-C0iADT27#,ZRT27#..WG..E201006-201111

SOL GRADE,BLACK,TRIM2#

main62477-05010-C0iZRT270..WG..E;ADT27#,ZRT271,272..WG..G201111-201505

BLACK,TRIM1#,2#,4#

main62477-05010-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM2#

main62477-05010-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM1#,2#,4#

62648CAP, SIDE TRIM

main62476-05020-C0iZRT270..WG..N;ADT27#,ZRT271,272..WG..(E,N)201111-201505

BLACK,TRIM2#,RH

main62476-05020-C0iZRT270..WG..E;ADT27#,ZRT271,272..WG..G201111-201505

BLACK,TRIM1#,2#,4#,RH

main62476-05020-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM2#,RH

main62476-05020-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM1#,2#,4#,RH

main62477-05020-C0iZRT270..WG..E;ADT27#,ZRT271,272..WG..G201111-201505

BLACK,TRIM1#,2#,4#,LH

main62477-05020-C0iZRT270..WG..E;ADT27#,ZRT271,272..WG..G201111-201505

BLACK,TRIM2#,LH

main62477-05020-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM2#,LH

main62477-05020-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM1#,2#,4#,LH

64429ABOX, LUGGAGE COMPARTMENT TRIM

main64429-05020-C0iZRT271..WG..6F;ADT27#,ZRT272..WG;ZRT270..LHD..WG..N;ZRT271..LHD..WG..CVT..E200811-201505

BLACK

main64429-05041-C0iWWT27#,ZRT27#..WG201505

BLACK

64714BPLUG, HOLE(FOR DECK TRIM SIDE COVER)

main68714-50040iADT27#,ZRT27#..WG200811-201505

64714CCOVER, DECK SIDE TRIM, RH

main58411-05010-C0iADT27#,ZRT27#..WG..(E,G)201111-201505

BLACK,TRIM1#,2#,4#

main58411-05010-C0iADT27#,ZRT27#..WG200811-201505

BLACK,TRIM2#

main58411-05010-C1iWWT27#,ZRT27#..WG..(E,G)201505

EU BLACK,TRIM1#,2#,4#

main58411-05010-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM2#

main58411-05010-E0iADT27#,ZRT27#..WG..(E,G,V)200811-201111

GREGE,TRIM4#

64714HCOVER, DECK SIDE TRIM, NO.1

main58417-05010-C0iADT27#,ZRT27#..WG..(E,G)200811-201505

BLACK,TRIM2#

main58417-05010-C0iADT270,ZRT270,271..WG..N201111-201505

BLACK,TRIM1#,2#,4#

main58417-05010-C1iWWT27#,ZRT27#..WG..(E,G)201505

EU BLACK,TRIM1#,2#,4#

main58417-05010-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM2#

main58417-05010-E0iADT27#,ZRT27#..WG..(E,G,V)200811-201111

GREGE,TRIM4#

64715CCOVER, DECK SIDE TRIM, LH

main58412-05010-C0iADT270,ZRT270,271..WG..N200811-201505

BLACK,TRIM2#

main58412-05010-C0iADT270,ZRT270,271..WG..N201111-201505

BLACK,TRIM1#,2#,4#

main58412-05010-C1iWWT27#,ZRT27#..WG..(E,G)201505

EU BLACK,TRIM1#,2#,4#

main58412-05010-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM2#

main58412-05010-E0iADT27#,ZRT27#..WG..(E,G,V)200811-201111

GREGE,TRIM4#

64715ECOVER, DECK SIDE TRIM, NO.2

main58426-05030-C0iADT270,ZRT270,271..WG..N201111-201505

BLACK,TRIM1#,2#,4#

main58426-05030-C0iADT27#,ZRT27#..WG200811-201505

BLACK,TRIM2#

main58426-05030-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM1#,2#,4#

main58426-05030-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM2#

main58426-05030-E0iADT27#,ZRT27#..WG..(E,G,V)200811-201111

GREGE,TRIM4#

64726HHOOK, DECK SIDE TRIM, NO.2

main64726-05030-C0iADT27#,ZRT27#..WG200811-200907

BLACK,TRIM2#

main64726-05030-E0iADT27#,ZRT27#..WG..(E,G,V)200811-200907

GREGE,TRIM4#

64730BPANEL ASSY, DECK TRIM SIDE, RH

main64730-05070-C1iADT27#,ZRT27#..WG..(E,G,V)200811-200907

BLACK,GREGE,TRIM4#

main64730-05070-C2iADT27#,ZRT27#..WG200811-200907

BLACK,BLACK,TRIM2#

main64730-05071-C1iZRT272..RHD..WG;ADT270,ZRT271..WG..E200907-201111

GREGE,TRIM4#

main64730-05071-C2iADT27#,ZRT27#..WG200907-201505

BLACK,TRIM2#

main64730-05071-C2iZRT270..WG..E;ADT27#,ZRT271,272..WG..G201111-201505

BLACK,TRIM1#,2#,4#

main64730-05080-C0iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM2#

main64730-05080-C0iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM1#,2#,4#

64730ECLIP(FOR DECK TRIM SIDE BOARD)

main90467-08186-C0iADT27#,ZRT27#..WG200811-201308

BLACK

main90467-W0007iADT27#,ZRT27#..WG201309-201505

64740CPANEL ASSY, DECK TRIM SIDE, LH

main64740-05070-C1iADT27#,ZRT27#..WG..(E,G,V)200811-200906

BLACK,GREGE,TRIM4#

main64740-05070-C2iADT27#,ZRT27#..WG200811-200906

BLACK,BLACK,TRIM2#

main64740-05071-C1iADT271,ZRT272..WG..(G,V)200907-201111

GREGE,TRIM4#

main64740-05071-C2iZRT270..WG..E;ADT27#,ZRT271,272..WG..G200907-201505

BLACK,TRIM2#

main64740-05071-C2iZRT270..WG..N;ADT27#,ZRT271,272..WG..(E,N)201111-201505

BLACK,TRIM1#,2#,4#

main64740-05080-C0iWWT27#,ZRT27#..WG..(E,G)201505

EU BLACK,TRIM2#

main64740-05080-C0iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM1#,2#,4#

64743ABOARD, DECK TRIM SIDE, LOWER RH

main64743-05010-C0iADT27#,ZRT27#..WG..E200811-201111

BLACK,TRIM2#

main64743-05010-E0iADT27#,ZRT27#..WG..E200811-201111

GREGE,TRIM4#

64744BOARD, DECK TRIM SIDE, LOWER LH

main64744-05010-C0iADT27#,ZRT27#..WG..E200811-201111

BLACK,TRIM2#

main64744-05010-E0iADT271,ZRT272..WG..(G,V)200811-201111

GREGE,TRIM4#

64745BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, RH

main64745-05070-C1iADT27#,ZRT27#..WG..(E,G)200811-201505

BLACK,TRIM2#

main64745-05070-C1iADT270,ZRT270,271..WG..N201111-201505

BLACK,TRIM1#,2#,4#

main64745-05070-E0iZRT272..LHD..WG..E;ADT271,ZRT270..WG..E200811-201111

GREGE,TRIM4#

64745KCLIP(FOR REAR COMBINATUON LAMP SERVICE COVER)

main90467-W0005iADT27#,ZRT27#..WG200811-201505

64746BCOVER, REAR COMBINATION LAMP SERVICE, NO.2, LH

main64746-05070-C1iADT270,ZRT270,271..WG..N200811-201505

BLACK,TRIM2#

main64746-05070-C1iWWT27#,ZRT27#..WG..(E,G)201111-201505

BLACK,TRIM1#,2#,4#

main64746-05070-E0iZRT272..RHD..WG;ADT270,ZRT271..WG..E200811-201111

GREGE,TRIM4#

64933ABRACKET, TONNEAU COVER HOLDER, RH

main64933-05020iADT27#,ZRT27#..WG200811-201111

64934ABRACKET, TONNEAU COVER HOLDER, LH

main64934-05020iADT27#,ZRT27#..WG200811-201111

64991BOX, DECK FLOOR, FRONT

main64070-05010iADT27#,ZRT27#..WG200811-201111

main64070-05011iWWT27#,ZRT27#..WG201111-201505

64993BOX, DECK FLOOR, REAR

main64993-05030iADT27#,ZRT27#..WG200811-201505

64995BOX, DECK FLOOR, RH

main64995-05030iADT27#,ZRT27#..WG200811-201505

64997BOX, DECK FLOOR, LH

main64997-05030iADT27#,ZRT27#..WG200811-201505

66310HHOOK ASSY, ROPE

main66310-05030-C0iADT27#,ZRT27#..WG..(E,G)201111-201505

BLACK,TRIM1#,2#,4#

main66310-05030-C0iADT27#,ZRT27#..WG200811-201505

BLACK,TRIM2#

main66310-05030-C1iWWT270,ZRT270,271..WG..N201505

EU BLACK,TRIM2#

main66310-05030-C1iWWT27#,ZRT27#..WG..(E,G)201505

EU BLACK,TRIM1#,2#,4#

main66310-05030-E0iADT27#,ZRT27#..WG..(E,G,V)200811-201111

GREGE,TRIM4#

81496AGUIDE, REAR COMBINATION LAMP

main81496-12030iADT27#,ZRT27#..WG200811-201505

90105W0061

main90105-W0061

9011906840

main90119-06840

90119W0099

main90119-W0099

90119W0181

main90119-W0181

90119W0195

main90119-W0195

90119W0235

main90119-W0235

91631B0616

main91631-B0616

91635G0616

main91635-G0616

9164180616

main91641-80616

9324056022

main93240-56022

56 parts on this diagram · 2 diagrams in section
