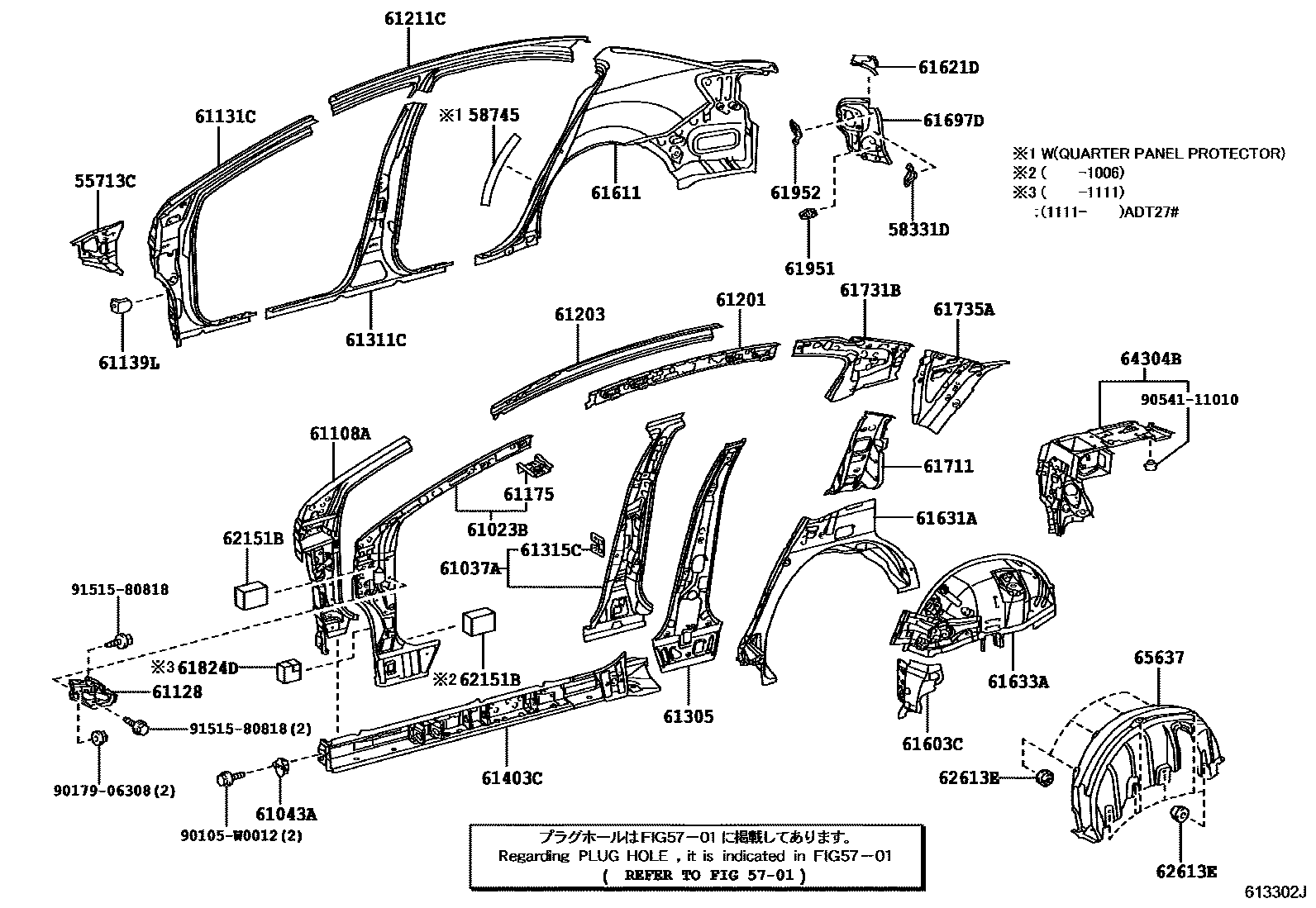

SIDE MEMBER

0001 1RH 0002 1LH 0003 1RH 0004 1LH

55713CPANEL, COWL TOP SIDE, RH

main55713-05020iADT27#,ZRT27#201111-201505

5701HOLE PLUG

→ Go to FIG 57-01

58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1

main58331-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

58745PROTECTOR, QUARTER PANEL, FRONT RH

main58741-05040iADT27#,ZRT27#201201-201505

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH

main61037-05060iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

61043AEXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER RH

main61043-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

61108AREINFORCE SUB-ASSY, FRONT BODY PILLAR, LOWER RH

main61108-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

61128REINFORCEMENT, COWL SIDE PANEL, RH

main61103-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

61131CPILLAR, FRONT BODY, OUTER RH

main61131-05050iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

61139LBRACKET, FRONT BODY PILLAR OUTER

main61139-05010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

61175REINFORCEMENT, FRONT BODY PILLAR, INNER NO.2 RH

main61175-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

61201RAIL SUB-ASSY, ROOF SIDE, RH

main61201-05040iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201111

main61201-05050iWWT27#,ZRT27#..WG201505

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-05040iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201111

main61203-05050iADT27#,ZRT27#..WG201111-201505

61211CRAIL, ROOF SIDE, RH

main61211-05070iADT27#,ZRT27#..SED201111-201505

main61211-05080iADT27#,ZRT27#..WG201111-201505

61305REINFORCE SUB-ASSY, CENTER BODY PILLAR, LOWER RH

main61305-05020iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

main61305-05021iWWT27#,ZRT27#201505

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

61315CRETAINER, DOOR LOCK STRIKER, RH

main61315-48010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

61403CREINFORCE SUB-ASSY, ROCKER, OUTER RH

main61403-05901iADT27#,ZRT27#200811-201006

main61403-05902iWWT27#,ZRT27#201505

61603CPANEL SUB-ASSY, QUARTER WHEEL HOUSE, RH

main61603-02020iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

61611PANEL, QUARTER, RH

main61601-05100iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201111

main61601-05110iWWT27#,ZRT27#..WG201505

61621DTROUGH, BACK DOOR OPENING, RH

main61033-05020iADT27#,ZRT27#..WG201111-201505

main61621-05060iWWT27#,ZRT27#..SED201505

61631APANEL, QUARTER WHEEL HOUSE, OUTER RH

main61605-05070iADT27#,ZRT27#..WG201111-201401

main61605-05071iWWT27#,ZRT27#..WG201505

main61605-05901iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201111

main61605-05902iADT27#,ZRT27#..SED201402-201505

61633APANEL, QUARTER WHEEL HOUSE, INNER RH

main61067-05901iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

61697DHOUSING, QUARTER PANEL END, RH

main61697-05060iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

61711PANEL, ROOF SIDE, OUTER RH

main61711-05070iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main61711-05080iADT27#,ZRT27#..WG201111-201505

61731BPANEL, ROOF SIDE, INNER RH

main61731-05080iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main61731-05090iADT27#,ZRT27#..WG201111-201505

61735APANEL, ROOF SIDE, INNER REAR RH

main61735-05080iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

61824DPLATE, NOISE CONTROL, NO.1

main61824-05050×2iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

61951BRACKET, SIDE TRIM, RH

main61951-05010iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)200811-201111

61952BRACKET, SIDE TRIM, RH

main61955-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

62151BPAD, COWL SIDE SILENCER

main62151-05020×4iADT27#,ZRT27#200811-201006

62613ECLIP (FOR QUARTER WHEEL HOUSE COVER)

main90467-06121×20iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main90467-06206-C0×20iADT27#,ZRT27#201105-201111

BLACK

64304BREINFORCE SUB-ASSY, PACKAGE TRAY BRACKET, RH

main64304-05050iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main64304-05051iADT27#,ZRT27#..SED201402-201405

main64304-05052iADT27#,ZRT27#..SED201406-201505

65637LINER, REAR WHEEL HOUSE, RH

main65637-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

90105W0012

main90105-W0012

9017906308

main90179-06308

9054111010

main90541-11010

9151580818

main91515-80818

39 parts on this diagram · 4 diagrams in section
