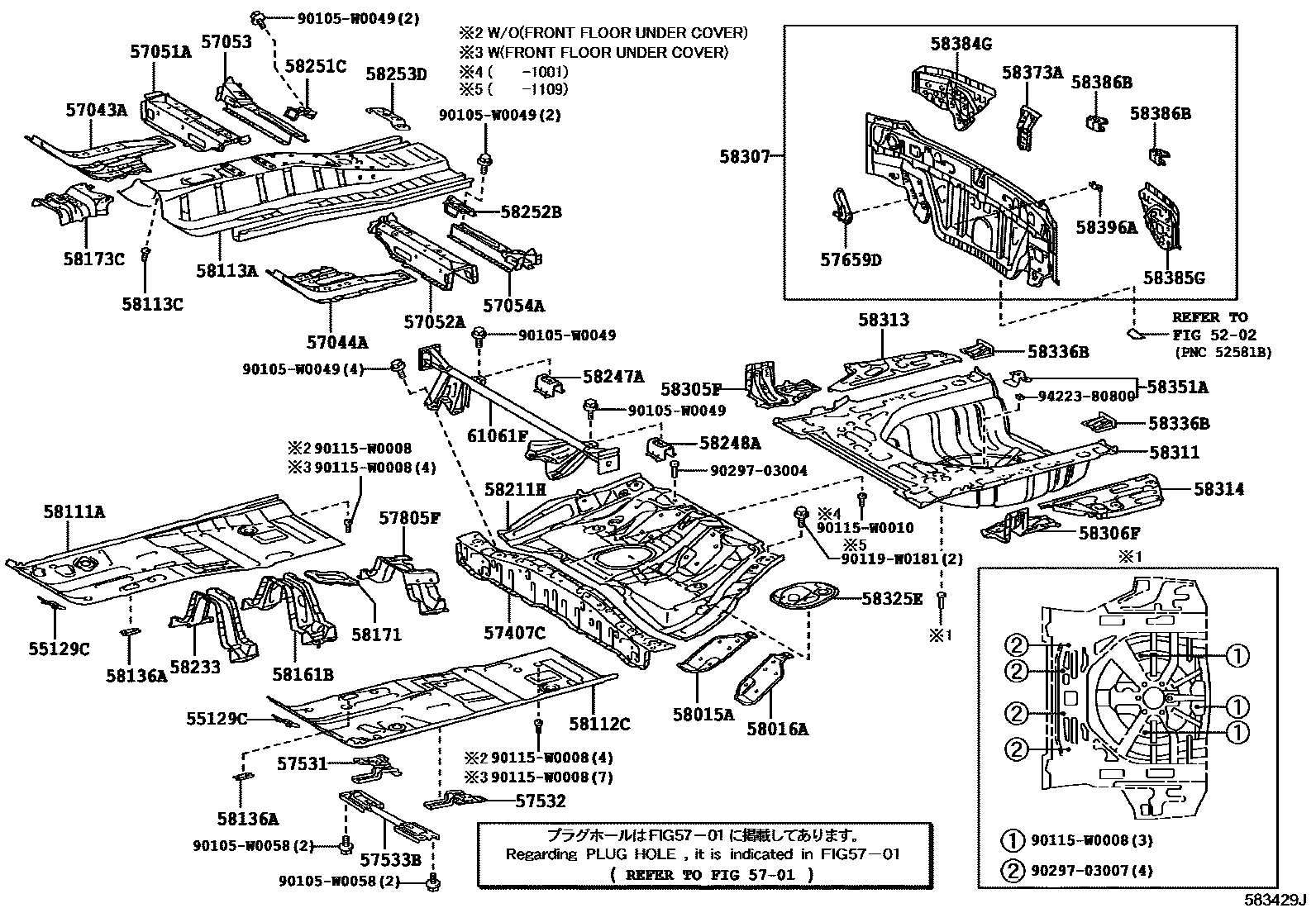

FLOOR PAN & LOWER BACK PANEL

0001 1FLOOR PAN & LOWER BACK PANEL 0002 1FLOOR PAN & LOWER BACK PANEL 0003 1FLOOR UNDER COVER

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

55129CCOVER, DASH PANEL HOLE

main55129-02030iADT27#,ZRT27#200811-201505

RH

main55139-02020iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

LH

5701HOLE PLUG

→ Go to FIG 57-01

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-02040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-02040iADT27#,ZRT27#200811-201505

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-02010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-02010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH

main57053-02010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH

main57054-02010iADT27#,ZRT27#200811-201505

57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1

main57407-02071iADT270..LHD..F;ZRT272..RHD..HTWC200811-201507

main57407-02072iWWT27#,ZRT27#201507

57531BRACKET, FRONT FLOOR CENTER BRACE, RH

main57531-02010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

57532BRACKET, FRONT FLOOR CENTER BRACE, LH

main57532-02010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

57533BBRACE, FRONT FLOOR, CENTER

main57501-02020iADT27#,ZRT27#200811-200910

main57501-02021iADT270..LHD..F;ZRT272..RHD..HTWC200911-201505

57659DBRACKET, EXHAUST PIPE MOUNTING, NO.4

main51904-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-02030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201210

main57805-02031iWWT27#,ZRT27#201210-201505

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-02061iADT27#,ZRT27#200811-201004

main58015-02160iADT270..LHD..F;ZRT272..RHD..HTWC201005-201311

main58015-02161iADT27#,ZRT27#201311-201505

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58016-02031iADT27#,ZRT27#200811-201004

main58016-02140iADT270..LHD..F;ZRT272..RHD..HTWC201005-201311

main58016-02141iADT27#,ZRT27#201311-201505

58111APAN, FRONT FLOOR, RH

main58111-05903iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58112CPAN, FRONT FLOOR, LH

main58112-05901iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58113APANEL, FRONT FLOOR, CENTER

main58113-05901iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58113CBOLT, WELD(FOR FRONT FLOOR PANEL, CENTER)

main90115-W0010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-02030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-02040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-02040iWWT27#,ZRT27#200811-201505

58173CBRACKET, WIRING HARNESS PROTECTOR

main58173-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58211HPAN, CENTER FLOOR

main58211-02907iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58233BRACKET, EXHAUST PIPE MOUNTING

main58203-02020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58247AREINFORCEMENT, REAR SEAT CUSHION HINGE, RH

main58247-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58248AREINFORCEMENT, REAR SEAT CUSHION HINGE, LH

main58247-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58251CBRACE, FLOOR PANEL, FRONT RH

main58251-02030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58252BBRACE, FLOOR PANEL, FRONT LH

main58252-02010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58253DBRACKET, PARKING BRAKE CABLE

main58253-02020iWWT27#,ZRT27#200811-201505

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-02010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH

main58306-02010iWWT27#,ZRT27#200811-201505

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-05090iADT27#,ZRT27#..SED200811-201505

main58307-05100iADT27#,ZRT27#..WG200811-201505

58311PAN, REAR FLOOR

main58311-05060iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58313PANEL, REAR FLOOR SIDE, RH

main58313-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58314PANEL, REAR FLOOR SIDE, LH

main58314-05050iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-02080iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-02050iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

58351ABRACKET, SPARE WHEEL CARRIER

main58351-02020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58373ARETAINER, LUGGAGE COMPARTMENT DOOR LOOK STRIKER

main58309-05070iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

58384GGUSSET, LOWER BACK, UPPER RH

main58384-05050iADT27#,ZRT27#..SED200811-201505

main58384-05060iADT27#,ZRT27#..WG200811-201505

58385GGUSSET, LOWER BACK, UPPER LH

main58385-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

main58385-05040iWWT27#,ZRT27#..WG200811-201505

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-02010iWWT27#,ZRT27#200811-201505

58396ABRACKET, WIRE HARNESS CLAMP

main82715-05440iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

61061FGUSSET SUB-ASSY, QUARTER WHEEL HOUSE, NO.1

main61063-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

90105W0049

main90105-W0049

90105W0058

main90105-W0058

90115W0008

main90115-W0008

90115W0010

main90115-W0010

90119W0181

main90119-W0181

9029703004

main90297-03004

9029703007

main90297-03007

9422380800

main94223-80800

55 parts on this diagram · 3 diagrams in section
