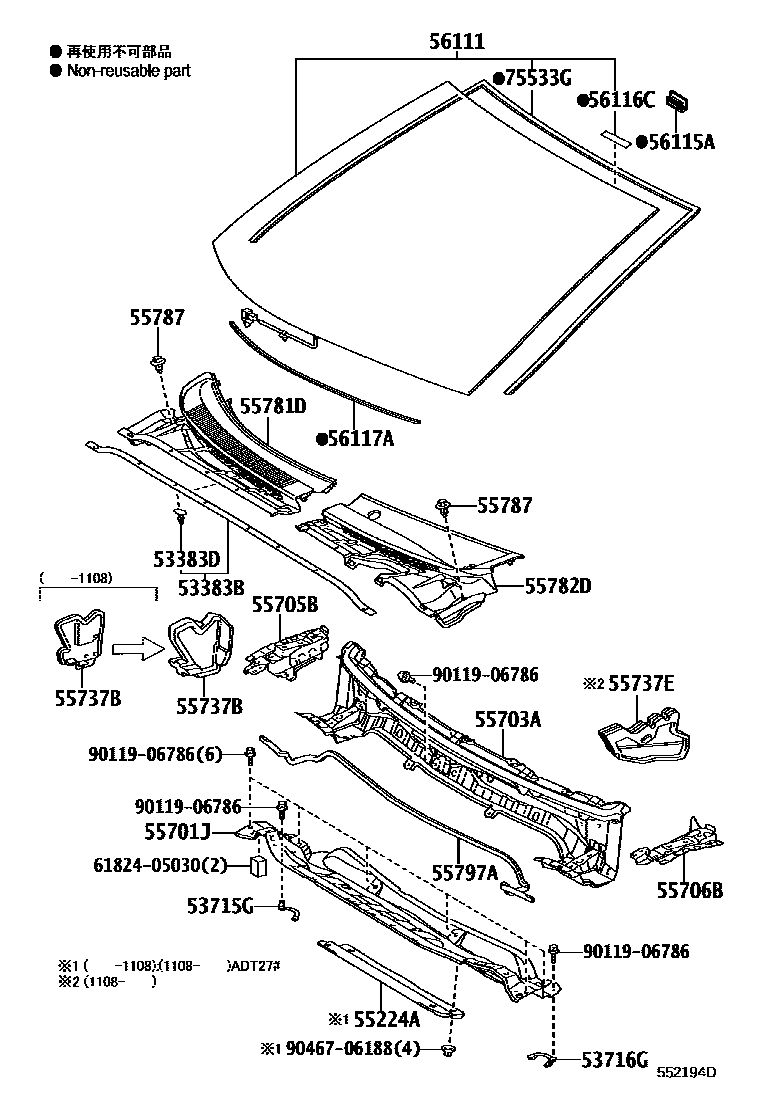

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
main53383-05050iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111
53383DCLIP(FOR HOOD TO COWL TOP SEAL)
53715GEXTENSION, FRONT FENDER APRON, REAR RH
53716GEXTENSION, FRONT FENDER APRON, REAR LH
55224AINSULATOR, DASH PANEL, OUTER NO.2
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55703APANEL SUB-ASSY, COWL TOP, INNER
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
COLD AREA SPEC
55737ESEAL, HEATER AIR DUCT SPLASH SHIELD, NO.2
COLD AREA SPEC
55781DLOUVER, COWL TOP VENTILATOR, RH
COLD AREA SPEC
COLD AREA SPEC
55782DLOUVER, COWL TOP VENTILATOR, LH
COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC
55787CLIP, COWL VENTILATOR LOUVER, INNER
BLACK
BLACK
55797ASEAL, COWL WATER EXTRACT
56111GLASS, WINDSHIELD
*LAM,T=4.56,GREEN
PRE-COLLISION SYSTEM-WITHOUT
*LAM,T=4.56,GREEN
*LAM,T=4.56,GREEN
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&LIGHT CONTROL SYSTEM-WITHOUT
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&LIGHT CONTROL SYSTEM-WITHOUT
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&LIGHT CONTROL SYSTEM-WITHOUT
*LAM,T=4.56,GREEN,OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER)
*LAM,T=4.56,GREEN,CRUISE CONTROL-WITH(W/RADAR CRUISE)&HEADLAMP-DISCHARGE & AFS&AUDIO-DISPLAY AUDIO & 11SPEAKER; *LAM,T=4.56,GREEN,CRUISE CONTROL-WITH(W/RADAR CRUISE)&HEADLAMP-DISCHARGE & AFS&AUDIO-DISPLAY AUDIO & 11SPEAKER & DAB
*LAM,T=4.56,GREEN,WITH(WIND SHIELD GLASS DEICER)&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER)
main56101-05360iADT27#,ZRT27#..LHD..(E,F)..(DCR,HTWVM); ADT271,ZRT272..LHD..(CVT,MTM)..(G,V)200811-200905
*LAM,T=4.56,GREEN,BASE PACKAGE&WITH(WIND SHIELD GLASS DEICER); *LAM,T=4.56,GREEN,BASE PACKAGE&WITH(WIND SHIELD GLASS DEICER)&OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER)
main56101-05361iADT27#,ZRT27#..LHD..(E,N)..(DCR,HTWVM); ADT271,ZRT272..LHD..(CVT,MTM)..(G,V); ADT271..LHD..6FC..G; ADT271..LHD..6FC..V201109-201111
*LAM,T=4.56,GREEN,BASE PACKAGE&WITH(WIND SHIELD GLASS DEICER)&CRUISE CONTROL-WITHOUT&LIGHT CONTROL SYSTEM-WITHOUT&INSIDE REAR VIEW MIRROR-MECHANICAL TYPE; *LAM,T=4.56,GREEN,BASE PACKAGE&WITH(WIND SHIELD GLASS DEICER)&LIGHT CONTROL SYSTEM-WITHOUT&INSIDE REAR VIEW MIRROR-MECHANICAL TYPE; *LAM,T=4.56,GREEN,WITH(WIND SHIELD GLASS DEICER); *LAM,T=4.56,GREEN,WITH(WIND SHIELD GLASS DEICER)&LIGHT CONTROL SYSTEM-WITHOUT&INSIDE REAR VIEW MIRROR-MECHANICAL TYPE
*LAM,T=4.56,GREEN,WITH(WIND SHIELD GLASS DEICER)&CRUISE CONTROL-WITH(W/RADAR CRUISE)
*LAM,T=4.56,GREEN,PREMIUM GRADE&WITH(WIND SHIELD GLASS DEICER)&CRUISE CONTROL-WITH(W/RADAR CRUISE); *LAM,T=4.56,GREEN,WITH(WIND SHIELD GLASS DEICER)&CRUISE CONTROL-WITH(W/RADAR CRUISE)
*LAM,T=4.56,GREEN,WITH(WIND SHIELD GLASS DEICER)&LIGHT CONTROL SYSTEM-WITH(AUTO)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY
main56101-05381iADT270,ZRT271..LHD..E; ADT271,ZRT270,272..LHD..E..(DCR,HTWVM); ADT271,ZRT272..LHD..(G,V)201109-201111
*LAM,T=4.56,GREEN,WITH(WIND SHIELD GLASS DEICER); *LAM,T=4.56,GREEN,WITH(WIND SHIELD GLASS DEICER)&LIGHT CONTROL SYSTEM-WITH(AUTO); *LAM,T=4.56,GREEN,WITH(WIND SHIELD GLASS DEICER)&LIGHT CONTROL SYSTEM-WITH(AUTO)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; *LAM,T=4.56,GREEN,WITH(WIND SHIELD GLASS DEICER)&LIGHT CONTROL SYSTEM-WITH(AUTO)&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY
*LAM,T=4.56,GREEN,OUTSIDE REAR VIEW MIRROR-MANUAL RETRACTABLE(COLORED),W(HEATER)
*LAM,T=4.56,GREEN,CRUISE CONTROL-WITH(W/RADAR CRUISE)&HEADLAMP-DISCHARGE & AFS&AUDIO-DISPLAY AUDIO & 11SPEAKER
BASE PACKAGE&WINTER PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&LIGHT CONTROL SYSTEM-WITHOUT; WINTER PACKAGE
WINTER PACKAGE
BASE PACKAGE&WINTER PACKAGE&PRE-COLLISION SYSTEM-WITHOUT&INTERMITTENT WIPER-TIME ADJUSTMENT&LIGHT CONTROL SYSTEM-WITHOUT; WINTER PACKAGE&PRE-COLLISION SYSTEM-WITHOUT
WINTER PACKAGE&PRE-COLLISION SYSTEM-WITHOUT
BASE PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&LIGHT CONTROL SYSTEM-WITHOUT
BASE PACKAGE&WINTER PACKAGE&INTERMITTENT WIPER-TIME ADJUSTMENT&LIGHT CONTROL SYSTEM-WITHOUT; WINTER PACKAGE
WINTER PACKAGE
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
main56116-22050×2iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111
56117ADAM, WINDOW GLASS ADHESIVE
L=1277; L=1277,WITH(WIND SHIELD GLASS DEICER)
75533GMOULDING, WINDSHIELD, OUTSIDE
6182405030PLATE, NOISE CONTROL, NO.1
main61824-05030
9011906786
main90119-06786
9046706188
main90467-06188
23 parts on this diagram · 4 diagrams in section
