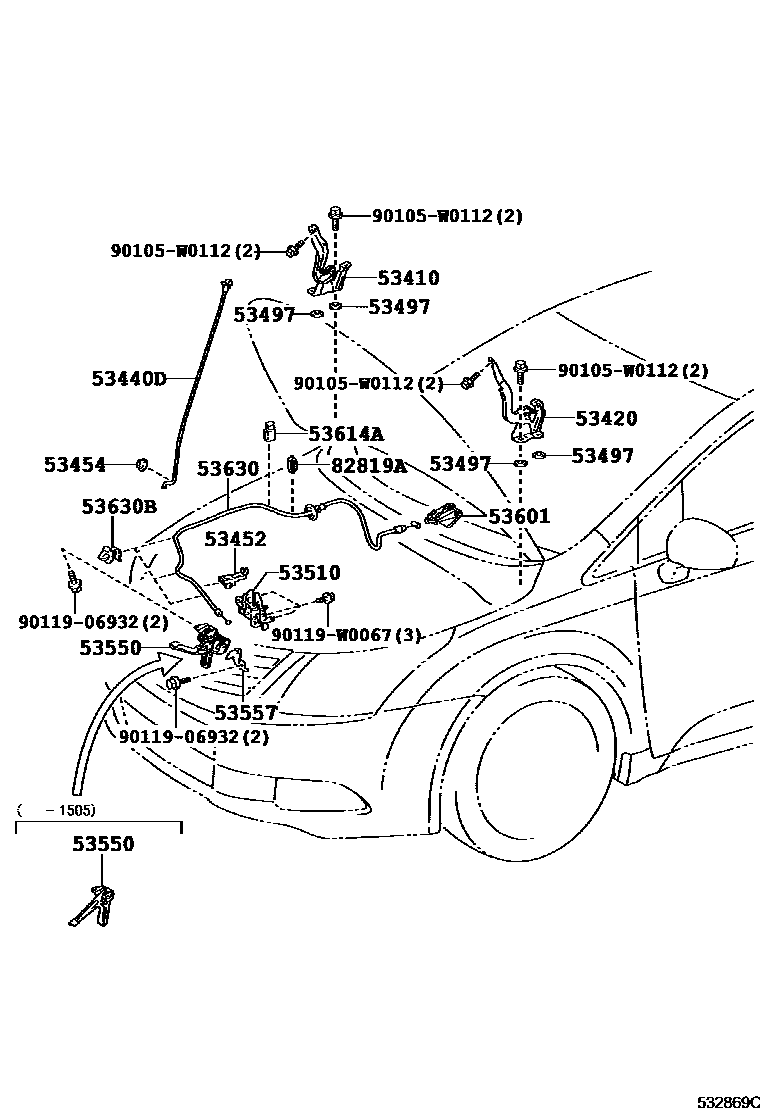

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-05040iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main53410-05080iWWT27#,ZRT27#201505

53420HINGE ASSY, HOOD, LH

main53420-05040iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

main53420-05080iWWT27#,ZRT27#201505

53440DSUPPORT ASSY, HOOD

main53440-05030iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

53452HOLDER, HOOD STAY

main53452-05010iADT27#,ZRT27#201111-201505

53454CLIP, HOOD SUPPORT ROD

main53454-52010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

53497PAD, HOOD HINGE, NO.1

main53497-05010×4iADT27#,ZRT27#201111-201505

T=1.0

main53497-0D030×4iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

T=1.5

53510LOCK ASSY, HOOD

main53510-05090iADT270,ZRT270,271..N;ADT27#,ZRT27#..LHD..(E,G,V)200811-201105

main53510-05091iZRT271..LHD..CVT;ZRT270,271..6F..N;ZRT270,272..LHD..(E,G);ZRT271..LHD..6F..(E,G)201505

main53510-05100iADT27#,ZRT27#..RHD..(E,F,G,V)..(DCR,DCRL,HTWVM); ADT270,ZRT270,271..RHD..N200811-201105

ENGLAND SPEC; MALTA SPEC

main53510-05101iADT27#,ZRT27#..RHD..(E,F,G,V); ADT270,ZRT270,271..RHD..N201106-201111

ENGLAND SPEC; MALTA SPEC

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

main53550-05020iWWT27#,ZRT27#201505

53557CATCH, HOOD AUXILIARY HOOK

main53557-05010iADT27#,ZRT27#201111-201505

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-05030-C0iADT270,ZRT270,271..N; ADT270..RHD..(E,F);ADT270,ZRT272..LHD..E..(DCR,HTWC);ADT271,ZRT27#..(E,G,V)..(DCR,DCRL,HTWVM)200811-201111

BLACK,TRIM2#; BLACK,TRIM2#,4#

main53601-05030-C1iWWT27#,ZRT27#..E,G; WWT270,ZRT270,271..N201505

EU BLACK,TRIM1#,2#,4#; EU BLACK,TRIM2#

53614ACLAMP, HOOD LOCK CONTROL CABLE, NO.1

main53614-05010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-05060iADT27#,ZRT27#..LHD..(E,G,N,V)200811-201111

main53630-05070iADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM)200811-201111

main53630-05080iADT27#,ZRT27#..LHD201208-201505

main53630-05090iADT27#,ZRT27#..RHD201208-201505

53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)

main90469-06005×3iADT270..LHD..F;ZRT272..RHD..HTWC200811-201104

82819AGROMMET, WIRE

main82817-02720×2iWWT27#,ZRT27#201505

main82817-1A810×2iADT27#,ZRT27#201111-201401

90105W0112

main90105-W0112

9011906932

main90119-06932

90119W0067

main90119-W0067

17 parts on this diagram · 1 diagram in section
