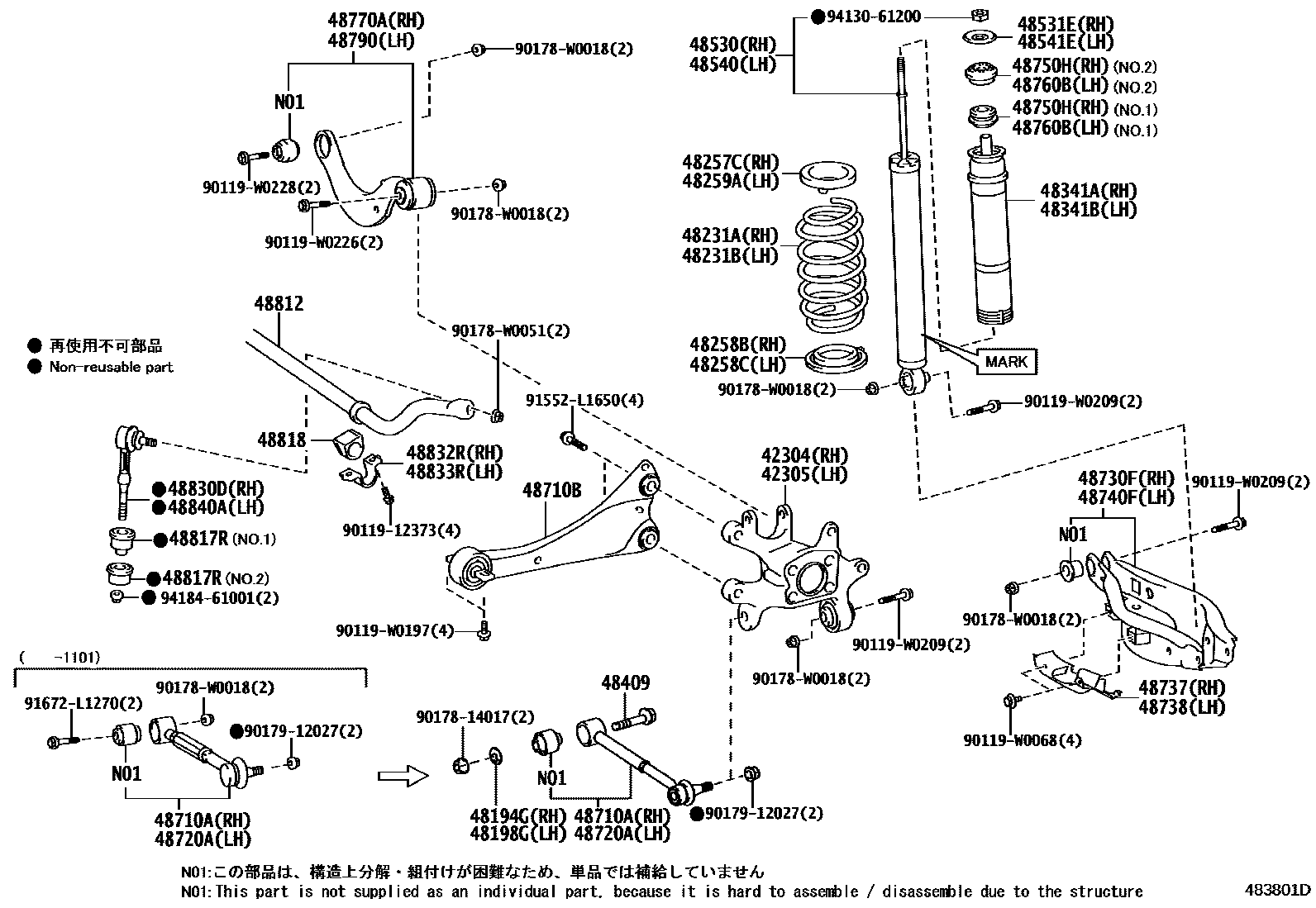

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-05140iADT27#,ZRT27#200811-201001

main42304-05141iADT27#,ZRT27#201001-201505

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-05140iADT27#,ZRT27#200811-201001

main42305-05141iADT270..LHD..F;ZRT272..RHD..HTWC201001-201505

48194GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 RH

main48198-42010iADT270..LHD..F;ZRT272..RHD..HTWC201101-201505

48198GCAM, REAR SUSPENSION CAMBER ADJUST, NO.1 LH

main48198-42010iADT270..LHD..F;ZRT272..RHD..HTWC201101-201505

48231ASPRING, COIL, REAR RH

main48231-05460iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

main48231-05500iADT27#,ZRT27#..WG200811-201505

main48231-05530iWWT27#,ZRT27#..SED201505

main48231-05540iWWT27#,ZRT27#..WG201505

48231BSPRING, COIL, REAR LH

main48231-05460iADT27#,ZRT27#..SED200811-201505

main48231-05500iADT27#,ZRT27#..WG200811-201505

main48231-05530iWWT27#,ZRT27#..SED201505

main48231-05540iWWT27#,ZRT27#..WG201505

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-05020iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-05020iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-02080iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-02080iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-42030iADT27#,ZRT27#201101-201505

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09Q50iADT27#,ZRT27#..SED200811-201007

MARK 48530-05370

main48530-09Q51iADT27#,ZRT27#..SED201007-201102

MARK 48530-05371

main48530-09Q70iADT27#,ZRT27#..WG200811-201007

MARK 48530-05410

main48530-09Q71iADT27#,ZRT27#..WG201007-201102

MARK 48530-05411

main48530-09U30iADT270..LHD..F;ZRT272..RHD..HTWC201102-201111

MARK 48530-05372

main48530-09U40iADT27#,ZRT27#..WG201102-201111

MARK 48530-05412

main48530-09U90iADT27#,ZRT27#..SED201111-201505

MARK 48530-05373

main48530-09V10iADT27#,ZRT27#..WG201111-201505

MARK 48530-05413

main48530-8Z017iWWT27#,ZRT27#..SED201505

MARK 48530-05430

main48530-8Z018iWWT27#,ZRT27#..WG201505

MARK 48530-05441

48531ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER RH)

main90948-02159iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-09Q50iADT27#,ZRT27#..SED200811-201007

MARK 48530-05370

main48530-09Q51iADT27#,ZRT27#..SED201007-201102

MARK 48530-05371

main48530-09Q70iADT27#,ZRT27#..WG200811-201007

MARK 48530-05410

main48530-09Q71iADT27#,ZRT27#..WG201007-201102

MARK 48530-05411

main48530-09U30iADT270..RHD..SED;ADT271,ZRT27#..SED..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..SED..(E,N)..(DCR,HTWC)201102-201111

MARK 48530-05372

main48530-09U40iADT27#,ZRT27#..WG201102-201111

MARK 48530-05412

main48530-09U90iADT27#,ZRT27#..SED201111-201505

MARK 48530-05373

main48530-09V10iADT27#,ZRT27#..WG201111-201505

MARK 48530-05413

main48530-8Z017iWWT27#,ZRT27#..SED201505

MARK 48530-05430

main48530-8Z018iWWT27#,ZRT27#..WG201505

MARK 48530-05441

48541ERETAINER, CUSHION, NO.1(FOR REAR SHOCK ABSORBER LH)

main90948-02159iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-05080iADT27#,ZRT27#200811-201101

main48710-05090iADT270..LHD..F;ZRT272..RHD..HTWC201101-201505

48710BARM ASSY, TRAILING, REAR

main48760-02011iADT27#,ZRT27#201209-201505

RH

main48760-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201209

RH

main48780-02061iADT27#,ZRT27#201209-201505

LH

main48780-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201209

LH

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-05080iADT27#,ZRT27#200811-201101

main48710-05090iADT270..LHD..F;ZRT272..RHD..HTWC201101-201505

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-05070iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48737COVER, REAR SUSPENSION ARM, RH

main48737-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48738COVER, REAR SUSPENSION ARM, LH

main48738-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-05060iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48755-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

NO.1

main48755-05030iWWT27#,ZRT27#200811-201505

NO.2

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48755-05020iADT27#,ZRT27#200811-201505

NO.1

main48755-05030iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201505

NO.2

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-12010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48790ARM ASSY, UPPER CONTROL, REAR LH

main48770-12010iADT27#,ZRT27#200811-201505

48812BAR, STABILIZER, REAR

main48812-05160iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main48812-05170iADT27#,ZRT27#201111-201505

48817RCUSHION, STABILIZER(FOR REAR)

main48817-05010iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

NO.1

main48817-05020iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

NO.2

48818BUSH, STABILIZER, REAR

main48818-05120iADT270..LHD..F;ZRT272..RHD..HTWC200811-201111

main48818-05130iADT27#,ZRT27#201111-201505

48830DLINK ASSY, REAR STABILIZER, RH

main48830-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48832RBRACKET, REAR STABILIZER BAR, NO.1 RH

main48832-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48833RBRACKET, REAR STABILIZER BAR, NO.1 LH

main48832-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

48840ALINK ASSY, REAR STABILIZER, LH

main48830-05030iADT270..LHD..F;ZRT272..RHD..HTWC200811-201505

9011912373

main90119-12373

90119W0068

main90119-W0068

90119W0197

main90119-W0197

90119W0209

main90119-W0209

90119W0226

main90119-W0226

90119W0228

main90119-W0228

9017814017

main90178-14017

90178W0018

main90178-W0018

90178W0051

main90178-W0051

9017912027

main90179-12027

91552L1650

main91552-L1650

91672L1270

main91672-L1270

9413061200

main94130-61200

9418461001

main94184-61001

49 parts on this diagram · 1 diagram in section
