SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

3307GEAR SHIFT FORK & LEVER SHAFT (MTM)

→ Go to FIG 33-07

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-05050iWWT27#,ZRT270,271..6F201505-201605

main33504-05051-C0iWWT27#,ZRT270,271..6F..(E,G)201605

BLACK,TRIM1#,2#,4#

main33504-05051-C0iWWT27#,ZRT270,271..6F..(E,G)201605

BLACK,TRIM2#

main33504-05080-C0iADT270,ZRT270,271..6F..N200811-201001

BLACK,TRIM2#

main33504-05081-C0iADT270,ZRT270,271..6F..N201002-201210

BLACK,TRIM2#

main33504-05081-C2iADT270,ZRT270,271..6F..N201210-201505

BLACK & 21GY18,TRIM2#

main33504-05090-C0iADT27#,ZRT27#..6F..(E,F,G,V)200811-201001

BLACK,TRIM2#,4#

main33504-05091-C0iADT270..RHD..F;ADT271,ZRT270..E;ZRT272..LHD..6F..E..HTWVM201002-201111

BLACK,TRIM2#

main33504-05091-C0iADT270..LHD..F201002-201111

BLACK,TRIM2#,4#

main33504-05091-C0iADT27#,ZRT27#..6F..(E,G)201111-201505

BLACK,TRIM1#,2#,4#

main33504-20260-C0iZRT271..CVT..N200905-201505

BLACK,TRIM2#

main33504-20290-C0iADT271,ZRT271,272..(ATM,CVT)..(E,G,V)200811-201006

BLACK,TRIM2#,4#

main33504-20290-C1iZRT272..LHD..CVT..E201006-201111

BLACK & GRAY,TRIM2#

main33504-20290-C1iZRT272..CVT..G;ZRT272..RHD..CVT;ZRT272..LHD..4FC;ADT271,ZRT271..(ATM,CVT)..(E,G,V)201006-201111

BLACK & GRAY,TRIM2#,4#

main33504-20290-C1iADT271,ZRT271,272..(ATM,CVT)..(E,G)201111-201505

BLACK & GRAY,TRIM1#,2#,4#

main33504-20291-C3iZRT272..E..HTWVM201505

BLACK & BLACK,TRIM1#,4#

main33504-20291-C3iZRT272..E..HTWVM201505

BLACK & BLACK,TRIM2#

main33504-20291-C3iZRT272..E..HTWVM201505

BLACK & BLACK,TRIM1#,2#,4#

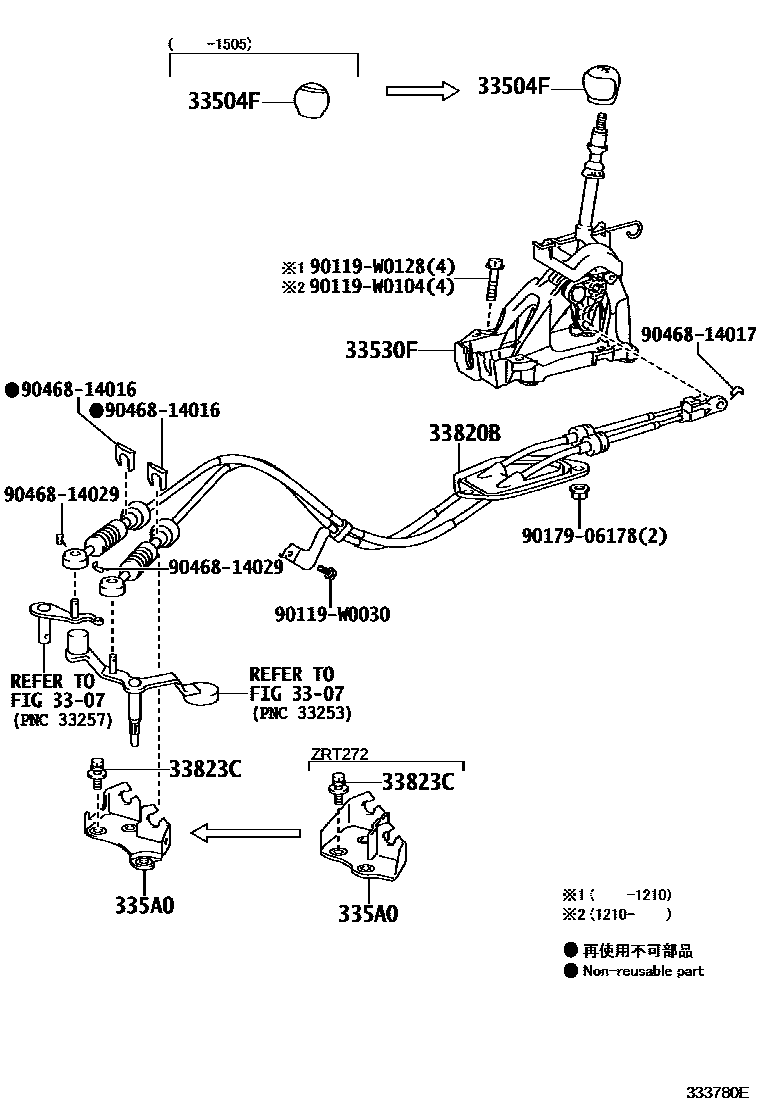

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-05110iADT270..LHD..F;ZRT272..RHD..6F..HTWC200811-201505

335A0BRACKET ASSY, CONTROL CABLE

main335A0-0D010iZRT270,271..6F201505

main335A0-0D010iZRT270,271..6F201105-201505

*202

main335A0-20010iZRT271..6F;ZRT270..SED;ZRT270..LHD..WG..N200905-201105

*202

main335A0-20010iZRT270,271..6F200811-201306

*201

main335A0-42020iZRT272..RHD..6F..HTWC200811-201505

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-05310iWWT27#201505-201802

main33820-05311iWWT27#201803

main33820-05350iADT271..6F;ADT270..RHD;ADT270..LHD..(E,N)200811-201505

main33820-05360iZRT272..RHD..6F..HTWC200811-201802

main33820-05361iZRT270,271..6F201803

main33820-12G11iZRT271..CVT201505

main33820-20A40iADT271..6FC200902-201505

main33820-20A50iZRT271..CVT200811-201505

main33820-20A60iZRT272..CVT200811-201505

main33820-20A80iZRT272..HTWC200811-201505

main33820-20B10iZRT272..HTWVM201505

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-12190iZRT271..CVT200811-201505

main33823-12290iZRT272..CVT200811-201505

main33823-12320iZRT272..RHD..4FC200811-201505

main33823-12330iADT271..6FC200902-201505

main33823-28300iZRT272..HTWVM201505

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08C60iZRT270,271..6F200811-201306

*201

main90119-08C60iZRT272..RHD..6F..HTWC200811-201508

main90119-08C60iZRT270..RHD..WG;ZRT270..LHD..WG..E200905-201111

*202

main90119-08C60iZRT270,271..6F201508

(J)

main90119-W0027iZRT271,272..ATM,CVT200811-201505

main90119-W0255iZRT270,271..6F201508

(L)

main91611-G0820iADT271..6F;ADT270..RHD;ADT270..LHD..(E,N)200811-201505

90119W0030

main90119-W0030

90119W0104

main90119-W0104

90119W0128

main90119-W0128

9017906178

main90179-06178

9046814016

main90468-14016

9046814017

main90468-14017

9046814029

main90468-14029

14 parts on this diagram · 8 diagrams in section
