FUEL FILTER

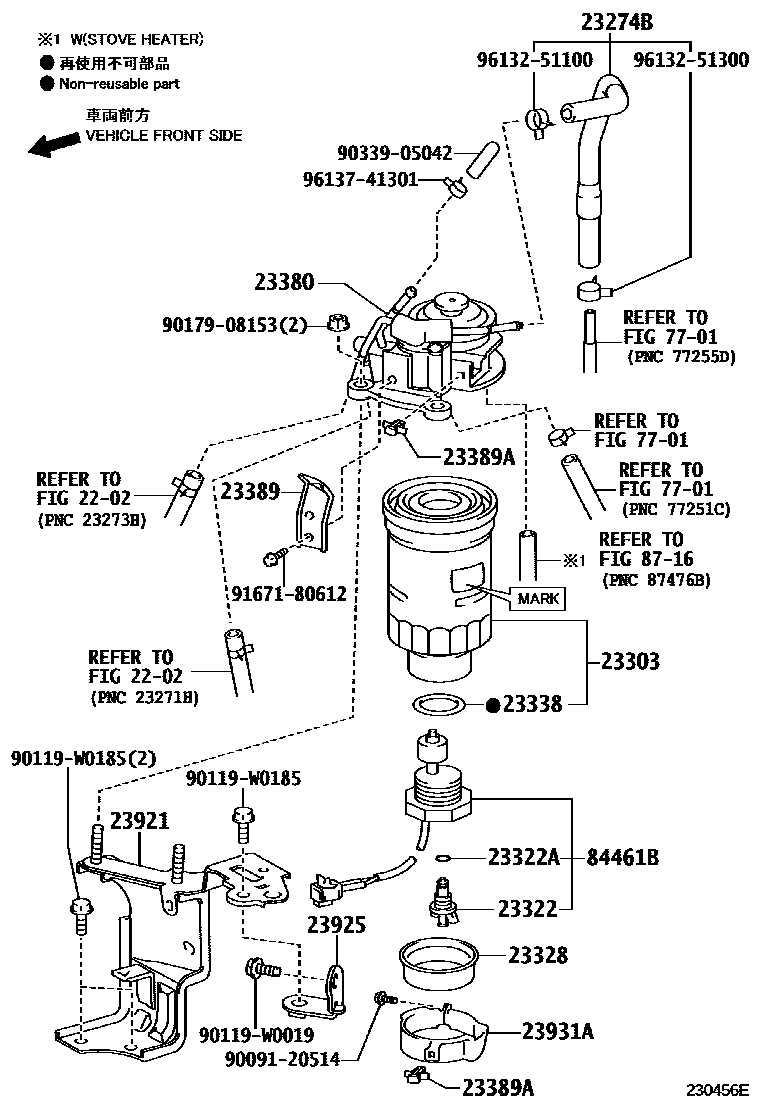

Parts diagram

2202INJECTION PUMP ASSEMBLY

→ Go to FIG 22-02

23274BHOSE, FUEL, NO.3

main23274-0T010i201207

main23274-0X010i201505-201708

main23274-0X011i201708

main23274-26060i200811-201111

23303ELEMENT SUB-ASSY, FUEL FILTER

main23390-26160i201005-201110

MARK 23390-26160

main23390-33060i200811-201005

MARK 23390-33060

main23390-26280i200910-201111

ALGERIA SPEC,MARK 23390-26280

23322PLUG, DRAIN(FOR FUEL FILTER)

main23388-64470i200811

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i200811

23328GASKET(FOR FUEL FILTER)

main23385-0X010i201505-201708

main23385-26020i200811-201005

main23385-30160i201005-201111

23338GASKET(FOR WARNING SWITCH)

main23344-64010i201111

23380CAP ASSY, FUEL FILTER

main23380-0R051i201111-201302

main23380-0R052i201302-201305

main23380-26171i201305

main23380-0R061i201111-201302

HEATER-WITH(STOVE HEATER)

main23380-0R062i201302-201305

HEATER-WITH(STOVE HEATER)

main23380-26161i201305

HEATER-WITH(STOVE HEATER)

23389CLAMP, FUEL FILTER

main23389-17530×2i201708

main23389-26130i200811-201111

23389ACLAMP, FUEL FILTER

main23389-27130×2i200811-201111

23921SUPPORT, FUEL FILTER

main23921-0R010i200811-201104

main23921-0X010i201505

23925STAY, FUEL FILTER SUPPORT

main23925-0R010i200811-201104

23931ACOVER, FUEL FILTER

main23931-26020i200811-201005

main23931-26030i201005-201111

main23931-26031i201302

7701FUEL TANK & TUBE

→ Go to FIG 77-01

84461BSWITCH, LEVEL WARNING

main84461-60080i200811-201109

main84461-60081i201110-201111

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9009120514

main90091-20514

90119W0019

main90119-W0019

90119W0185

main90119-W0185

9017908153

main90179-08153

9033905042

main90339-05042

9167180612

main91671-80612

9613251100

main96132-51100

9613251300

main96132-51300

9613741301

main96137-41301

25 parts on this diagram · 3 diagrams in section
