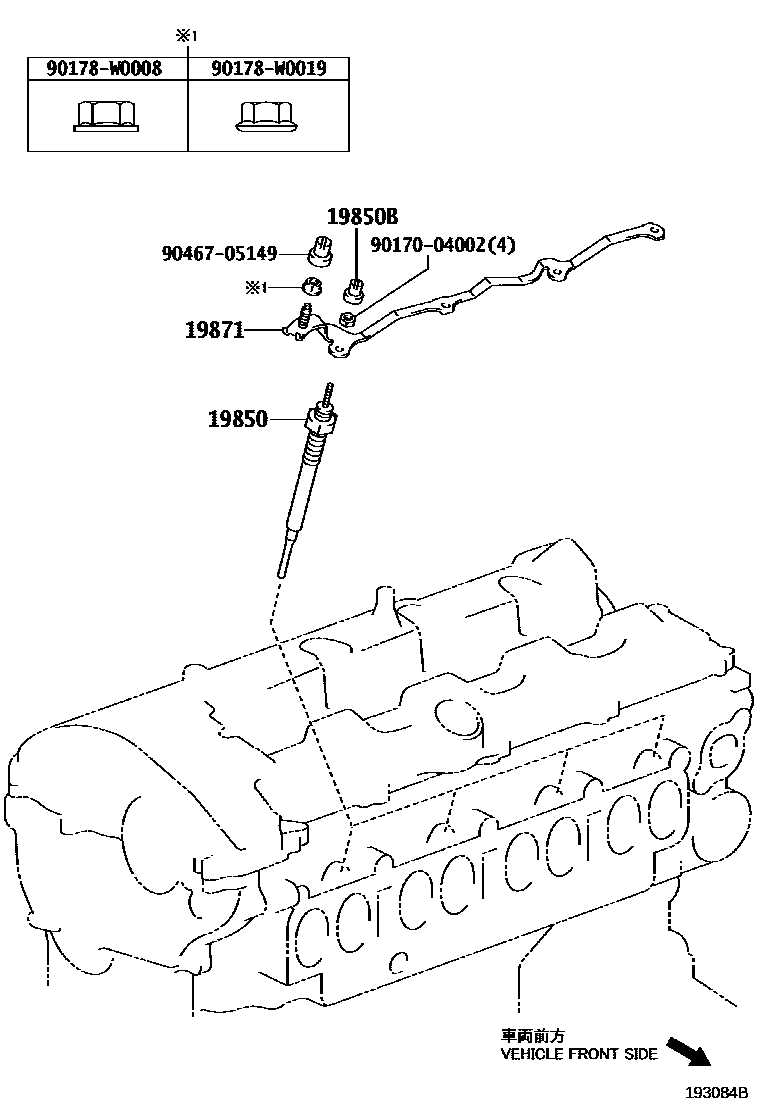

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1 0003 1 0004 1

19850PLUG ASSY, GLOW

main19850-0R022×4i1ADFTV,2AD#..ADT27#200811-201107

*BV-GV=12V-11V,(L),*119,(L),*145

main19850-26022×4i1ADFTV,2AD#..ADT27#200811-201107

*BV-GV=12V-11V,(J),*119,(J),*145

main19850-26030×4i1ADFTV..ADT270201111

*BV-GV=12V-11V

main19850-WA020×4i1WW,2WW..WWT27#201505-201804

19850BGROMMET, SCREW(FOR GLOW PLUG)

main90189-04024×4i1ADFTV,2AD#..ADT27#201111

19871CONNECTOR, GLOW PLUG NO.1

main19871-0R010i1ADFTV..ADT270201111

main19871-26010i1ADFTV..ADT270..SED; 2AD#..ADT271201111

ENGINE-1AD-FTV&EXHAUST EMISSION CONTROL-EUROPE STEP4,WITHOUT(OBD)

9017004002

main90170-04002

90178W0008

main90178-W0008

90178W0019

main90178-W0019

9046705149

main90467-05149

7 parts on this diagram · 4 diagrams in section
