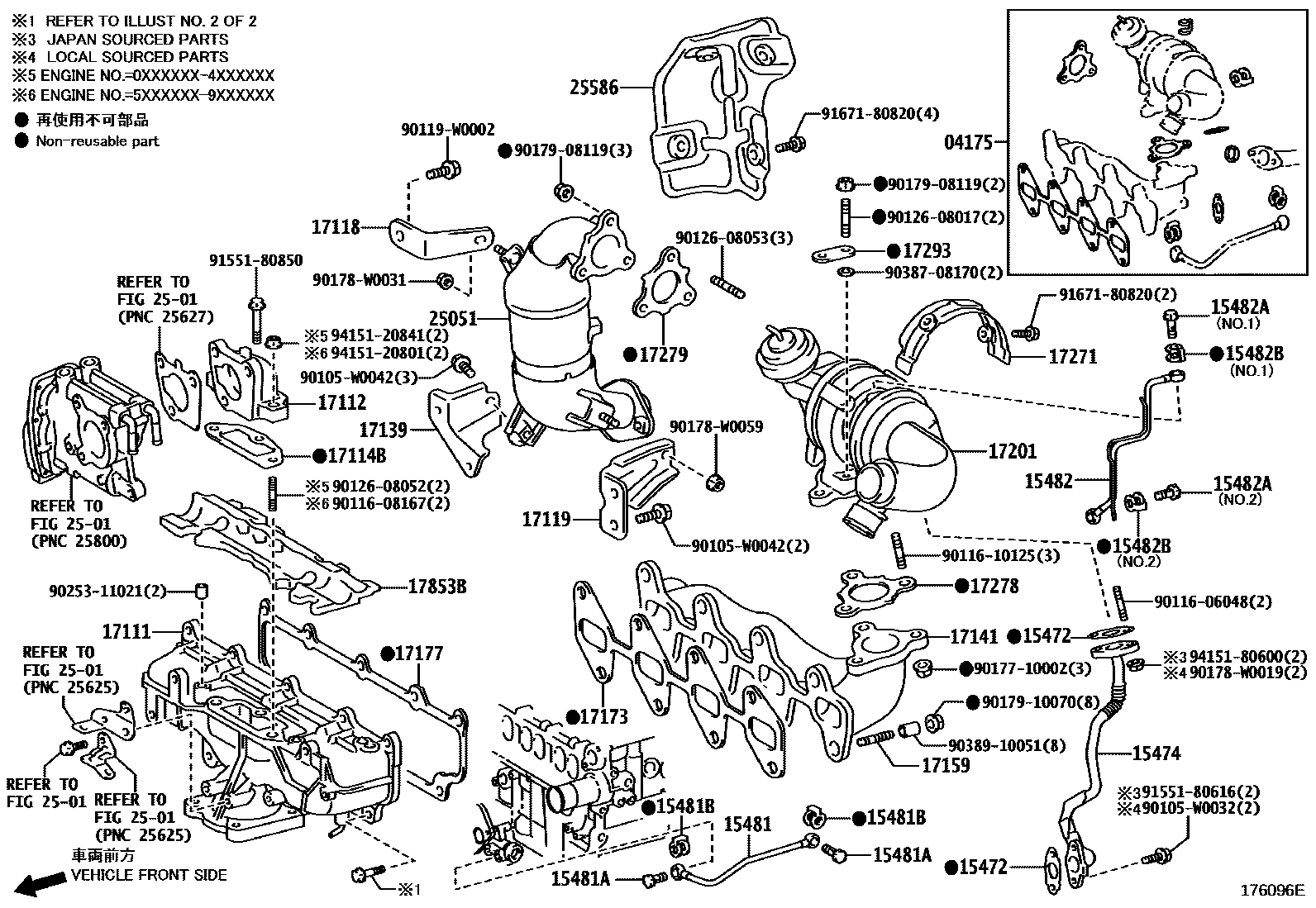

MANIFOLD
04175GASKET KIT, TURBOCHARGER
main04175-0R100supersedes 04175-0R080i1ADFTV..ADT270..E,N; 2ADFTV..ADT271;2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G200811-201111
ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD)
15472GASKET, TURBO OIL OUTLET, NO.1
(L),*119,*145
main15472-26010×2i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111
(J),*119
15474PIPE, TURBO OIL OUTLET
*145,*119
15481PIPE, TURBO OIL, NO.1
*119
15481ABOLT, UNION, NO.1
*145,*119
15481BGASKET(FOR UNION BOLT NO.1)
*145,*119
15482PIPE, TURBO OIL, NO.2
*145
main15482-26030i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111
*119
15482ABOLT, UNION, NO.2
NO.1
*145,NO.1,*119,NO.1
main90401-12039i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111
*145,NO.2,*119,NO.2
15482BGASKET(FOR UNION BOLT NO.2)
ENGINE-1AD-FTV,NO.2; NO.2
ENGINE-1AD-FTV,NO.1; NO.1
17111MANIFOLD, INTAKE
main17101-0R020i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111
*145,*119
(L)
(L)
(J)
17112MANIFOLD, INTAKE, NO.2
17114BGASKET, INTAKE FLANGE
main17116-26010i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111
*145,*119
17118STAY, MANIFOLD
(L)
(J)
17119STAY, MANIFOLD, NO.2
17139STAY, MANIFOLD, NO.2
main17139-0R020supersedes 17139-0R010i1ADFTV..ADT270..E,N; 2ADFTV..ADT271;2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G200811-201111
ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD)
17141MANIFOLD, EXHAUST
main17141-0R010i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111
(L),*119,(L),*145
(L)
(J)
(J)
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
NO.1
NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
*145,*119
(L)
(J)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
*145,*119
(L)
(J)
17201TURBOCHARGER SUB-ASSY
(L),*119,(L),*145
(L)
(L),*119,(L),*145
(L)
(L)
(L),*119,(L),*145
(J),*119,(J),*145
(J)
(J),*119,(J),*145
(J)
(J)
(J),*119,(J),*145
ENGINE-1AD-FTV,(L)
ENGINE-1AD-FTV,(L)
ENGINE-1AD-FTV,(J)
ENGINE-1AD-FTV,(J)
17271INSULATOR, TURBO, NO.1
*145,*119
NO.2
NO.1
17278GASKET, TURBO TO EXHAUST MANIFOLD
*145,*119
*145,*119
17279GASKET, TURBINE OUTLET ELBOW
17293STAY, TURBOCHARGER
*145,*119
17853BINSULATOR, INTAKE MANIFOLD
main17853-26030i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111
*145,*119
2501EXHAUST GAS RECIRCULATION SYSTEM
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
*114=TOYOTA/0R041/Y
*114=TOYOTA/0R050/Y
*114=TOYOTA/0R060/Y
*114=TOYOTA/0R070/Y
*114=TOYOTA/*386/Y
25586INSULATOR, MANIFOLD CONVERTER, NO.1
main25586-26030supersedes 25586-0R020i1ADFTV..ADT270..E,N; 2ADFTV..ADT271;2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G200811-201111
ENGINE-1ADFTV(DPF)&EXHAUST EMISSION CONTROL-EUROPE STEP5 WITH(OBD)
90105W0032
main90105-W0032
90105W0042
main90105-W0042
9011606048
main90116-06048
9011608167
main90116-08167
9011610125
main90116-10125
90119W0002
main90119-W0002
9012608017
main90126-08017
9012608052
main90126-08052
9012608053
main90126-08053
9017710002
main90177-10002
90178W0019
main90178-W0019
90178W0031
main90178-W0031
90178W0059
main90178-W0059
9017908119
main90179-08119
9017910070
main90179-10070
9025311021
main90253-11021
9038708170
main90387-08170
9038910051
main90389-10051
9155180616
main91551-80616
9155180850
main91551-80850
9167180820
main91671-80820
9415120801
main94151-20801
9415120841
main94151-20841
9415180600
main94151-80600
52 parts on this diagram · 13 diagrams in section
