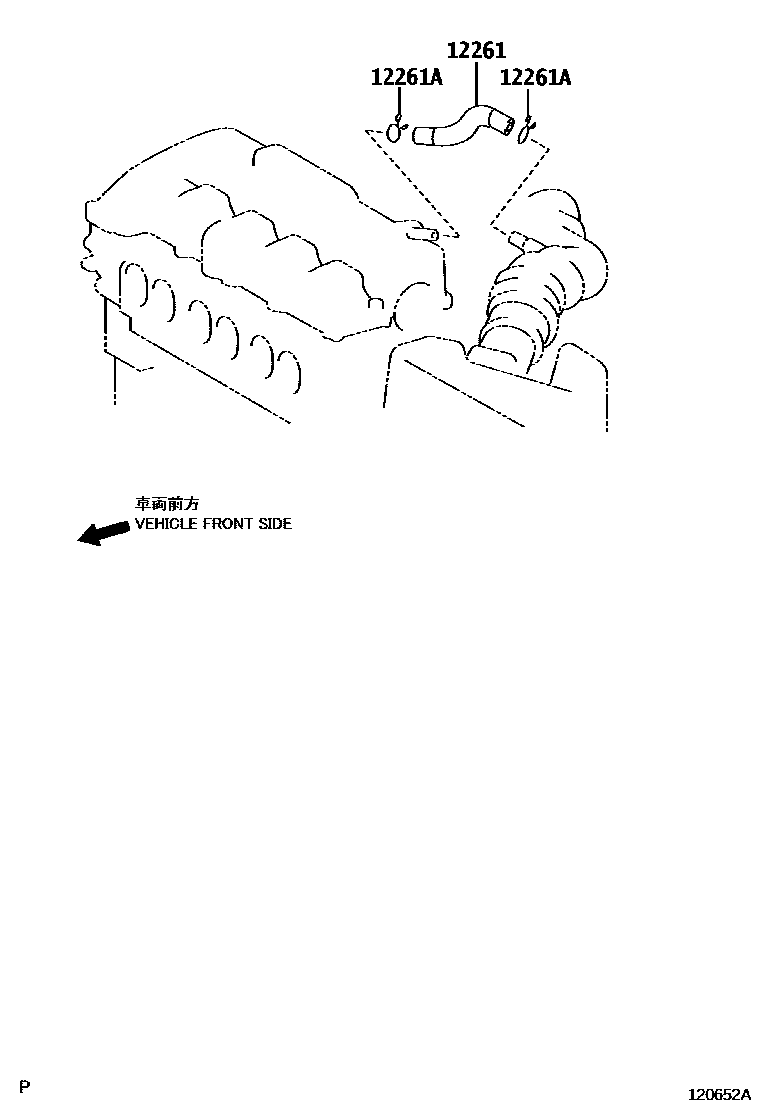

VENTILATION HOSE

0001 1 0002 1

12261HOSE, VENTILATION

main12261-0R020i2ADFHV..ADT271..6FC..V; 2ADFHV..ADT271..V;1ADFTV..ADT270..RHD..F;2ADFHV..ADT271..RHD..6F..G200811

*119; *145

main12261-0R030i2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N201110-201111

*145

main12261-37040i3ZRFE..ZRT272201212-201505

main12261-37050i1ZRFAE,2ZRFAE,3ZRFAE..ZRT27#201505

main12261-37080i3ZRFE..ZRT272201111-201212

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90466-22005i3ZR#..ZRT272201111-201505

NO.2

main90466-23003×2i2ADFHV..ADT271..6FC..G;2ADFHV..ADT271..LHD..6F..G;1ADFTV,2ADFTV..ADT27#..E,G,N200811-201111

*145,*119

main90467-15120i3ZRFE..ZRT272..RHD200811-201104

NO.1

main90467-23002i3ZRFE..ZRT272..LHD;1ZRFAE,2ZRFAE,3ZRFAE..ZRT27#200811-201111

NO.2

2 parts on this diagram · 2 diagrams in section
