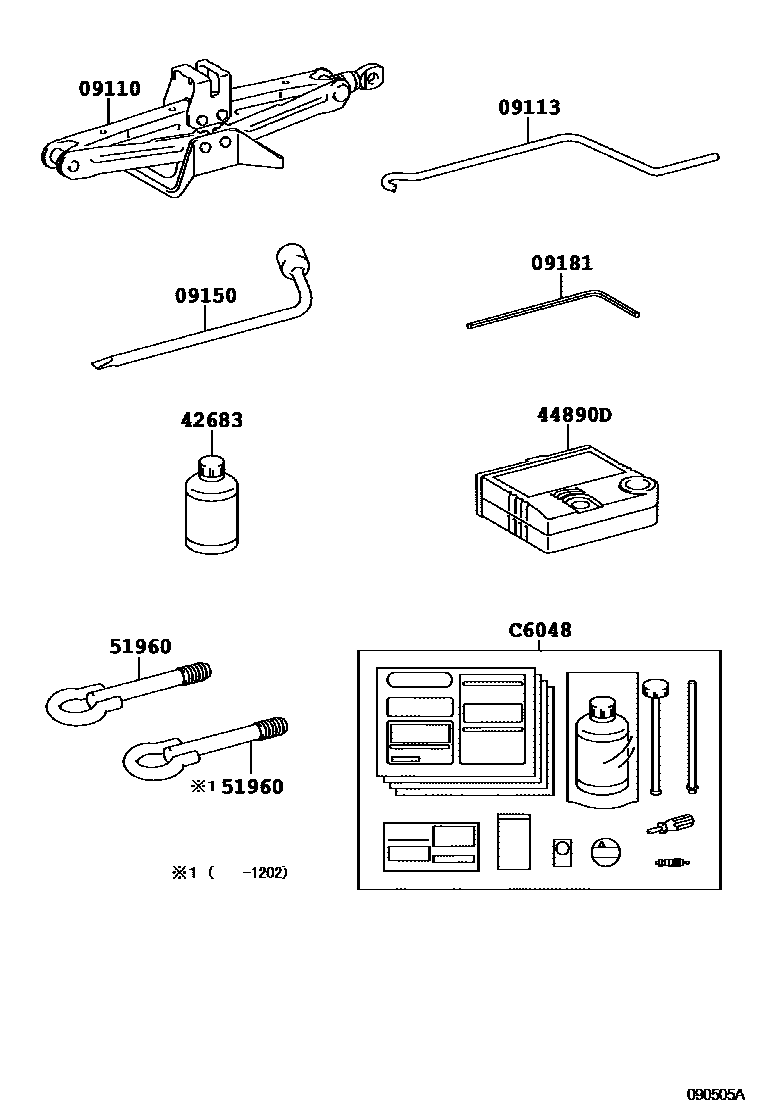

STANDARD TOOL
09110JACK ASSY
09113HANDLE, JACK
SPARE TIRE-GROUND TIRE; SPARE TIRE-TEMPORARY(T145/70D17)
09150WRENCH, HUB NUT BOX
main09150-05011iADT27#,ZRT27#; ADT27#,ZRT27#..(E,G)..(DCR,DCRL,HTWVM); ADT27#,ZRT27#..DCR,DCRL,HTWVM; ADT270,ZRT270,271..N; ADT270..N; ZRT270,271..N;ADT270..SED..N201111-201505
JACK-WITHOUT; SPARE TIRE-WITHOUT(REPAIR KIT ONLY); TIRE & DISC WHEEL-205/60R16 ALUMI ROUGHROAD SPEC ACCESSORY&SPARE TIRE-WITHOUT(REPAIR KIT ONLY); TIRE & DISC WHEEL-205/60R16 ALUMINUM&SPARE TIRE-WITHOUT(REPAIR KIT ONLY); TIRE & DISC WHEEL-205/60R16 ALUMINUM(ROUGH ROAD)&SPARE TIRE-WITHOUT(REPAIR KIT ONLY); TIRE & DISC WHEEL-215/55R17 ALMINUM ACCESSORY&SPARE TIRE-WITHOUT(REPAIR KIT ONLY); TIRE & DISC WHEEL-215/55R17 ALMINUM(ECO TIRE)&SPARE TIRE-WITHOUT(REPAIR KIT ONLY); TIRE & DISC WHEEL-215/55R17 ALUMINUM ECO TIRE ACCESSORY&SPARE TIRE-WITHOUT(REPAIRKIT ONLY); TIRE & DISC WHEEL-215/55R17 ALUMINUM&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
09181ROD, PARKING BRAKE RELEASE
main09181-05010iADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC)200811-201111
42683SEAL, TIRE REPAIR
SPARE TIRE-WITHOUT(WITH/REPAIR KIT)
SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
44890DCOMPRESSOR ASSY, AIR
W(BAG)
SPARE TIRE-WITHOUT(REPAIR KIT ONLY); TIRE & DISC WHEEL-205/60R16 STEEL&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
SPARE TIRE-WITHOUT(WITH/REPAIR KIT)
51960HOOK ASSY, FRONT
C6048REPAIR SET, TIRE
SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
8 parts on this diagram · 2 diagrams in section
