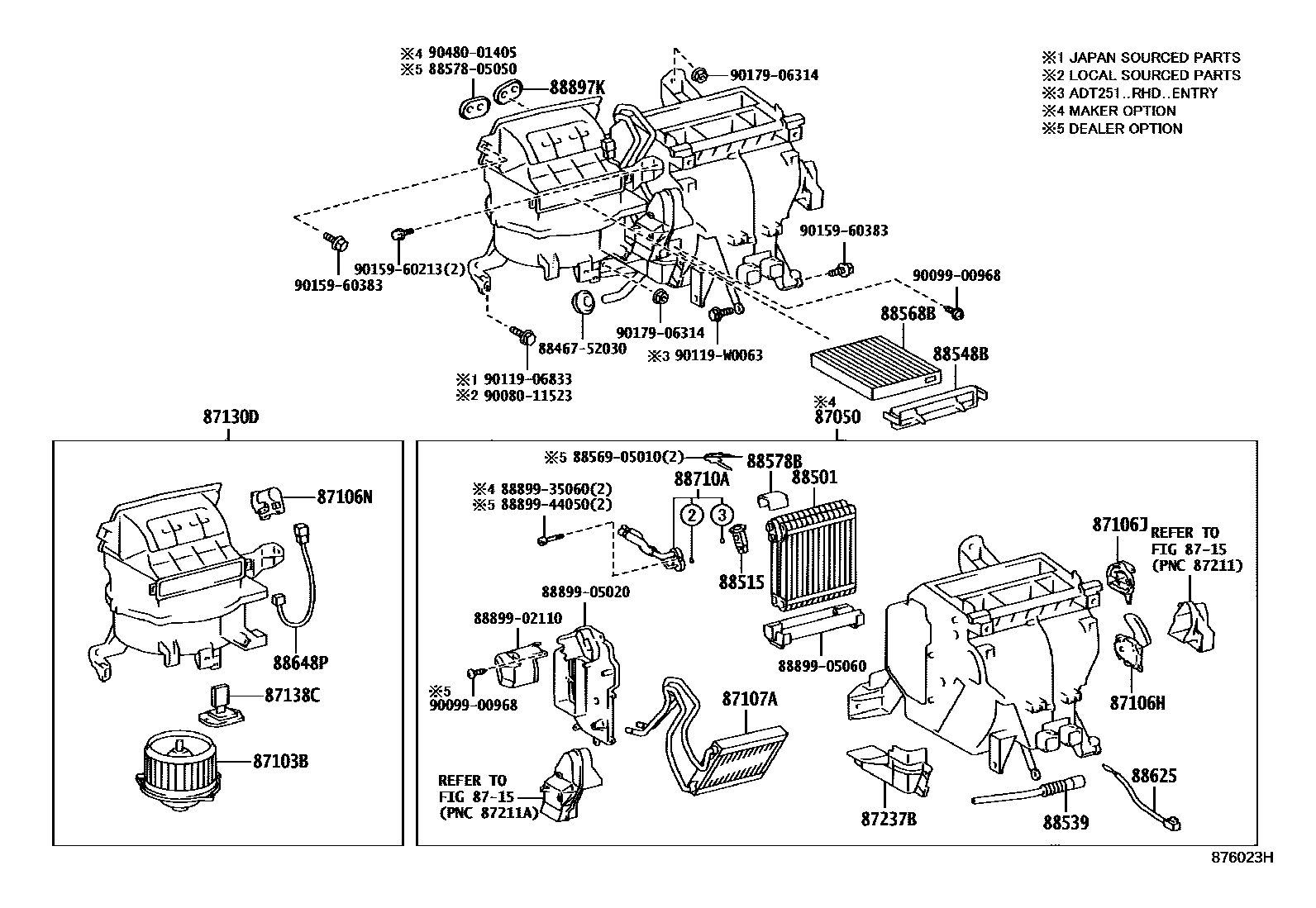

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1MANUAL AIR CONDITIONER 0003 1AUTO AIR CONDITIONER 0004 1AUTO AIR CONDITIONER 0006 1W/O(AIR CONDITIONER) 0007 1W/O(AIR CONDITIONER) 0008 1O-RING

87050RADIATOR ASSY, AIR CONDITIONER

main87050-05220iAZT25#,ZZT251..RHD..(ELEGT,TEC)200301-200512

main87050-05221iAZT25#,ZZT251..RHD..TEC200512-200604

main87050-05230iZZT25#..RHD..ENTRY200301-200604

main87050-05231iZZT25#..RHD..ENTRY200604

main87050-05290iCDT250..RHD..(ELEGT,TEC)200303-200512

main87050-05291iCDT250..RHD..TEC200512-200604

main87050-05300iCDT250..RHD..ENTRY200303-200604

main87050-05430iAZT25#,ZZT25#..LHD..(ELEGT,TEC)200301-200512

main87050-05431iAZT25#,ZZT25#..LHD..TEC200604

W/STOVE HEATER

main87050-05431iAZT25#,ZZT25#..LHD..(ELEGT,TEC)200512-200604

HEATER-W/STOVE HEATER

main87050-05440iZZT25#..LHD..ENTRY200301-200604

main87050-05441iZZT25#..LHD..ENTRY200604

main87050-05460iCDT250..LHD..ENTRY200303-200604

main87050-05480iCDT250..LHD..(ELEGT,TEC)200303-200512

main87050-05481iCDT250..LHD..(ELEGT,TEC)200512-200604

main87050-05650iADT251..RHD..(ELEGT,TEC)200504-200512

main87050-05651iADT251..RHD..(ELEGT,TEC)200512-200604

main87050-05660iADT251..RHD..ENTRY200504-200604

main87050-05661iADT25#..RHD..ENTRY200604

main87050-05670iADT251..LHD..(ELEGT,TEC)200504-200512

main87050-05671iADT251..LHD..(ELEGT,TEC)200512-200604

main87050-05680iADT251..LHD..ENTRY200504-200604

main87050-05681iADT250..LHD..ENTRY200605

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-02070iADT251,AZT25#,CDT250,ZZT25#..RHD200301-200604

main87103-02080iADT251,AZT25#,CDT250,ZZT25#..LHD200301-200604

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-02030iADT25#,ZZT25#..ENTRY200301-200604

main87106-05020iAZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);CDT250..LHD..(ELEGT,TEC)..DCR;ADT251,AZT251,ZZT25#..LHD..(ELEGT,TEC)200301-200604

main87106-05030iADT251,AZT25#,CDT250,ZZT251..RHD..(ELEGT,TEC)200301-200604

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-02040iAZT250..SED;AZT250..(LB,WG)..TEC..D4;CDT250,ZZT251..TEC..(DCR,HTWC);AZT250..LHD..(LB,WG)..ELEGT..D4;ADT251,AZT251,ZZT250..ELEGT,TEC;CDT250,ZZT251..LHD..ELEGT..(DCR,200301-200604

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-02070iADT25#,AZT25#,ZZT25#..LHD200301-200604

main87106-02100iADT25#,AZT25#,ZZT25#..RHD200301-200604

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-02120iADT251..RHD..ENTRY200504-200811

main87107-02140iADT251..LHD200504-200811

main87107-05090iAZT25#,ZZT25#..RHD200301-200811

main87107-05100iADT25#..LHD200604-200811

W/STOVE HEATER

main87107-05100iAZT25#,CDT250,ZZT25#..LHD200301-200604

main87107-0F040iADT25#..RHD..(PAG,TEC)200504-200811

87130DBLOWER ASSY

main87130-05090iAZT250..RHD..SED;AZT250..RHD..(LB,WG)..TEC;ADT251,AZT251..RHD..(ELEGT,TEC);CDT250,ZZT251..RHD..TEC..(DCR,HTWC)200301-200604

main87130-05140iADT25#,ZZT25#..RHD..ENTRY200301-200604

main87130-05150iAZT250..WG..HTWC;CDT250..LHD..DCRL200301-200604

main87130-05160iADT251,CDT250,ZZT25#..LHD..ENTRY200301-200604

87138CRESISTOR, BLOWER

main87138-02040iADT251,CDT250,ZZT25#..ENTRY200301-200604

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87237BCOVER, HEATER PIPING

main87237-02020iAZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);CDT250..LHD..(ELEGT,TEC)..DCR;ADT251,AZT251,ZZT25#..LHD..(ELEGT,TEC)200301-200604

main87237-05050iCDT250..RHD..TEC..DCRL;ADT251,ZZT250..RHD..ENTRY;AZT250..RHD..(LB,WG)..ELEGT;CDT250,ZZT251..RHD..(ELEGT,ENTRY)200301-200604

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-05070iCDT250..RHD..ENTRY;ADT251,AZT25#,ZZT25#..RHD200301-200807

main88501-05071iADT25#,AZT25#,ZZT25#..RHD200808

main88501-05080iCDT250..LHD..ENTRY;ADT251..LHD..(ELEGT,TEC);AZT25#,CDT250,ZZT25#..LHD..(D4,DCRL,HTWC)200301-200807

main88501-05081iADT25#,AZT25#,ZZT25#..LHD200808

main88501-05090iCDT250..RHD..TEC200308-200604

main88501-05100iCDT250..LHD..(ELEGT,TEC)200512-200604

88515VALVE, COOLER EXPANSION

main88515-21040iAZT250..SED;ZZT251..TEC;ZZT251..LHD..ELEGT;AZT250..(LB,WG)..TEC..D4;ADT251,AZT251,ZZT250..ELEGT,TEC;AZT250..LHD..(LB,WG)..ELEGT..D4200301-200604

main88515-21040iADT251,AZT25#,ZZT25#..ELEGT,TEC200512-200604

HEATER-W/STOVE HEATER

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-02070iAZT250..SED;AZT250..(LB,WG)..TEC..D4;CDT250,ZZT251..TEC..(DCR,HTWC);AZT250..LHD..(LB,WG)..ELEGT..D4;ADT251,AZT251,ZZT250..ELEGT,TEC;CDT250,ZZT251..LHD..ELEGT..(DCR,200301-200604

main88539-02070iADT251..LHD..ENTRY200504-200604

HEATER-W/STOVE HEATER

88548BCASE, AIR FILTER

main88548-02040iADT251,AZT25#,CDT250,ZZT25#200301-200604

88568BFILTER, AIR

main88568-02030iADT251,AZT25#,CDT250,ZZT25#200301-200604

88578BPACKING, COOLING UNIT, NO.1

main88578-12520iAZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);AZT251,ZZT25#..LHD..(ELEGT,TEC)200301-200604

main88578-12520iADT251,AZT25#,ZZT25#..LHD..(ELEGT,TEC)200512-200604

HEATER-W/STOVE HEATER

88625THERMISTOR, COOLER, NO.1

main88620-05020iADT25#,AZT25#,ZZT25#200512-200604

main88625-02040iAZT25#,ZZT251..RHD..(ELEGT,TEC)200301-200512

main88625-02060iCDT250..RHD..(ELEGT,TEC)200308-200512

main88625-52070iAZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);AZT251,ZZT25#..LHD..(ELEGT,TEC)200301-200604

(J)

main88625-52070iCDT250..RHD..(ELEGT,TEC)200303-200308

88648WIRING, COOLER, NO.1

main88648-02120iADT25#,AZT25#,ZZT25#..PAG,TEC200301-200604

88648PWIRE,AIR CONDITIONER,NO.1

main88648-02150iADT25#,ZZT25#..ENTRY200301-200604

main88648-05020iCDT250..RHD..TEC..DCRL;CDT250,ZZT251..RHD..ELEGT;AZT250..RHD..(LB,WG)..ELEGT200301-200604

88710ATUBE ASSY, AIR CONDITIONER

main88710-05350iCDT250..LHD..(ELEGT,TEC)200303-200604

main88710-05360iADT251,AZT25#,ZZT251..RHD..(ELEGT,TEC)200301-200604

main88710-05370iCDT250..RHD..TEC..DCRL;CDT250..RHD..(ELEGT,ENTRY)200303-200604

main88710-05380iAZT250..WG..HTWC;ZZT25#..LHD..ENTRY200301-200604

main88710-05380iADT251,AZT25#,ZZT25#..LHD..(ELEGT,TEC)200512-200604

HEATER-W/STOVE HEATER

88897KGROMMET, (FOR COOLER PIPE)

main90480-01434iADT251,AZT25#,CDT250,ZZT25#200301-200604

8846752030CUSHION, COOLER CONDENSER, NO.1

main88467-52030

8856905010CLAMP (FOR COOLER RELAY)

main88569-05010

8857805050PAKING, COOLER AIR DUCT

main88578-05050

8889902110COVER, EVAPORATOR

main88899-02110

8889905020COVER, EVAPORATOR

main88899-05020

8889905060COVER, EVAPORATOR

main88899-05060

8889935060COVER, EVAPORATOR

main88899-35060

8889944050COVER, EVAPORATOR

main88899-44050

9008011523

main90080-11523

9009900968

main90099-00968

9011906833

main90119-06833

90119W0063

main90119-W0063

9015960213

main90159-60213

9015960383

main90159-60383

9017906314

main90179-06314

9048001405

main90480-01405

37 parts on this diagram · 7 diagrams in section
