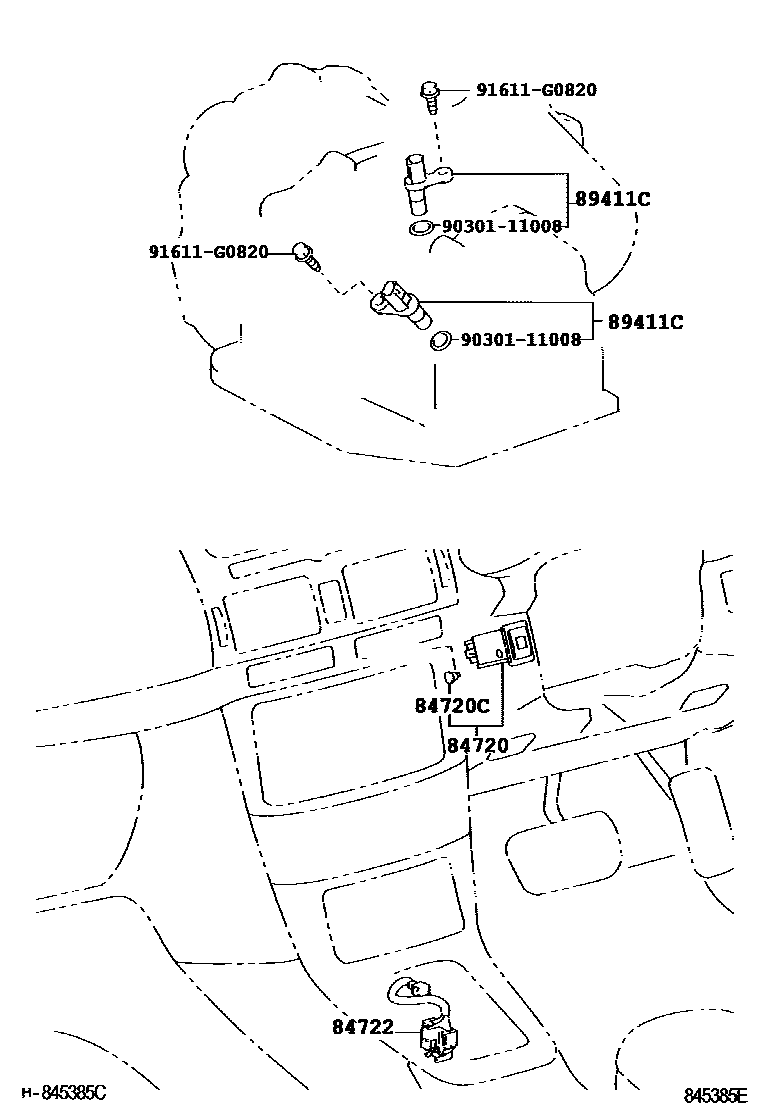

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

84720SWITCH ASSY, PATTERN SELECT

main84720-05030iAZT250..4FC..D4;AZT251,ZZT251..ATM200301-200604

84720CBULB(FOR PATTERN SELECT SWITCH)

main90011-01011iAZT250..4FC..D4;AZT251,ZZT251..ATM200301-200604

14V 0.84W

84722SWITCH, TRANSMISSION CONTROL

main84722-20230iAZT25#,ZZT251..RHD..ATM200301-200604

main84722-20240iAZT25#,ZZT251..LHD..ATM200301-200604

89411CSENSOR, SPEED

main89411-33010iAZT250..4FC200301-200309

TOYOTA

main89413-24010iAZT250..4FC200301-200604

AISIN

main89413-24010iAZT251200309-200604

NO.1

main89413-48010iAZT251200309-200604

NO.2

9030111008

main90301-11008

91611G0820

main91611-G0820

6 parts on this diagram · 6 diagrams in section
