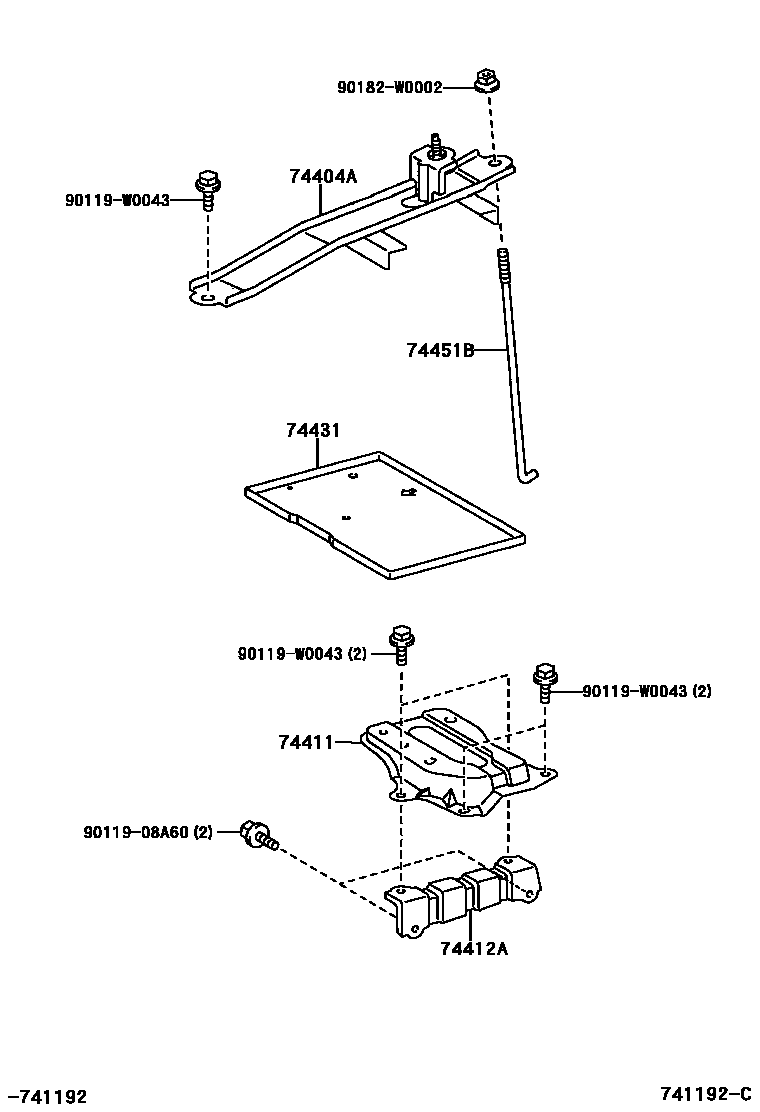

BATTERY CARRIER

74404ACLAMP SUB-ASSY, BATTERY

main74404-20530iZZT25#200301-200506

main74404-20531iZZT25#200506-200604

main74404-20540iAZT250200301-200506

main74404-20541iAZT250200506-200604

main74404-20550iCDT250200303-200604

main74404-20570iAZT251200309-200604

main74404-20590iADT251200504-200604

main74404-20600iADT25#200604

main74404-20560iCDT250..SED..ENTRY200303-200503

TAXI PACKAGE

main74404-20620iCDT250..SED..ENTRY200503-200604

TAXI PACKAGE

74411CARRIER, BATTERY

main74411-02020iCDT250,ZZT25#200301-200604

main74411-05010iAZT250200604

main74411-05020iADT25#,AZT251200604

74412ACARRIER, BATTERY, NO.2

main74412-02010iADT251,AZT25#,CDT250,ZZT25#200301-200604

74431TRAY, BATTERY

main74431-02040iCDT250200303-200604

main74431-02050iZZT25#200301-200311

main74431-02051iZZT25#200604

main74431-05030iAZT25#200301-200604

main74431-05080iADT251200504-200604

74451BBOLT, BATTERY CLAMP

main74451-02012iADT251,AZT25#,CDT250,ZZT25#200506-200604

(L)

main74451-12130iADT251,AZT25#,CDT250,ZZT25#200301-200506

main74451-12140iADT251,AZT25#,CDT250,ZZT25#200506-200604

(J)

9011908A60

main90119-08A60

90119W0043

main90119-W0043

90182W0002

main90182-W0002

8 parts on this diagram · 1 diagram in section
