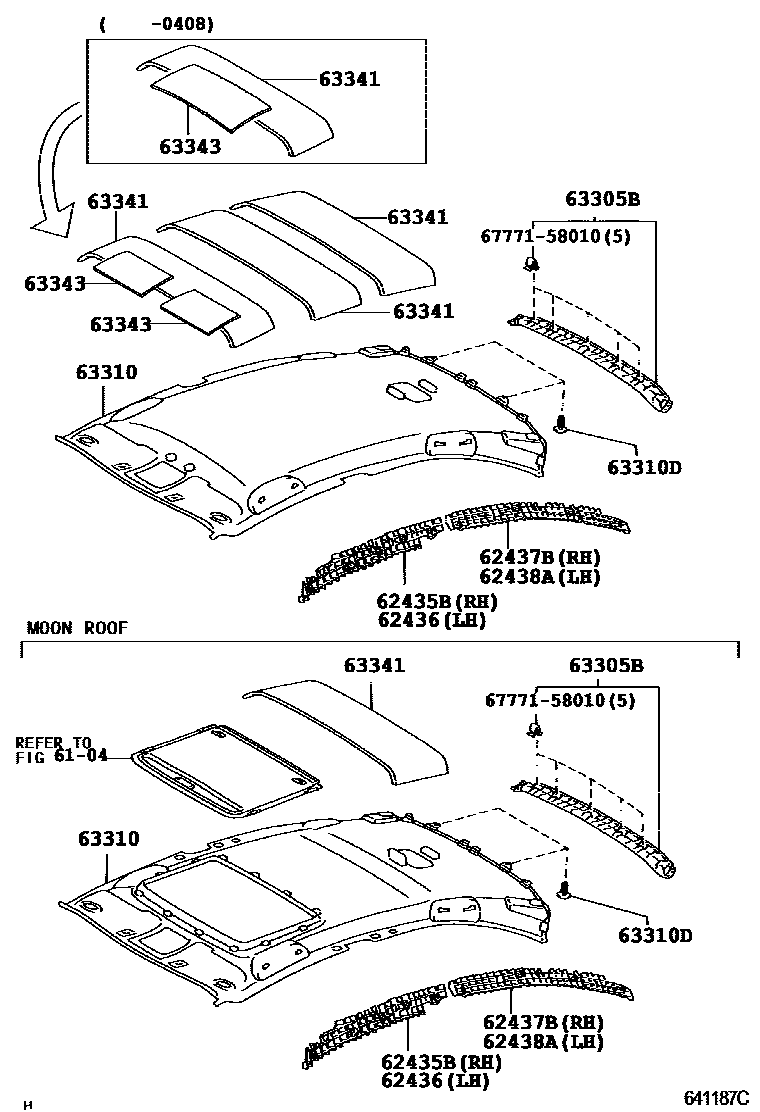

ROOF HEADLINING & SILENCER PAD

0001 1 0002 1 0003 1

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

62435BPAD, ROOF SIDE RAIL, FRONT RH

main62435-05050iADT250,ZZT25#..LHD..ENTRY; AZT250..HTWC; AZT250..LHD..SED..4FC..D4200604

ISRAEL PACKAGE; SRS AIR BAG-DRIVER & PASSENGER & SIDE & KNEE

62436PAD, ROOF SIDE RAIL, FRONT LH

main62436-05050iADT250,ZZT25#..LHD..ENTRY; AZT250..HTWC; AZT250..LHD..SED..4FC..D4200604

ISRAEL PACKAGE; SRS AIR BAG-DRIVER & PASSENGER & SIDE & KNEE

62437BPAD, ROOF SIDE RAIL, REAR RH

main62437-05080iADT250,ZZT25#..LHD..SED..ENTRY; AZT250..HTWC; AZT250..LHD..SED..4FC..D4200604

ISRAEL PACKAGE; SRS AIR BAG-DRIVER & PASSENGER & SIDE & KNEE

main62437-05090iCDT250,ZZT25#..RHD..LB..ENTRY200301-200503

SRS AIR BAG-D,P & SIDE & KNEE

main62437-05100iAZT250..WG..HTWC200301-200411

SRS AIR BAG-D,P & SIDE & KNEE & CURTAIN

62438APAD, ROOF SIDE RAIL, REAR LH

main62438-05080iADT250,ZZT25#..LHD..SED..ENTRY; AZT250..HTWC; AZT250..LHD..SED..4FC..D4200604

ISRAEL PACKAGE; SRS AIR BAG-DRIVER & PASSENGER & SIDE & KNEE

main62438-05090iCDT250,ZZT25#..RHD..LB..ENTRY200301-200503

SRS AIR BAG-D,P & SIDE & KNEE

main62438-05100iCDT250,ZZT251..RHD..WG..ENTRY200301-200503

SRS AIR BAG-D,P & SIDE & KNEE

63305BTRIM SUB-ASSY, ROOF HEADLINING, REAR

main63305-05010-A0iADT251,AZT25#,CDT250,ZZT251..LB..ELEGT200301-200604

IVORY,TRIM0#

main63305-05010-B0iADT251,AZT25#,CDT250,ZZT25#..LB200301-200604

LT. GRAY,TRIM1#

main63305-05010-E0iZZT251..LHD..LB..TEC;ADT25#,AZT25#..LB..(PAG,TEC)200604

GREGE,TRIM4#

main63305-05020-A0iADT251,AZT25#,CDT250,ZZT251..WG..ELEGT200301-200604

IVORY,TRIM0#

main63305-05020-B0iADT25#,AZT25#,ZZT25#..WG200604

LT. GRAY,TRIM1#

main63305-05020-E0iZZT251..LHD..WG..TEC;ADT25#,AZT25#..WG..(PAG,TEC)200604

GREGE,TRIM4#

63310HEADLINING ASSY, ROOF

main63310-05520-A0iADT251,AZT25#,CDT250,ZZT251..WG..ELEGT200301-200604

IVORY,TRIM0#

main63310-05520-B0iADT251,AZT25#,CDT250,ZZT25#..WG200301-200604

LT. GRAY,TRIM1#

main63310-05520-E0iZZT251..LHD..WG..TEC;ADT25#,AZT25#..WG..(PAG,TEC)200604

GREGE,TRIM4#

main63310-05450-A0supersedes 63310-05440-A0iZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..SED..ELEGT200301-200604

WITH(MOON ROOF),IVORY,TRIM0#

main63310-05450-B0supersedes 63310-05440-B0iADT251,AZT25#,CDT250,ZZT25#..SED200301-200604

WITH(MOON ROOF),LT. GRAY,TRIM1#

main63310-05450-E0supersedes 63310-05440-E0iZZT251..LHD..SED..TEC;ADT25#,AZT25#,ZZT250..SED..(PAG,TEC)200604

WITH(MOON ROOF),GREGE,TRIM4#

main63310-05490-A0supersedes 63310-05480-A0iADT251,AZT25#,CDT250,ZZT251..LB..ELEGT200301-200604

WITH(MOON ROOF),IVORY,TRIM0#

main63310-05490-B0supersedes 63310-05480-B0iADT25#,AZT25#,ZZT25#..LB200604

WITH(MOON ROOF),LT. GRAY,TRIM1#

main63310-05490-E0supersedes 63310-05480-E0iZZT251..LHD..LB..TEC;ADT25#,AZT25#..LB..(PAG,TEC)200604

WITH(MOON ROOF),GREGE,TRIM4#

main63310-05530-A0iAZT25#..WG..(5F,5FC)..ELEGT;ADT251,AZT250,CDT250,ZZT251..WG..ELEGT..(DCR,DCRL,HTWC)200301-200604

WITH(MOON ROOF),IVORY,TRIM0#

main63310-05530-B0iAZT250..WG..5F;ADT25#,AZT251,ZZT25#..WG200604

WITH(MOON ROOF),LT. GRAY,TRIM1#

main63310-05530-E0iZZT251..LHD..WG..TEC;ADT25#,AZT25#..WG..(5F,5FC,6F)..(PAG,TEC)200604

WITH(MOON ROOF),GREGE,TRIM4#

63310DCLIP, ROOF HEADLINING

main90467-06114-A1×6iADT251,AZT25#,CDT250,ZZT251..LB..ELEGT; ADT251,AZT25#,CDT250,ZZT251..WG..ELEGT; AZT25#..WG..(5F,5FC)..ELEGT;ADT251,AZT250,CDT250,ZZT251..WG..ELEGT..(DCR,DCRL,HTWC)200301-200604

IVORY,TRIM0#; WITH(MOON ROOF),IVORY,TRIM0#

main90467-06114-B2×6iADT25#,AZT25#,ZZT25#..LB; ADT25#,AZT25#,ZZT25#..WG; AZT250..WG..5F;ADT25#,AZT251,ZZT25#..WG200604

LT.GRAY,TRIM1#; WITH(MOON ROOF),LT.GRAY,TRIM1#

main90467-06114-E0×2iZZT251..LHD..LB..TEC;ADT25#,AZT25#..LB..(PAG,TEC); ZZT251..LHD..WG..TEC;ADT25#,AZT25#..WG..(5F,5FC,6F)..(PAG,TEC); ZZT251..LHD..WG..TEC;ADT25#,AZT25#..WG..(PAG,TEC)200604

GREGE,TRIM4#; WITH(MOON ROOF),GREGE,TRIM4#

63341PAD, ROOF SILENCER, NO.1

main63341-05060×4iADT25#,AZT25#,ZZT25#..LB,SED; ADT25#,AZT25#,ZZT25#..WG; AZT250..WG..5F;ADT25#,AZT251,ZZT25#..WG200604

WITH(MOON ROOF)

63343PAD, ROOF SILENCER, NO.3

main63343-05020iAZT25#,CDT250,ZZT25#; AZT250..HTWC;AZT250..WG..5F;AZT250..(LB,SED)..D4;AZT251,CDT250,ZZT25#200301-200408

WITH(MOON ROOF)

main63343-05021×2iADT251,AZT25#,CDT250,ZZT25#; AZT250..HTWC;AZT250..WG..5F;AZT250..(LB,SED)..D4;ADT251,AZT251,CDT250,ZZT25#200408-200604

WITH(MOON ROOF)

6777158010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-58010

11 parts on this diagram · 3 diagrams in section
