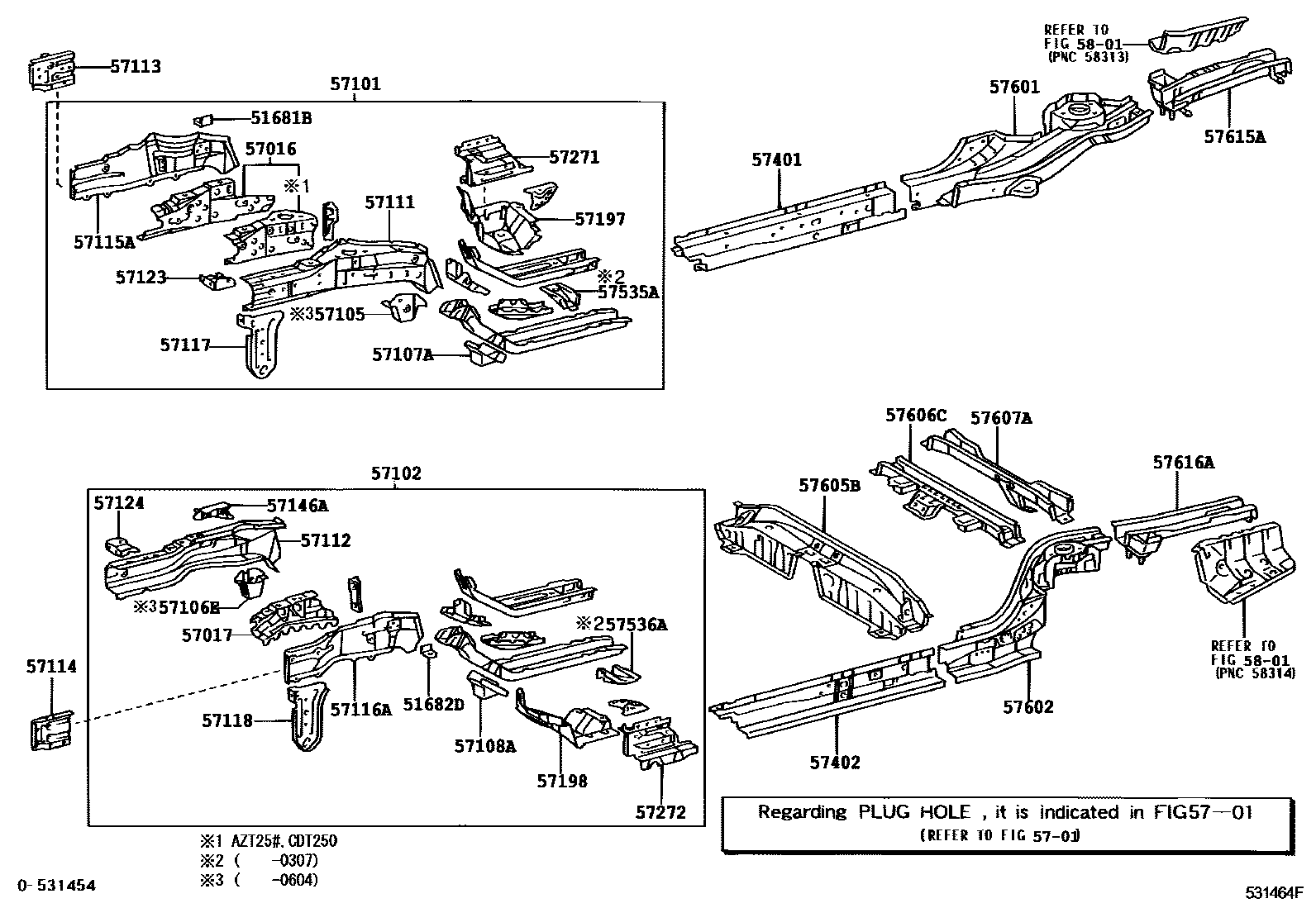

FLOOR SIDE MEMBER

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-32050iADT251;CDT250..RHD..WG..TEC200301-200508

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-32040iZZT25#;CDT250..LB,SED;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY)200503-200508

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-02030iAZT251;AZT250..SED;CDT250..LHD..ELEGT..DCR;CDT250..(ENTRY,TEC)..DCR;AZT250..(LB,WG)..TEC..D4;AZT250..LHD..(LB,WG)..ELEGT..D4200301-200502

main57016-05010iZZT25#200301-200503

main57016-05011iADT25#,ZZT25#200604

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-05010iAZT25#200301-200604

main57017-05020iCDT250,ZZT25#200301-200503

main57017-05021iADT251,CDT250,ZZT25#200503-200604

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-05050iZZT25#200301-200503

main57101-05051iADT251,ZZT25#200503-200508

main57101-05060iAZT25#200301-200503

main57101-05061iAZT25#200503-200509

main57101-05070iCDT250200303-200503

main57101-05071iCDT250200503-200508

main57101-05080iADT251,ZZT25#200509-200604

main57101-05090iAZT25#200604

main57101-05100iCDT250200509-200604

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-05050iAZT25#200301-200509

main57102-05060iCDT250,ZZT25#200301-200503

main57102-05061iADT251,CDT250,ZZT25#200503-200508

main57102-05070iAZT25#200509-200604

main57102-05080iADT25#,ZZT25#200604

57105BRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT RH

main57105-13020iZZT250;ZZT251..LHD..5F..ENTRY;ZZT251..LHD..(ELEGT,TEC);ZZT251..RHD..(ENTRY,TEC)200301-200502

57106EBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, FRONT LH

main57106-13020iZZT25#;CDT250..LB,SED;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY)200503-200604

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-05010iAZT250..SED;ZZT251..TEC;AZT251,ZZT250;ZZT251..5F..ENTRY;AZT250..(LB,WG)..TEC..D4;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..ELEGT..D4;CDT250,ZZT251..LHD..ELEGT..(DCR,HTWC)200301-200502

57108APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57108-05010iAZT25#;CDT250..TEC..DCRL;ZZT251..LHD..4FC..ENTRY;CDT250..LHD..ELEGT..DCRL;ZZT251..RHD..LB..4FC..ELEGT;CDT250,ZZT251..RHD..5F..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY)200301-200604

57111MEMBER, FRONT SIDE, RH

main57111-05020iAZT25#200301-200503

main57111-05021iAZT25#200604

main57111-05030iZZT25#200301-200503

main57111-05031iADT25#,ZZT25#200604

main57111-05040iCDT250200303-200503

main57111-05041iCDT250200503-200604

57112MEMBER, FRONT SIDE, LH

main57112-05030iZZT250;ZZT251..TEC;ZZT251..5F..ENTRY;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;CDT250,ZZT251..LHD..ELEGT..(DCR,HTWC)200301-200502

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-05020iADT251,AZT25#,CDT250,ZZT25#200301-200604

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-02010iADT251;CDT250..RHD..WG..TEC200301-200508

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-02010iADT251;CDT250..RHD..WG..TEC200301-200508

57117PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT RH

main57117-05020iAZT250..SED;ZZT251..TEC;AZT251,ZZT250;ZZT251..5F..ENTRY;AZT250..(LB,WG)..TEC..D4;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..ELEGT..D4;CDT250,ZZT251..LHD..ELEGT..(DCR,HTWC)200301-200502

57118PLATE SUB-ASSY, FRONT SIDE MEMBER, FRONT LH

main57118-05020iZZT250;ZZT251..TEC;ZZT251..5F..ENTRY;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;CDT250,ZZT251..LHD..ELEGT..(DCR,HTWC)200301-200502

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-05010iAZT250..SED;ZZT251..TEC;AZT251,ZZT250;ZZT251..5F..ENTRY;AZT250..(LB,WG)..TEC..D4;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..ELEGT..D4;CDT250,ZZT251..LHD..ELEGT..(DCR,HTWC)200301-200502

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-05010iZZT250;ZZT251..TEC;ZZT251..5F..ENTRY;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;CDT250,ZZT251..LHD..ELEGT..(DCR,HTWC)200301-200502

57146AREINFORCEMENT, FRONT SIDE MEMBER, REAR LH

main57146-12020iZZT250;ZZT251..TEC;ZZT251..5F..ENTRY;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;CDT250,ZZT251..LHD..ELEGT..(DCR,HTWC)200301-200502

57197BOX, TORQUE, FRONT RH

main57197-02010iAZT250..SED;ZZT251..TEC;AZT251,ZZT250;ZZT251..5F..ENTRY;AZT250..(LB,WG)..TEC..D4;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..ELEGT..D4;CDT250,ZZT251..LHD..ELEGT..(DCR,HTWC)200301-200502

57198BOX, TORQUE, FRONT LH

main57198-02030iZZT250;ZZT251..TEC;ZZT251..5F..ENTRY;CDT250..(ENTRY,TEC)..DCR;ZZT251..RHD..LB..4FC..ENTRY;CDT250,ZZT251..LHD..ELEGT..(DCR,HTWC)200301-200502

57271EXTENSION, STEERING GEAR BOX SUPPORT MEMBER, RH

main57271-05020iAZT25#,ZZT25#;CDT250..LB,SED;CDT250..LHD..WG..TEC;CDT250..WG..(ELEGT,ENTRY)200503-200604

57272EXTENSION, STEERING GEAR BOX SUPORT MEMBER, LH

main57272-05020iADT251,AZT25#;CDT250..TEC..DCRL;CDT250..RHD..WG..TEC;ZZT251..LHD..4FC..ENTRY;CDT250..LHD..ELEGT..DCRL;ZZT251..RHD..LB..4FC..ELEGT;CDT250,ZZT251..RHD..5F..ELEGT;ZZT251..RHD..SED..4FC..(ELEGT,ENTRY)200301-200604

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-05050iADT251,AZT25#,CDT250,ZZT25#200301-200604

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-05050iADT251,AZT25#,CDT250,ZZT25#200301-200604

57535ABRACE, FRONT FLOOR, RH

main57535-13010iAZT250,CDT250,ZZT25#200301-200307

57536ABRACE, FRONT FLOOR, LH

main57536-13010iAZT250,CDT250,ZZT25#200301-200307

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-05080iADT251,AZT25#,CDT250,ZZT25#..LB,WG200509-200604

main57601-05900iAZT25#,CDT250,ZZT25#200301-200402

main57601-05903iAZT250..HTWC;AZT250..SED..D4;ADT251,AZT251,CDT250,ZZT25#..SED;ZZT251..LHD..(LB,WG)..4FC..ENTRY;AZT250,CDT250,ZZT251..RHD..(LB,WG)..ELEGT200402-200604

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-05100iADT251,AZT25#,CDT250,ZZT25#..LB,WG200509-200604

main57602-05900iAZT25#,CDT250,ZZT25#200301-200402

main57602-05903iAZT250..HTWC;AZT250..SED..D4;ADT251,AZT251,CDT250,ZZT25#..SED;ZZT251..LHD..(LB,WG)..4FC..ENTRY;AZT250,CDT250,ZZT251..RHD..(LB,WG)..ELEGT200402-200604

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-02050iADT251,AZT25#,CDT250,ZZT25#200301-200604

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-05060iADT251,AZT25#,CDT250,ZZT25#200301-200604

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-05010iADT251,AZT25#,CDT250,ZZT25#200301-200604

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57603-05010iADT251,AZT25#,CDT250,ZZT25#200509-200604

main57615-05901iADT251,AZT25#,CDT250,ZZT25#200301-200604

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57604-05010iADT251,AZT25#,CDT250,ZZT25#200509-200604

main57616-05901iADT251,AZT25#,CDT250,ZZT25#200301-200604

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

38 parts on this diagram · 1 diagram in section
