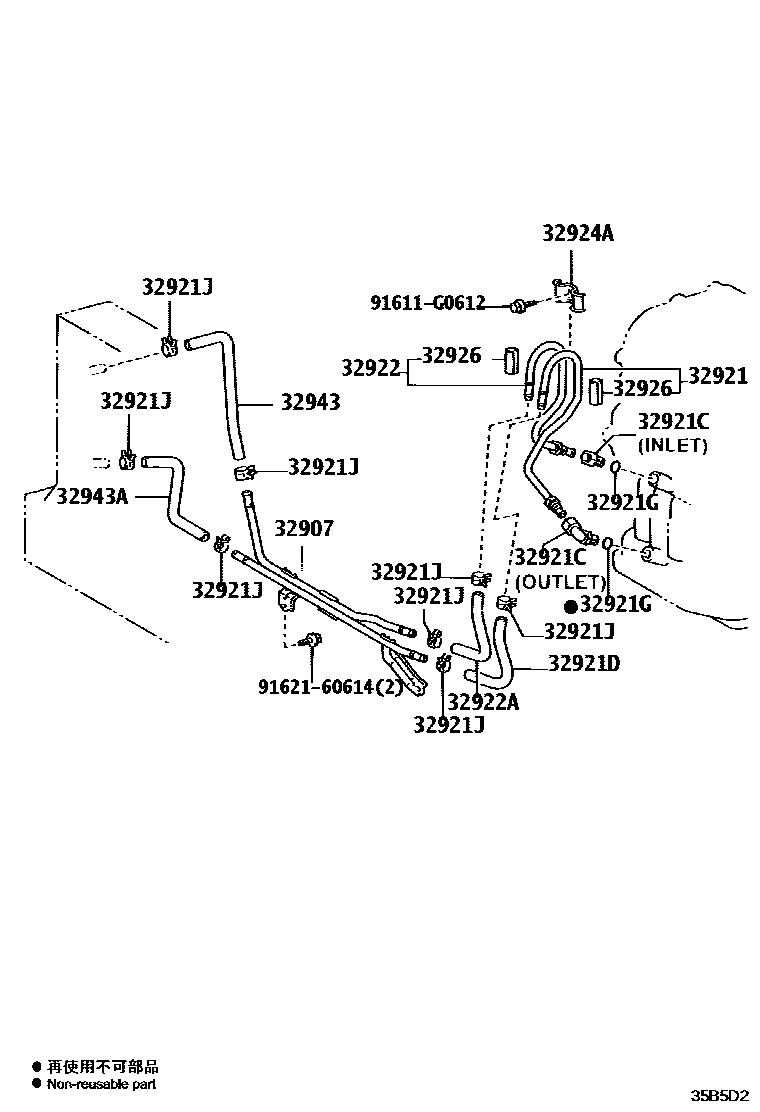

OIL COOLER & TUBE (ATM)

0001 1U241E 0002 1U151E 0003 1U151E 0004 1U341E

32907TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2

main32907-13010iZZT251..4FC200301-200604

main32907-20040iAZT250..4FC200301-200607

main32907-20041iAZT25#..ATM200608

32921TUBE, OIL COOLER INLET, NO.1

main32921-13030iZZT251..4FC200301-200604

main32921-20520iAZT250..4FC200301-200604

32921CUNION(FOR OIL COOLER TUBE)

main90404-13004iAZT251200309-200604

NO.2

main90404-14007iZZT251..4FC200301-200604

OUTLET

main90404-16031iAZT250..4FC200301-200604

INLET

main90407-13009iAZT251200309-200604

NO.1

main90407-14003iZZT251..4FC200301-200604

INLET

main90407-16010iAZT250..4FC200301-200604

OUTLET

32921DHOSE(FOR OIL COOLER INLET)

main90445-15042iZZT251..4FC200301-200604

main90445-17100iAZT250..4FC200301-200604

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iAZT25#,ZZT251..ATM200301-200604

32921JCLIP(FOR OIL COOLER HOSE)

main90467-16022iAZT251200301-200604

main96135-51300iZZT251..4FC200301-200604

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-13040iZZT251..4FC200301-200604

main32922-20540iAZT250..4FC200301-200604

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15042iZZT251..4FC200301-200604

main90445-17069iAZT251200309-200608

main90445-17096iAZT250..4FC200301-200604

32924CLAMP, OIL COOLER TUBE, NO.2

main90462-10127iZZT251..4FC200301-200604

32924ACLAMP(FOR OIL COOLER TUBE, NO.2)

main90462-12074iAZT250..4FC200301-200604

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-10010iZZT251..4FC200301-200604

L=30,ID=8

main32926-30020iAZT250..4FC200301-200604

L=35,ID=10

32943HOSE, TRANSMISSION OIL COOLER, NO.1

main32943-20120iAZT250..4FC200301-200607

32943AHOSE, TRANSMISSION OIL COOLER, NO.2

main32943-20130iAZT25#..ATM200301-200607

91611G0612

main91611-G0612

9162160614

main91621-60614

15 parts on this diagram · 4 diagrams in section
