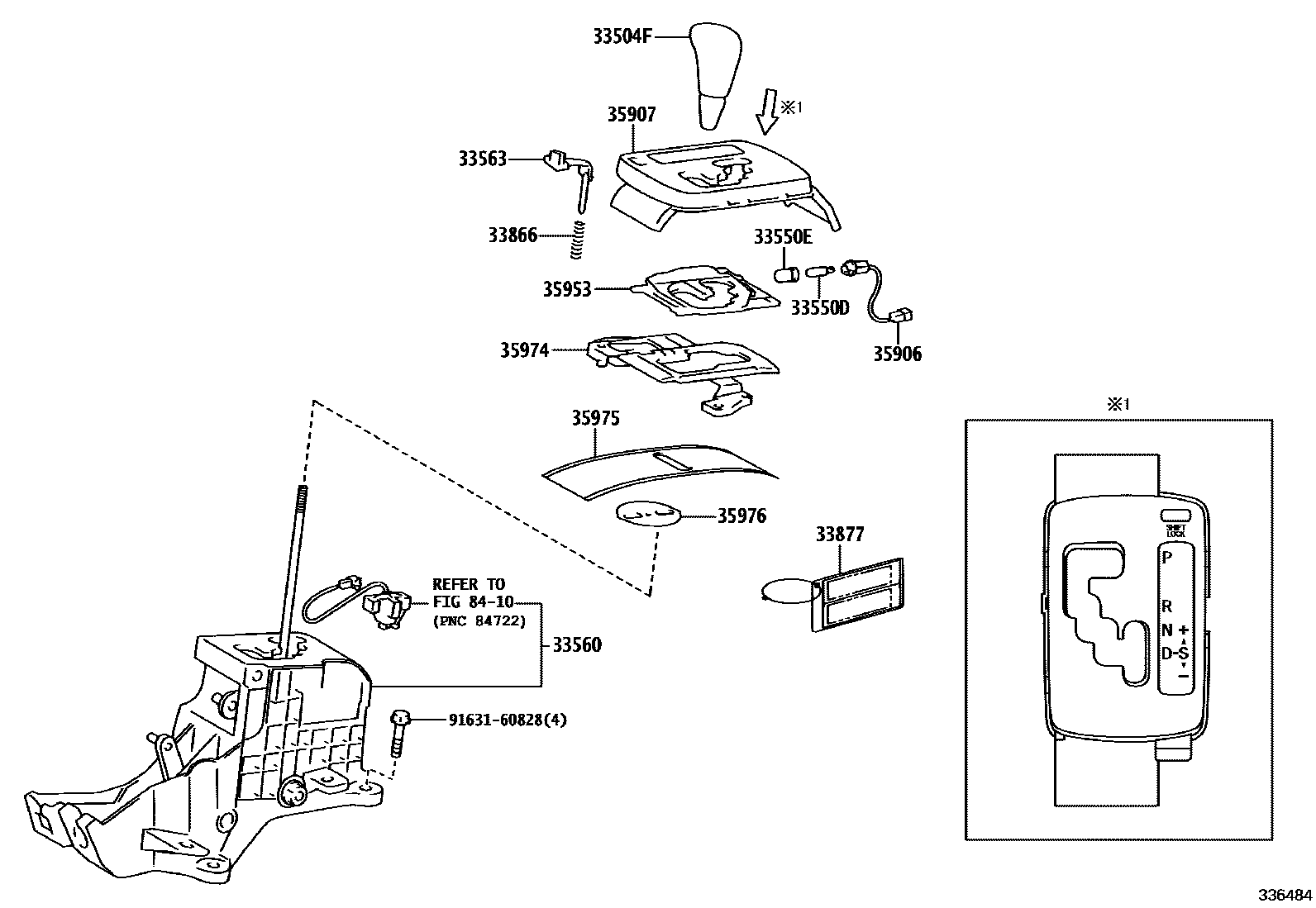

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02030-B0iCDT250,ZZT25#..5F..ENTRY200301-200308

DK.GRAY,TRIM1#

main33504-02030-B0iZZT25#..5F..ENTRY200308-200604

DK.GRAY,TRIM1#,(L)

main33504-05030-B0iAZT25#,ZZT251..ATM..TEC200308-200604

DK.GRAY,TRIM1#

main33504-05030-B0iAZT25#,ZZT251..ATM..TEC200308-200604

DK.GRAY,TRIM0#,1#

main33504-05030-B0iAZT250,ZZT251..4FC..ELEGT200301-200308

DK.GRAY,TRIM0#,1#,(L)

main33504-05030-B0iAZT250,ZZT251..4FC..ELEGT200301-200308

DK.GRAY,TRIM1#,(L)

main33504-05030-B0iAZT25#..ATM;ZZT251..LHD..4FC200604

DK.GRAY,TRIM1#,4#

main33504-05040-B0iAZT250,CDT250,ZZT25#..5F..ELEGT200301-200305

DK.GRAY,TRIM0#,1#

main33504-05040-B0iAZT250,CDT250,ZZT25#..5F..ELEGT200301-200305

DK.GRAY,TRIM1#

main33504-05041-B0iZZT251..LHD..5F..TEC;AZT250,ZZT250..5F..TEC200305-200604

DK.GRAY,TRIM1#

main33504-05041-B0iZZT251..LHD..5F..TEC;AZT250,ZZT250..5F..TEC200604

DK.GRAY,TRIM1#,4#

main33504-05041-B0iAZT250,CDT250,ZZT25#..5F..ELEGT..(D4,DCR,HTWC)200305-200604

DK.GRAY,TRIM0#,1#

main33504-13010-B0iCDT250,ZZT25#..5F..ENTRY200308-200604

DK.GRAY,TRIM1#,(J)

main33504-20230-B0iADT251..ENTRY200504-200604

DK.GRAY,TRIM1#

main33504-20240-B0iADT251..ELEGT200504-200604

DK.GRAY,TRIM1#

main33504-20240-B0iADT251..TEC200504-200604

DK.GRAY,TRIM0#,1#

main33504-20240-B0iADT25#..PAG,TEC200604

DK.GRAY,TRIM1#,4#

main33504-22170-B1iZZT251..4FC..ENTRY200604

ISRAEL PACKAGE,DK.GRAY,TRIM1#

main33504-22170-B1iZZT251..4FC..ENTRY200301-200604

DK.GRAY,TRIM1#

main33504-30281-B1iAZT250,ZZT251..4FC..TEC200301-200308

DK.GRAY,TRIM1#,(J)

main33504-30281-B1iAZT250,ZZT251..4FC..ELEGT200301-200308

DK.GRAY,TRIM0#,1#,(J)

33550DBULB, POSITION INDICATOR LAMP

main90981-30001iAZT25#,ZZT251..ATM200301-200604

14V 0.7W

33550ECAP, POSITION INDICATOR LAMP

main90339-04071iAZT25#,ZZT251..ATM200301-200604

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-20110iAZT25#,ZZT251..LHD..ATM200301-200604

main33560-20120iAZT25#,ZZT251..RHD..ATM200301-200604

33563BUTTON, SHIFT LOCK RELEASE

main33563-20170iAZT25#,ZZT251..LHD..ATM200301-200604

main33563-20180iAZT25#,ZZT251..RHD..ATM200301-200604

33866SPRING, SHIFT LOCK RELEASE

main33866-33010iAZT25#,ZZT251..ATM200301-200604

33877LABEL, SHIFT LOCK INFORMATION, NO.1

main33877-50030iAZT25#,ZZT251..ATM200301-200604

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-20130iAZT25#,ZZT251..ATM200301-200604

35907HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)

main35907-20230iAZT25#,ZZT251..LHD..ATM200301-200604

main35907-20240iZZT251..LHD..4FC..ENTRY200301-200411

main35907-20250iAZT25#,ZZT251..RHD..ATM..(ELEGT,TEC)200301-200604

main35907-20260iZZT251..4FC..ENTRY200301-200604

35953GUIDE, POSITION INDICATOR LIGHT

main35953-20010iAZT25#,ZZT251..LHD..ATM200301-200604

main35953-20020iAZT25#,ZZT251..RHD..ATM200301-200604

35974HOUSING, POSITION INDICATOR, LOWER

main35974-20261iAZT25#,ZZT251..LHD..ATM200301-200604

main35974-20271iAZT25#,ZZT251..RHD..ATM200301-200604

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-20240iAZT25#,ZZT251..ATM200301-200604

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-20160iAZT25#,ZZT251..ATM200301-200604

8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

→ Go to FIG 84-10

9163160828

main91631-60828

15 parts on this diagram · 4 diagrams in section
