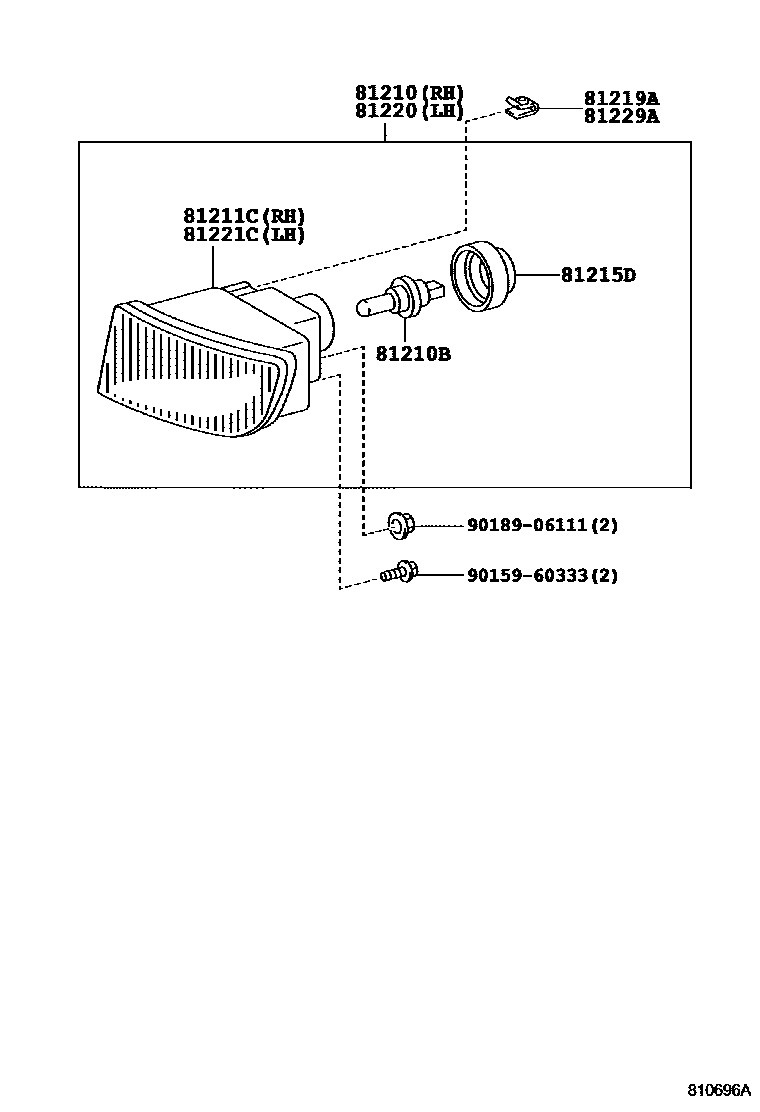

FOG LAMP

0001 1 0002 1

81210LAMP ASSY, FOG

main81210-05040iAT22#,CDT220,CT220,ST220199710-200007

main81210-05050iAZT220,CDT220,ST220,ZZT22#200007

81210BBULB, FOG LAMP

main90080-81067×2iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

12V 55W

81211CLAMP UNIT, FOG LAMP, RH

main81211-05040iAT22#,CDT220,CT220,ST220199710-200007

main81211-05050iAZT220,CDT220,ST220,ZZT22#200007

81215DFOG LAMP SOCKET PLUG ASSY

main81215-05040×2iAT22#,CDT220,CT220,ST220199710-200007

main81215-05050×2iAZT220,CDT220,ST220,ZZT22#200007

81219ABRACKET, FOG LAMP, RH

main52125-20100iAT22#,CDT220,CT220,ST220199710-200007

81220LAMP ASSY, FOG, LH

main81220-05040iAT22#,CDT220,CT220,ST220199710-200007

main81220-05050iAZT220,CDT220,ST220,ZZT22#200007

81221CLAMP UNIT, FOG LAMP, LH

main81221-05040iAT22#,CDT220,CT220,ST220199710-200007

main81221-05050iAZT220,CDT220,ST220,ZZT22#200007

81229ABRACKET, FOG LAMP, LH

main52125-20100iAT22#,CDT220,CT220,ST220199710-200007

9015960333

main90159-60333

9018906111

main90189-06111

10 parts on this diagram · 2 diagrams in section
