FLOOR SIDE MEMBER

51681BPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, RH

main51681-20070iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

51682DPLATE, FRONT BRAKE FLEXIBLE HOSE SUPPORT, LH

main51682-20070iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

53704DSUPPORT SUB-ASSY, BATTERY, LH

main53704-05010iAT22#,AZT220,ST220,ZZT22#199710

main53704-05020iCDT220,CT220199710

55736BSEAL, WATER GUARD PLATE

main55736-05010iCDT220,CT220..DCR,TDEFI199710

57031AREINFORCE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57031-05030iAT22#,ZZT22#199710

main57031-05040iAZT220,CDT220,CT220,ST220199710

57032BREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, NO.2 LH

main57032-05020iAT22#,CT220,ST220199710-199807

main57032-05021iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199807

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-05030iAT22#,ZZT22#199710

main57101-05040iAZT220,CDT220,CT220,ST220199710

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-05030iAT22#,AZT220,ST220,ZZT22#199710

main57102-05040iCDT220,CT220199710

57107GBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR RH

main57107-20060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57108FBRACKET SUB-ASSY, FRONT SUSPENSION MEMBER MOUNTING, REAR LH

main57108-20060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57111MEMBER, FRONT SIDE, RH

main57111-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57112MEMBER, FRONT SIDE, LH

main57112-05020iAT22#,CT220,ST220199710-199811

main57112-05021iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199811

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57115-20190iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57116-20210iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57125BREINFORCEMENT, FRONT SIDE MEMBER, RH

main57121-20010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57126BREINFORCEMENT, FRONT SIDE MEMBER, LH

main57122-20010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57157REINFORCEMENT, FRONT SIDE MEMBER, NO.4 RH

main57157-20080iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57158REINFORCEMENT, FRONT SIDE MEMBER, NO.4 LH

main57158-20080iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57177APLATE, FRONT SIDE MEMBER, NO.7 RH

main57177-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57178PLATE, FRONT SIDE MEMBER, NO.7 LH

main57178-05010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-05040iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57408BMEMBER SUB-ASSY, FRONT FLOOR CROSS

main57408-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57417REINFORCEMENT, FRONT FLOOR UNDER, RH

main57505-05020iAT22#,CDT220,CT220,ST220199710-200007

main57505-05030iAZT220,CDT220,ST220,ZZT22#200007

57418REINFORCEMENT, FRONT FLOOR UNDER, LH

main57505-05020iAT22#,CDT220,CT220,ST220199904-200007

main57505-05030iAZT220,CDT220,ST220,ZZT22#200007

main57506-05020iAT22#,CT220,ST220199710-199904

57452BMEMBER, FRONT FLOOR CROSS, NO.2

main57452-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57453BMEMBER, FRONT FLOOR CROSS, NO.3

main57453-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200107

main57601-05051iAZT220,CDT220,ST220,ZZT22#200107

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-05050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710-200107

main57602-05051iAZT220,CDT220,ST220,ZZT22#200107

main57602-05060iAT220..LHD..SED..TERRA199710-200007

CIS SPEC

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-20060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH

main57604-20060iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-05020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-05040iAT22#,CDT220,CT220,ST220199710-200007

main57606-05041iAZT220,CDT220,ST220,ZZT22#200007

57615AMEMBER, REAR FLOOR SIDE, REAR RH

main57615-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-05030iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#199710

main57616-20100iAT220..LHD..SED..TERRA199710-200007

CIS SPEC

57628BPLATE, REAR FLOOR SIDE MEMBER, RH

main57628-20050iAZT220,CDT220,ST220,ZZT22#200007

57629BPLATE, REAR FLOOR SIDE MEMBER, LH

main57629-20040iAZT220,CDT220,ST220,ZZT22#200007

9008133001

main90081-33001

9008195003

main90081-95003

9033320001

main90333-20001

9033330002

main90333-30002

9095001056

main90950-01056

9095001148

main90950-01148

9095001247

main90950-01247

9095001259

main90950-01259

9095001511

main90950-01511

9095001518

main90950-01518

9095001539

main90950-01539

9095001701

main90950-01701

9095001711

main90950-01711

9095001759

main90950-01759

9095001771

main90950-01771

9095001826

main90950-01826

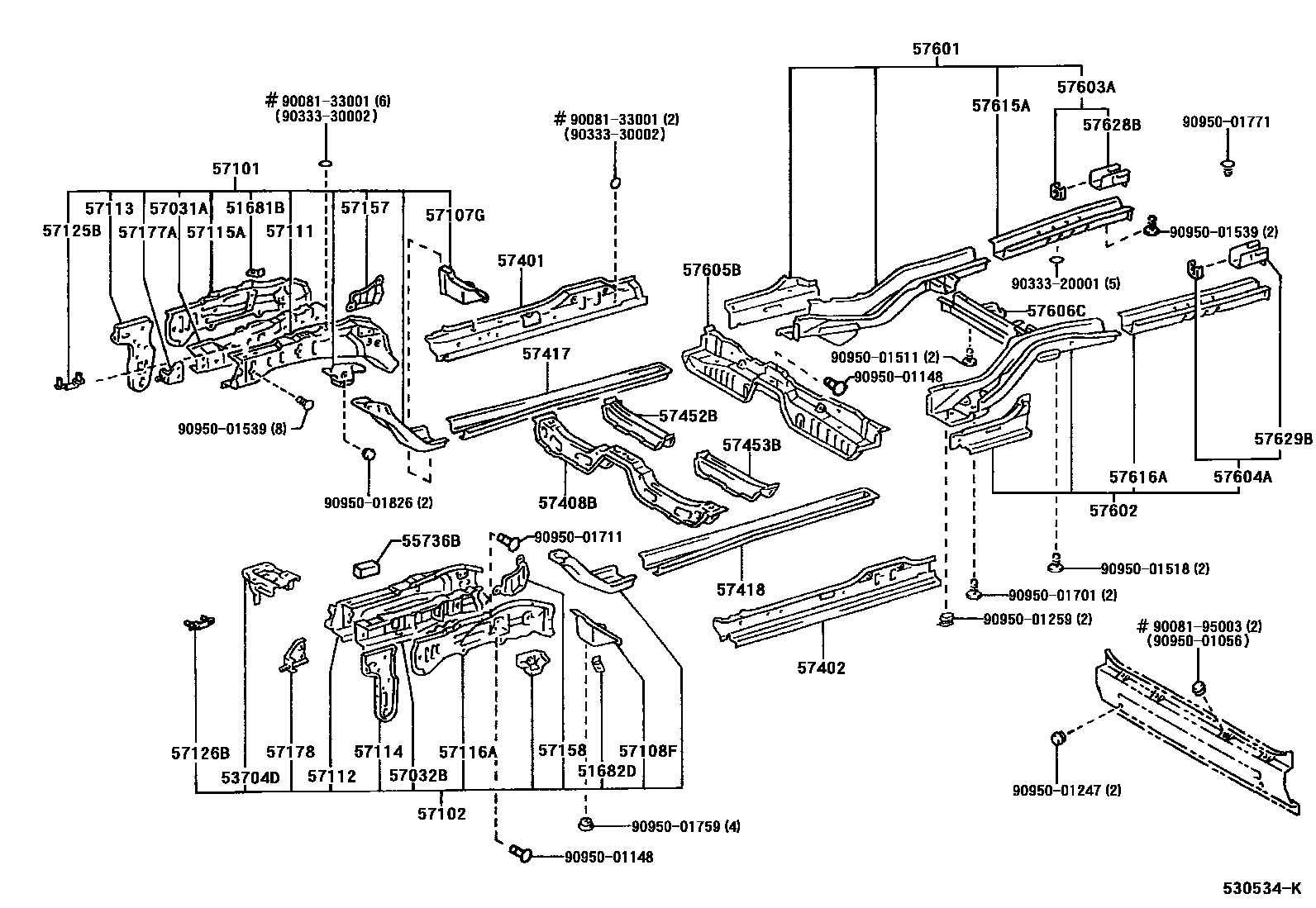

55 parts on this diagram · 1 diagram in section
