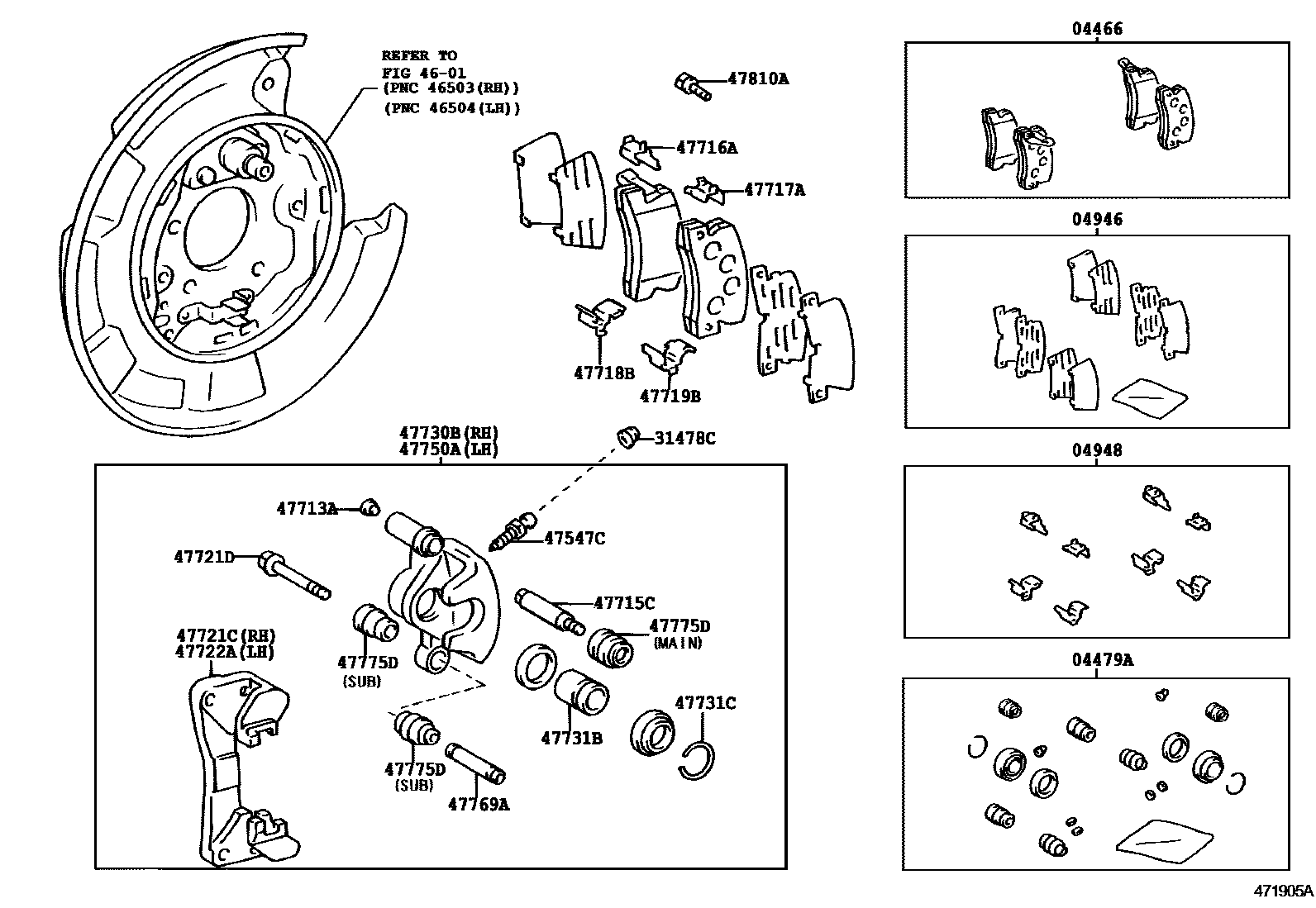

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04466PAD KIT, DISC BRAKE, REAR

main04466-02010iAZT220,CDT220,ST220,ZZT22#200107-200301

MARK AK PA511

main04466-20100iAT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI200001-200007

MARK AK PA511

main04466-20130iAZT220,CDT220,ST220,ZZT22#200007-200107

MARK AK PA511

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-02070iAZT220,CDT220,ST220,ZZT22#200107

main04479-33020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-32070iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

04948FITTING KIT, DISC BRAKE, REAR

main04948-02010iAZT220,CDT220,ST220,ZZT22#200107

main04948-33010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001

4601PARKING BRAKE & CABLE

→ Go to FIG 46-01

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-02090iAZT220,CDT220,ST220,ZZT22#200107

main47547-20010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

47713APLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)

main90950-01538iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-33020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-33070iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-33050iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47718-33010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47719-33010iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-09100iAZT220,CDT220,ST220,ZZT22#200107

main47721-20321iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90119-08A98iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

*8-1.25PX68-30

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-09100iAZT220,CDT220,ST220,ZZT22#200107

main47721-20321iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-05040iAZT220,CDT220,ST220,ZZT22#200107

main47730-33061iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

47731BPISTON, REAR DISC BRAKE

main47731-30120iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90520-52006iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-05040iAZT220,CDT220,ST220,ZZT22#200107

main47750-33061iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-32020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-16020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

SUB PIN SIDE

main47775-32020iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001-200107

MAIN PIN SIDE

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iAT22#,AZT220,CDT220,CT220,ST220,ZZT22#..D4,DCR,EFI,TDEFI200001

23 parts on this diagram · 2 diagrams in section
