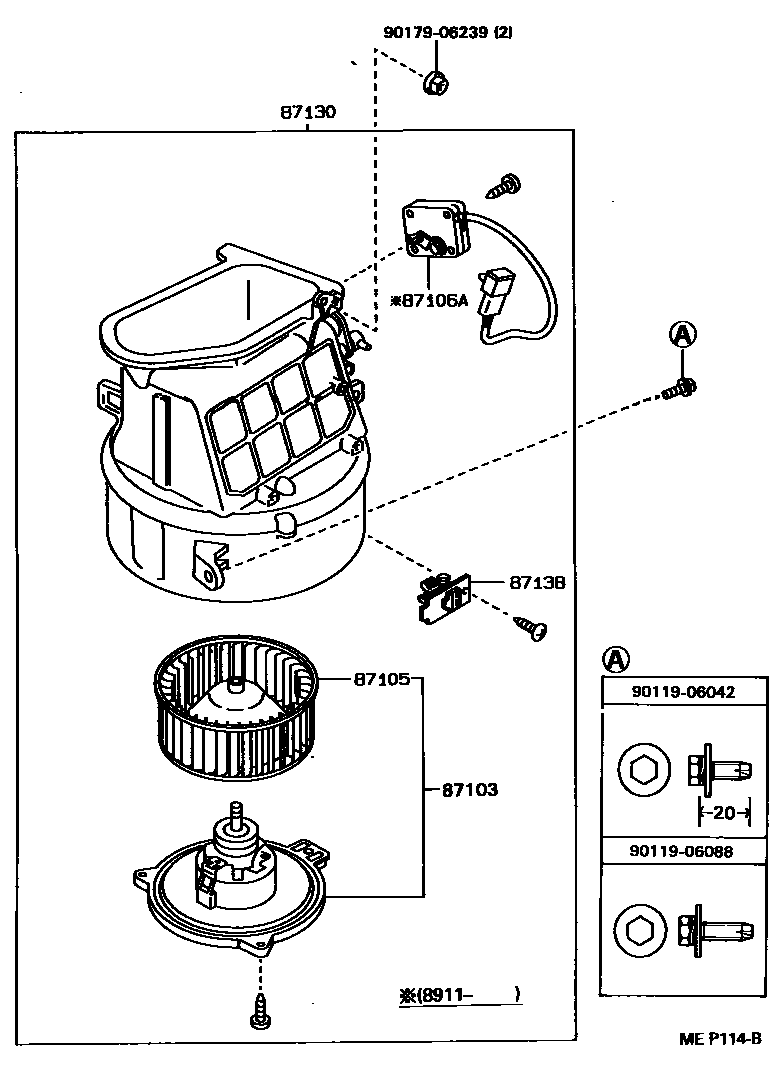

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1BLOWER 0002 1RADIATOR

87103MOTOR SUB-ASSY, HEATER BLOWER, W/FAN

main87103-20020iAT171,CT170,ST171..RHD198712-199107

main87103-20030iAT171,CT170,ST171..LHD198712-199107

main87103-26010iAT171,CT170,ST171..RHD199107-199211

main87103-26020iAT171,CT170,ST171..LHD199107-199211

87105FAN SUB-ASSY, HEATER BLOWER

main87105-20100iAT171,CT170,ST171..RHD198712-199211

main87105-20110iAT171,CT170,ST171..LHD198712-199211

87106ASERVO SUB-ASSY, DAMPER

main87106-20100iAT171,ST171..RHD..GL; CT170..GL198911-199106

BLOWER; W(*PHC),BLOWER

main87106-20180iAT171,ST171..RHD..GL; CT170..GL198911-199008

NO.1,HEATER RADIATOR; W(*PHC),NO.1,HEATER RADIATOR

87130BLOWER ASSY, HEATER, FRONT

main87130-20340iAT171,CT170,ST171..RHD198712-199211

main87130-20360iAT171,CT170,ST171..RHD..GL198911-199211

W(*PHC)

main87130-20380iAT171,CT170,ST171..LHD198712-199211

87138RESISTOR, HEATER BLOWER

main87138-20130iAT171,CT170,ST171198712-199211

9011906042

main90119-06042

9011906088

main90119-06088

9017906239

main90179-06239

8 parts on this diagram · 2 diagrams in section
