SWITCH & RELAY & COMPUTER
28371RELAY, IGNITION, NO.1
82600FFUSE, FUSE BLOCK
30A,GREEN,30A
10A
main90982-09003iAT171..GL..G..CBR; ST171..GL..G; ST171..LHD..GL; ST171..XL;AT171..XL..G..CBR198902-198911
15A
20A,YELLOW
7.5A
82616PULLER, FUSE
82643RELAY, DIM-DIP LAMP
UNITED KINGDOM SPEC,NO.1
UNITED KINGDOM SPEC,NO.1
UNITED KINGDOM SPEC,NO.2
UNITED KINGDOM SPEC,NO.3
82660CBLOCK ASSY, RELAY
82671ABLOCK, JUNCTION
NO.4
main82671-20100iCT170..LHD;AT171..SED..4FC..XL..W;AT171..LHD..(LB,WG)..XL..W; CT170..RHD;AT171..RHD..XL;AT171,ST171..GL;AT171..SED..5F..XL..W; ST171..4FC..XL;AT171..XL..G..CBR198712-198902
NO.1
NO.3
main82671-20120iAT171..(LB,SED)..XL..EFI; AT171..GL..EFI; AT171..LHD..4FC..GL; AT171..LHD..LB..5F..GL..CBR; AT171..LHD..SED..GL..CBR; AT171..LHD..SED..XL..CBR; CT170..LHD..(LB,SED);AT171..LHD..LB..XL..CBR; ST171..SED..5F..G198911-199203
NO.3; W(*66) OR W(*EL & 2SPEAKER) OR W(*MR & 2SPEAKER) OR W(*EL & DAYTIME RUNNING-LIGHTSYSTEM),NO.3; W(*66) OR W(*EL & 2SPEAKER) OR W(*MR & 2SPEAKER) OR W(MW/FM RADIO),NO.3; W(2DIN RADIO & *EL & *TAC) OR W(2DIN RADIO & *MR & *TAC),NO.3; W(DAYTIME RUNNING-LIGHT STSTEM & *TAC) OR W(*EL & *TAC) OR W(*MR & *TAC),NO.3
main82671-20140iAT171,CT170..LHD..XL..(DSL,EFI); AT171..SED..4FC..XL..W;AT171..LHD..(LB,WG)..XL..W; AT171..SED..5F..XL..W; AT171..WG..5F..G..CBR; ST171..XL;AT171..4FC..XL..G;AT171..(LB,SED)..5F..XL..G..CBR198902-198904
NO.3
ANNEX 25
NO.2; W(55D23L-MF BATTERY),NO.2
NO.2
82672ACOVER, JUNCTION BLOCK
NO.2,LWR
NO.2,UPR; UNITED KINGDOM SPEC,NO.2,UPR
NO.2,UPR; UNITED KINGDOM SPEC,NO.2,UPR
NO.2,UPR; UNITED KINGDOM SPEC,NO.2,UPR
NO.2,UPR; UNITED KINGDOM SPEC,NO.2,UPR
NO.3
NO.3
NO.1
NO.1
NO.2,UPR
NO.2,UPR
NO.2; UNITED KINGDOM SPEC,NO.2
NO.2; UNITED KINGDOM SPEC,NO.2
NO.2
UNITED KINGDOM SPEC,NO.1
NO.2; UNITED KINGDOM SPEC,NO.2
NO.2
NO.2,UPR
NO.2,UPR
W(LEAN BURN SPEC),NO.2,UPR
NO.2,UPR; UNITED KINGDOM SPEC,NO.2,UPR
NO.2,UPR
82821BCOVER, CONNECTOR
83391SWITCH, VACUUM
NO.1
NO.2
83420GAGE ASSY, WATER TEMPERATURE SENDER
83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
84210SWITCH ASSY, BACK-UP LAMP
84540SWITCH ASSY, NEUTRAL START
85335SWITCH ASSY, WASHER LEVEL WARNING
85430VALVE, OUTER VENT CONTROL
85916RELAY, LIGHT CONTROL
TAIL LAMP,MARUKO
RR FOG LAMP,*ND
HEADLAMP
85926RELAY, HEADLAMP DIMMER
85927RELAY, COOLING FAN
85931RELAY, EMISSION CONTROL
88630GRELAY ASSY, COOLER
MB4 TYPE
M4 TYPE
MB4 TYPE
main88630-32010iAT171,CT170,ST171..RHD; AT171,CT170..LHD..(CBR,DSL); AT171,ST171..LHD..EFI198911-199211
MB5 TYPE
main90987-02004iCT170..LHD; CT170..RHD; ST171..LHD..W; ST171..RHD;AT171,ST171..GL..G..EFI198712-198801
M4 TYPE
89427SWITCH, TEMPERATURE DETECT
89428SWITCH, TEMPERATURE DETECT, NO.2
ENGINE
ENGINE
89437COVER, SENSOR
89453SWITCH, THROTTLE POSITION (FOR T.C.S.)
89465SENSOR, OXYGEN
89466GASKET, OXYGEN SENSOR
9011906159
main90119-06159
9017908059
main90179-08059
9043018007
main90430-18007
9165140620
main91651-40620
9165140814
main91651-40814
9166140620
main91661-40620

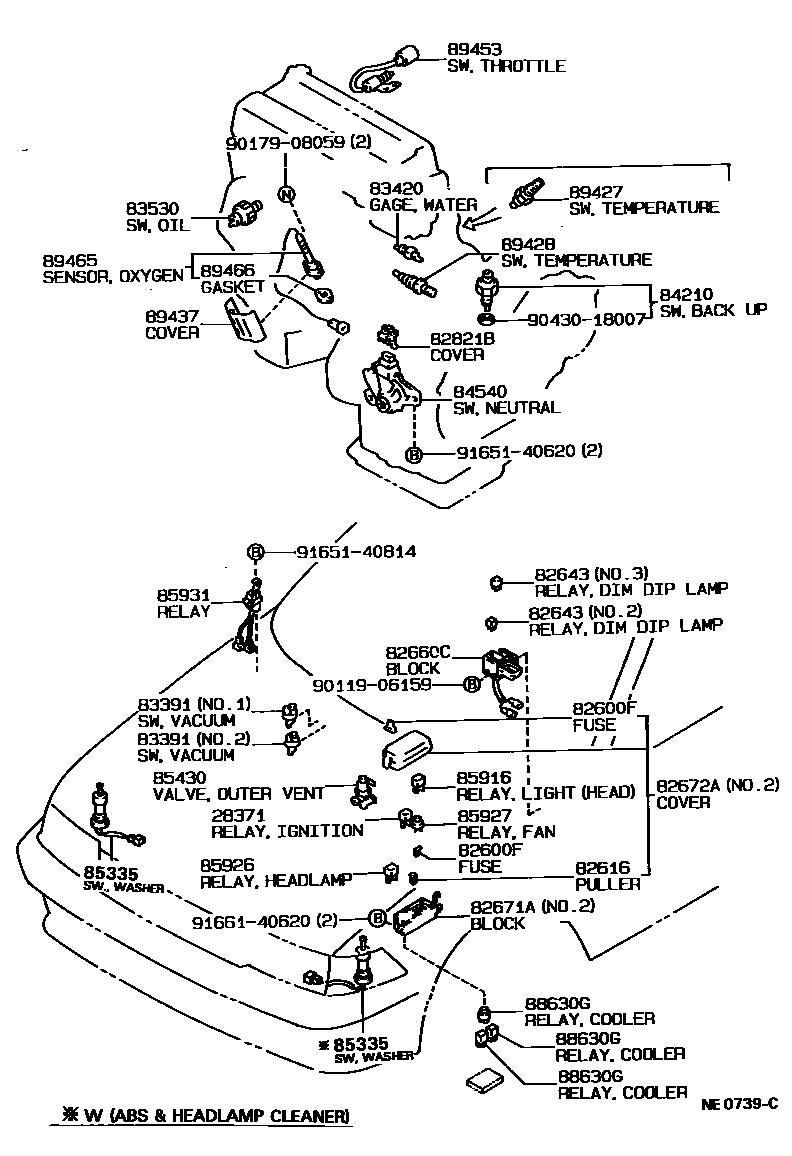

32 parts on this diagram · 10 diagrams in section
