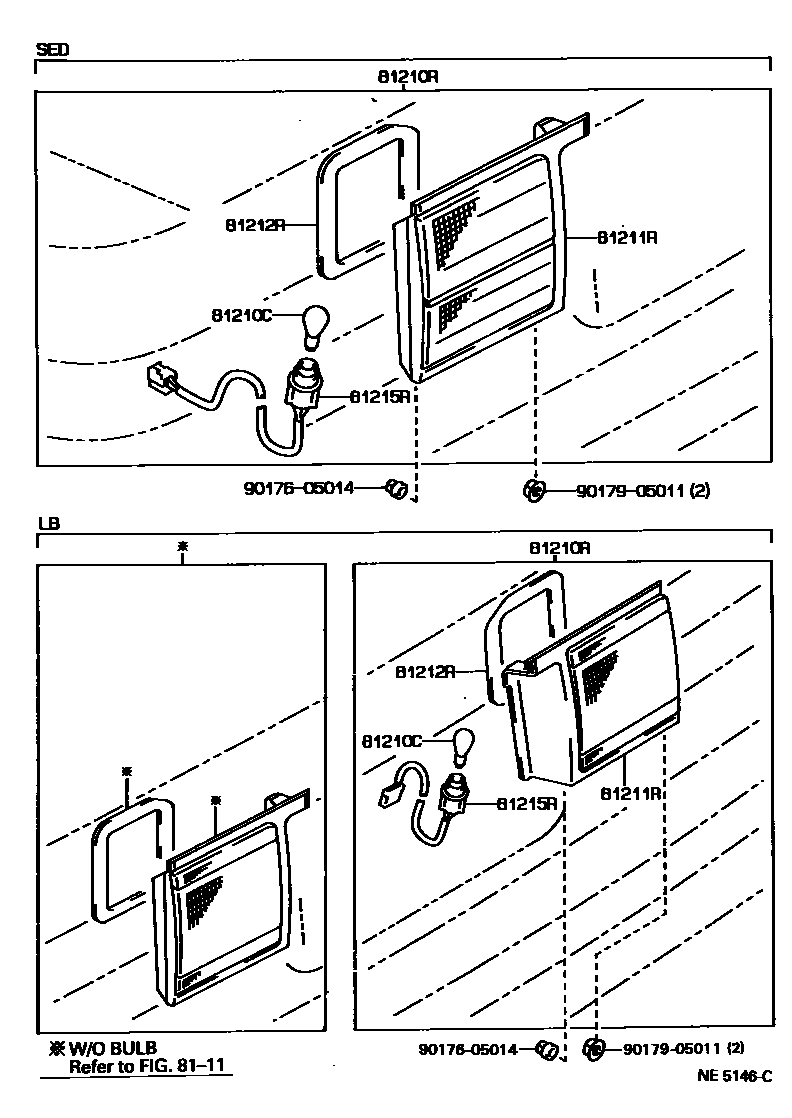

REAR FOG LAMP

8111REAR COMBINATION LAMP

→ Go to FIG 81-11

81210CBULB, REAR FOG LAMP

main99132-11210iAT171,CT170,ST171..LB,SED198712-199203

12V 21W

81210RLAMP ASSY, REAR FOG

main81210-20060iAT171,CT170,ST171..RHD..SED198712-199203

main81210-20070iAT171,CT170,ST171..RHD..LB198712-199203

RH

main81220-20050iAT171,CT170,ST171..LHD..SED198712-199203

main81220-20060iAT171,CT170,ST171..LHD..LB198712-199203

LH

81211RLENS, REAR FOG LAMP

main81211-20060iAT171,CT170,ST171..RHD..SED198712-199203

main81211-20070iAT171,CT170,ST171..RHD..LB198712-199203

RH

main81221-20050iAT171,CT170,ST171..LHD..SED198712-199203

main81221-20060iAT171,CT170,ST171..LHD..LB198712-199203

LH

81212RGASKET, REAR FOG LAMP, NO.1

main81674-20130×2iAT171,ST171..RHD..LB; AT171..4FC..EFI; AT171..4FC..XL..CBR; AT171..LB..EFI; AT171..LHD..4FC..GL; AT171..LHD..LB..5F..CBR; AT171..LHD..SED..5F..CBR; AT171..RHD..SED; AT171..SED..5F..EFI; CT170,ST171..SED; CT170..LB; ST171..LB..4FC..G; ST171..LHD..LB..5F198911-199203

main81684-20090iAT171,CT170,ST171..LB; AT171,CT170,ST171..LHD..SED198712-198801

LH

81215RSOCKET & WIRE, REAR FOG LAMP

main81215-20060iAT171,CT170,ST171..SED198712-199203

main81215-20070iAT171,CT170,ST171..LB198712-199203

9017605014

main90176-05014

9017905011

main90179-05011

8 parts on this diagram · 1 diagram in section
