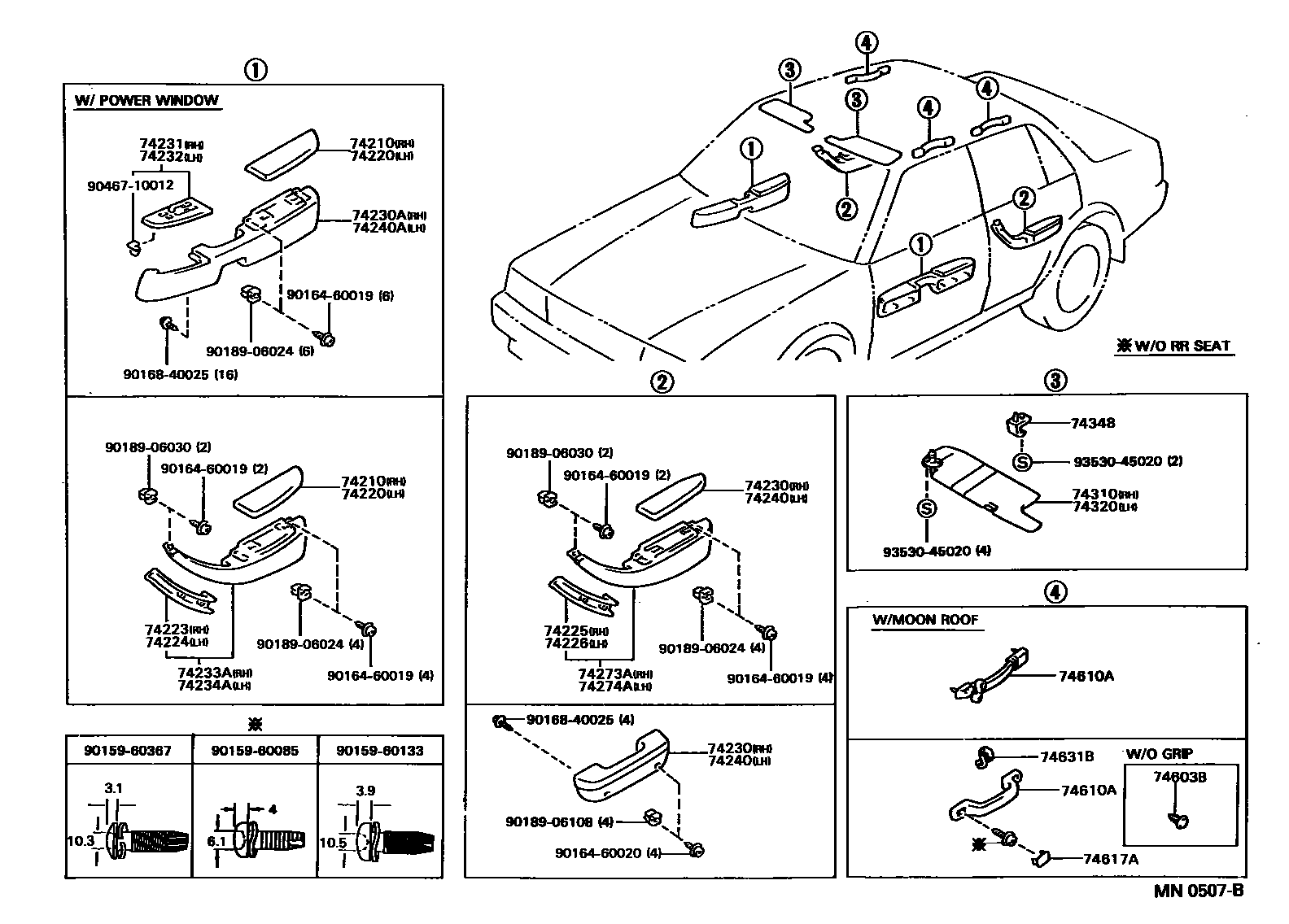

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
GRAY,TRIM1#
BLUE,BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
74220ARMREST ASSY, FRONT, LH
main74220-20150-03iST171..5F;AT171..LHD..5F..W;AT171..RHD..(LB,SED)..5F;AT171,ST171..(LB,SED)..4FC;AT171,CT170..(LB,SED)..5F..G;AT171,CT170..LHD..WG..(DSL,EFI)198806-198911
GRAY,TRIM1#
BLUE,BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
74223CAP, DOOR ARMREST, RH
GRAY,TRIM1#
main74223-20040-04iAT171..LHD..WG; ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED198712-198911
BLUE,BLUE,TRIM8#; BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
74224CAP, DOOR ARMREST, LH
main74224-20040-03iAT171..LHD..WG; ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED198712-198911
GRAY,GRAY,TRIM1#; GRAY,TRIM1#
main74224-20040-04iAT171..LHD..WG; ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED198712-198911
BLUE,BLUE,TRIM8#; BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
74225CAP, DOOR ARMREST, REAR RH
main74225-20030-03iAT171..LHD..WG; ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED198712-198911
GRAY,GRAY,TRIM1#; GRAY,TRIM1#
main74225-20030-04iAT171..LHD..WG; ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED198712-198911
BLUE,BLUE,TRIM1#; BLUE,TRIM8#
main74225-20030-06iAT171,CT170..SED..XL; CT170..LB;AT171..LB..XL;CT170..SED..GL;AT171,ST171..(LB,SED)..GL199008-199011
SABLE,TRIM4#
DARK BLUE,TRIM8#
74226CAP, DOOR ARMREST, REAR LH
main74226-20020-03iAT171..LHD..WG; ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED198712-198911
GRAY,GRAY,TRIM1#; GRAY,TRIM1#
main74226-20020-04iAT171..LHD..WG; ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED198712-198911
BLUE,BLUE,TRIM8#; BLUE,TRIM8#
main74226-20020-06iAT171,CT170..SED..XL; CT170..LB;AT171..LB..XL;CT170..SED..GL;AT171,ST171..(LB,SED)..GL199008-199011
SABLE,TRIM4#
DARK BLUE,TRIM8#
74230ARMREST ASSY, REAR, RH
main74250-20060-03iAT171..LHD..WG; ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB..XL;AT171,CT170..(LB,SED)..GL198712-198911
GRAY,GRAY,TRIM1#; GRAY,TRIM1#
main74250-20060-04iAT171,CT170..SED..XL; AT171..LHD..WG; ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB..XL;AT171,CT170..(LB,SED)..GL198712-198911
BLUE,BLUE,TRIM8#; BLUE,TRIM8#; W(*PW) OR W(SPLIT REAR SEAT),BLUE,TRIM8#
W(*PW) OR W(SPLIT REAR SEAT),SABLE,TRIM4#
main74250-20060-14iAT171,CT170..SED..XL; ST171;CT170..RHD;AT171..LB,WG;AT171..SED..GL;CT170..LHD..(LB,WG)198911-199008
DARK BLUE,TRIM8#; W(*PW) OR W(SPLIT REAR SEAT),DARK BLUE,TRIM8#
GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
DK.BLUE,TRIM8#
74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH
GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM1#
SABLE,TRIM4#
DARK BLUE,TRIM8#
74231PANEL, FRONT ARMREST BASE, UPPER RH
GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
74232PANEL, FRONT ARMREST BASE, UPPER LH
GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
74233APANEL, FRONT DOOR ARMREST BASE, LOWER RH
GRAY,TRIM1#
BLUE,BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
74234APANEL, FRONT DOOR ARMREST BASE, LOWER LH
GRAY,TRIM1#
BLUE,BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
74240ARMREST ASSY, REAR, LH
GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
DK.BLUE,TRIM8#
W(*PW) OR W(SPLIT REAR SEAT),GRAY,TRIM1#
main74260-20050-04iAT171,CT170..SED..XL; AT171..LHD..WG; ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB..XL;AT171,CT170..(LB,SED)..GL198712-198911
BLUE,BLUE,TRIM8#; BLUE,TRIM8#; W(*PW) OR W(SPLIT REAR SEAT),BLUE,TRIM8#
W(*PW) OR W(SPLIT REAR SEAT),SABLE,TRIM4#
main74260-20050-14iAT171,CT170..SED..XL; ST171;CT170..RHD;AT171..LB,WG;AT171..SED..GL;CT170..LHD..(LB,WG)198911-199008
DARK BLUE,TRIM8#; W(*PW) OR W(SPLIT REAR SEAT),DARK BLUE,TRIM8#
74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH
GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM1#
SABLE,TRIM4#
DARK BLUE,TRIM8#
74273APANEL, REAR DOOR ARMREST BASE, LOWER RH
main74273-20030-03iAT171,CT170,ST171..WG; AT171,CT170..LHD..(LB,SED)..(CBR,DSL); AT171,CT170..RHD..(LB,SED); AT171..(LB,SED)..EFI; ST171..LHD..GL; ST171..RHD198712-198911
GRAY,TRIM1#
main74273-20030-04iAT171,CT170,ST171..WG; AT171,CT170..LHD..(LB,SED)..(CBR,DSL); AT171,CT170..RHD..(LB,SED); AT171..(LB,SED)..EFI; ST171..LHD..GL; ST171..RHD198712-198911
BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
74274APANEL, REAR DOOR ARMREST BASE, LOWER LH
main74274-20030-03iAT171,CT170,ST171..WG; AT171,CT170..LHD..(LB,SED)..(CBR,DSL); AT171,CT170..RHD..(LB,SED); AT171..(LB,SED)..EFI; ST171..LHD..GL; ST171..RHD198712-198911
GRAY,TRIM1#
main74274-20030-04iAT171,CT170,ST171..WG; AT171,CT170..LHD..(LB,SED)..(CBR,DSL); AT171,CT170..RHD..(LB,SED); AT171..(LB,SED)..EFI; ST171..LHD..GL; ST171..RHD198712-198911
BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
74310VISOR ASSY, RH
SWEDEN SPEC,GRAY,TRIM1#
SWEDEN SPEC,BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
GRAY,TRIM1#; SWEDEN SPEC & W(MOON ROOF),GRAY,TRIM1#; SWEDEN SPEC,GRAY,TRIM1#
BLUE,TRIM8#; SWEDEN SPEC & W(MOON ROOF),BLUE,TRIM8#; SWEDEN SPEC,BLUE,TRIM8#
SWEDEN SPEC,SABLE,TRIM4#; W(MOON ROOF),SABLE,TRIM4#
DARK BLUE,TRIM8#; W(MOON ROOF),DARK BLUE,TRIM8#
W(MOON ROOF),GRAY,TRIM1#
main74310-20690-04iAT171,ST171..LHD..GL; AT171,ST171..WG..5F..EFI;AT171,CT170..(LB,SED)..XL198712-198911
BLUE,TRIM8#; W(MOON ROOF),BLUE,TRIM8#
SABLE,TRIM4#; W(MOON ROOF),SABLE,TRIM4#
DARK BLUE,TRIM8#
74320VISOR ASSY, LH
GRAY,TRIM1#
SABLE,TRIM4#
DARK BLUE,TRIM8#
GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
DARK BLUE,TRIM8#
GRAY,TRIM1#; W(MOON ROOF),GRAY,TRIM1#
BLUE,TRIM8#
W(MOON ROOF),SABLE,TRIM4#
DARK BLUE,TRIM8#; W(MOON ROOF),DARK BLUE,TRIM8#
SWEDEN SPEC & W(MOON ROOF),GRAY,TRIM1#; W(MOON ROOF),GRAY,TRIM1#
main74320-20660-04iAT171,ST171..LHD..GL; AT171,ST171..WG..5F..EFI;AT171,CT170..(LB,SED)..XL; ST171..4FC..XL198712-198911
BLUE,TRIM8#; SWEDEN SPEC & W(MOON ROOF),BLUE,TRIM8#; W(MOON ROOF),BLUE,TRIM8#
SABLE,TRIM4#; W(MOON ROOF),SABLE,TRIM4#
W(MOON ROOF),DARK BLUE,TRIM8#
74348HOLDER, VISOR
main74348-12020-03×2iST171..4FC..XL; ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED198712-198911
LIGHT GRAY,TRIM1#
main74348-12020-04×2iST171..4FC..XL; ST171..5F;AT171..WG..EFI;ST171..4FC..GL;AT171,CT170..LB,SED198712-198911
LIGHT BLUE,TRIM8#
SABLE,TRIM4#
LIGHT BLUE,TRIM8#
74603BCLIP (FOR ASSIST GRIP)
74610AGRIP SUB-ASSY, ASSIST
W(MOON ROOF),DEEP BLUE,TRIM8#
W(MOON ROOF),SHADOW GRAY,TRIM1#
W(MOON ROOF),SABLE,TRIM4#
W(MOON ROOF),DARK BLUE,TRIM8#
SABLE,TRIM4#
BLUE,TRIM8#
LIGHT BLUE,TRIM8#
GRAY,TRIM1#
74617APLUG, ASSIST GRIP
DEEP BLUE,TRIM8#
SABLE,TRIM4#
W/O(REAR SEAT),LIGHT GRAY,TRIM1#
W/O(REAR SEAT),LIGHT BLUE,TRIM8#
74631BHOOK, COAT
BLUE,TRIM8#
SABLE,TRIM4#
GRAY,TRIM1#
GRAY,TRIM1#
DARK BLUE,TRIM8#
SABLE,TRIM4#
9015960085
main90159-60085
9015960133
main90159-60133
9015960367
main90159-60367
9016460019
main90164-60019
9016460020
main90164-60020
9016840025
main90168-40025
9018906024
main90189-06024
9018906030
main90189-06030
9018906108
main90189-06108
9046710012
main90467-10012
9353045020
main93530-45020
34 parts on this diagram · 1 diagram in section
