SIDE MEMBER
58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58331EBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58741BPROTECTOR, QUARTER PANEL, RH
W(CHIPPING TAPE)
W(CHIPPING TAPE)
58742BPROTECTOR, QUARTER PANEL, LH
W(CHIPPING TAPE)
W(CHIPPING TAPE)
58791ACARRIER, JACK
61021CPILLAR SUB-ASSY, FRONT BODY, RH
W(POWER WINDOW OR ELECTROMAGNETIC LOCK)
61022CPILLAR SUB-ASSY, FRONT BODY, LH
W(POWER WINDOW OR ELECTROMAGNETIC LOCK OR DOOR MIRROR(ELECT)); W(POWER WINDOW OR ELECTROMAGNETIC LOCK)
W(POWER WINDOW OR ELECTROMAGNETIC LOCK)
61211RAIL, ROOF SIDE, OUTER RH
W(ROOF RAIL)
61212RAIL, ROOF SIDE, OUTER LH
W(ROOF RAIL)
61231RAIL, ROOF SIDE, INNER RH
W(MOON ROOF)
61232RAIL, ROOF SIDE, INNER LH
W(MOON ROOF)
61311BPILLAR, CENTER BODY, OUTER RH
61312BPILLAR, CENTER BODY, OUTER LH
61343APILLAR, CENTER BODY, INNER RH
61344APILLAR, CENTER BODY, INNER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61611PANEL, QUARTER, RH
W(REAR SPOILER)
61612PANEL, QUARTER, LH
W(REAR SPOILER)
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
61625EEXTENSION, QUARTER PANEL, INNER REAR RH
61626EEXTENSION, QUARTER PANEL, INNER REAR LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
W(SPLIT REAR SEAT)
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
W(FABRIC SEAT)
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61643GUSSET, QUARTER WHEEL HOUSE CENTER, RH
U.S.S.R. SPEC
61645BGUSSET, QUARTER WHEEL HOUSE, REAR RH
61646BGUSSET, QUARTER WHEEL HOUSE, REAR LH
61667DSEAL, QUARTER PANEL
RH
LH
61731BPANEL, ROOF SIDE, INNER RH
W(MOON ROOF & 3-POINT REAR SEAT BELT)
W(MOON ROOF)
W(3-POINT REAR SEAT BELT)
W(MOON ROOF)
W(3-POINT REAR SEAT BELT)
W(MOON ROOF & 3-POINT REAR SEAT BELT)
61732BPANEL, ROOF SIDE, INNER LH
W(MOON ROOF & 3-POINT REAR SEAT BELT)
W(MOON ROOF)
W(3-POINT REAR SEAT BELT)
W(MOON ROOF)
W(MOON ROOF)
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61824PLATE, NOISE CONTROL, NO.1
OD=60
OD=60
OD=45
61825APLATE, NOISE CONTROL, NO.2
85 X 105
60 X 90
70 X 90
50 X 360
61826APLATE, NOISE CONTROL, NO.3
61838BPLATE, NOISE CONTROL, NO.5
62151BPAD, COWL SIDE SILENCER
OD=90,L=80
65 X 65
70 X 70
62475BSEAL, ROOF SIDE, INNER
62553DPAD, PILLAR, NO.3
64121EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH
64122EBRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH
66243APROTECTOR, REAR BODY, NO.1
9011906101
main90119-06101
9054109064
main90541-09064
9095001006
main90950-01006
9095001025
main90950-01025
9095001027
main90950-01027
9095001056
main90950-01056
9095001266
main90950-01266
9095001638
main90950-01638

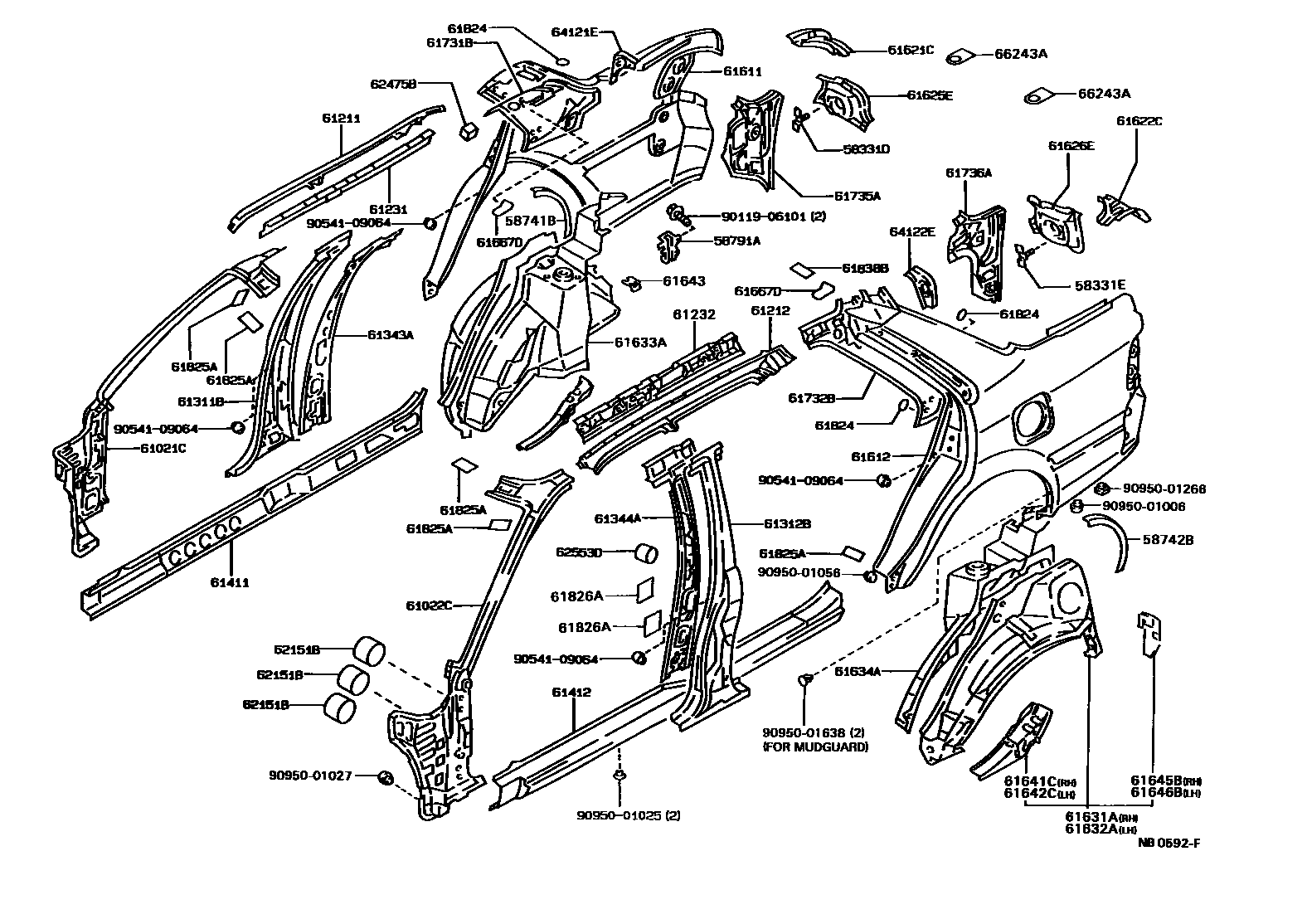

55 parts on this diagram · 3 diagrams in section
