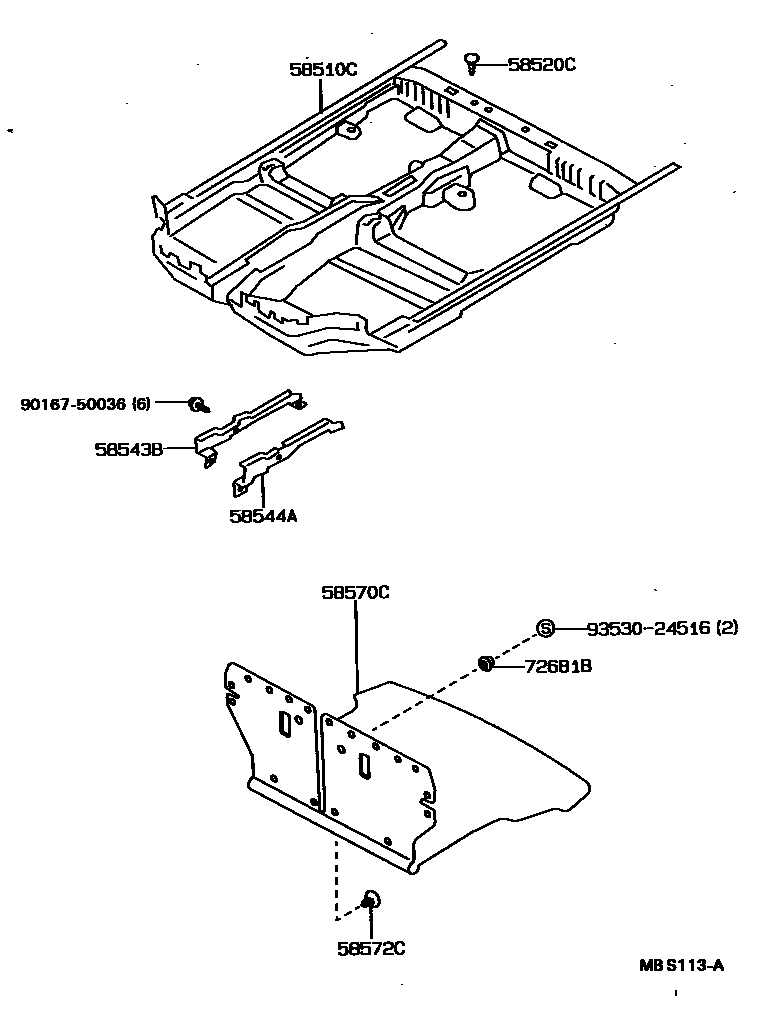

MAT & CARPET

0001 1 0002 1

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-2B280-03iAT171,ST171..LHD..SED..GL198712-198911

GRAY,TRIM1#

main58510-2B280-04iAT171,ST171..LHD..SED..GL198712-198911

BLUE,TRIM8#

main58510-2B280-06iAT171,ST171..LHD..SED..GL198712-198911

SABLE,TRIM4#

main58510-2B281-03iAT171,ST171..LHD..SED..GL198911-199203

GRAY,TRIM1#

main58510-2B281-04iAT171,ST171..LHD..SED..GL198911-199203

DARK BLUE,TRIM8#

main58510-2B281-06iAT171,ST171..LHD..SED..GL198911-199203

SABLE,TRIM4#

main58510-2B290-03iAT171,ST171..LHD..SED..GL198712-198911

COLD SPEC & W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-2B290-04iAT171,ST171..LHD..SED..GL198712-198911

COLD SPEC & W(HEATER REAR DUCT),BLUE,TRIM8#

main58510-2B290-06iAT171,ST171..LHD..SED..GL198712-198911

COLD SPEC & W(HEATER REAR DUCT),SABLE,TRIM4#

main58510-2B291-03iAT171,ST171..LHD..SED..GL198911-199203

COLD SPEC & W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-2B291-04iAT171,ST171..LHD..SED..GL198911-199203

COLD SPEC & W(HEATER REAR DUCT),DARK BLUE,TRIM8#

main58510-2B291-06iAT171,ST171..LHD..SED..GL198911-199203

COLD SPEC & W(HEATER REAR DUCT),SABLE,TRIM4#

main58510-2B300-03iAT171,CT170..RHD..SED198712-198911

COLD SPEC & W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-2B300-04iAT171,CT170..RHD..SED198712-198911

COLD SPEC & W(HEATER REAR DUCT),BLUE,TRIM8#

main58510-2B300-06iAT171,CT170..RHD..SED198712-198911

COLD SPEC & W(HEATER REAR DUCT),SABLE,TRIM4#

main58510-2B301-03iAT171,CT170,ST171..RHD..SED..GL198911-199203

COLD SPEC & W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-2B301-04iAT171,CT170,ST171..RHD..SED..GL198911-199203

COLD SPEC & W(HEATER REAR DUCT),DARK BLUE,TRIM8#

main58510-2B301-06iAT171,CT170,ST171..RHD..SED..GL198911-199203

COLD SPEC & W(HEATER REAR DUCT),SABLE,TRIM4#

main58510-2B330-03iAT171,CT170,ST171..RHD..(LB,WG)..GL198712-198805

GRAY,TRIM1#

main58510-2B330-04iAT171,CT170,ST171..RHD..LB198807-198911

BLUE,TRIM8#

main58510-2B330-06iAT171..LB..XL..EFI;AT171,CT170,ST171..RHD..LB198712-198807

SABLE,TRIM4#

main58510-2B331-03iAT171,CT170,ST171..RHD..LB..GL198911-199203

GRAY,TRIM1#

main58510-2B331-04iAT171,CT170,ST171..RHD..LB..GL198911-199203

DARK BLUE,TRIM8#

main58510-2B331-06iAT171,CT170,ST171..RHD..LB..GL198911-199203

SABLE,TRIM4#

main58510-2B340-03iAT171,CT170..LB..XL..(CBR,DSL)198712-198807

COLD SPEC & W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-2B340-04iAT171,CT170,ST171..LHD..WG198712-198805

W(HEATER REAR DUCT),BLUE,TRIM8#

main58510-2B340-06iAT171,CT170..LHD..LB..XL198911-199203

COLD SPEC & W(HEATER REAR DUCT),SABLE,TRIM4#

main58510-2B340-14iAT171,CT170..LHD..LB..XL198911-199203

COLD SPEC & W(HEATER REAR DUCT),DARK BLUE,TRIM8#

main58510-2B350-03iAT171,CT170..LHD..LB..XL198807-199203

GRAY,TRIM1#

main58510-2B350-04iAT171,CT170..LB..XL..(CBR,DSL)198805-198807

BLUE,TRIM8#

main58510-2B350-06iAT171,CT170..LHD..LB..XL198807-199203

SABLE,TRIM4#

main58510-2B350-14iAT171,CT170..LHD..LB..XL198911-199203

DARK BLUE,TRIM8#

main58510-2B360-03iAT171,ST171..LHD..LB..GL198712-198911

GRAY,TRIM1#

main58510-2B360-04iAT171,ST171..LHD..LB..GL198712-198911

BLUE,TRIM8#

main58510-2B360-06iAT171,ST171..LHD..LB..GL198712-198911

SABLE,TRIM4#

main58510-2B361-03iAT171,ST171..LHD..LB..GL198911-199203

GRAY,TRIM1#

main58510-2B361-04iAT171,ST171..LHD..LB..GL198911-199203

DARK BLUE,TRIM8#

main58510-2B361-06iAT171,ST171..LHD..LB..GL198911-199203

SABLE,TRIM4#

main58510-2B370-03iAT171,ST171..LHD..LB..GL198712-198911

COLD SPEC & W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-2B370-04iAT171,ST171..LHD..LB..GL198712-198911

COLD SPEC & W(HEATER REAR DUCT),BLUE,TRIM8#

main58510-2B370-06iAT171,ST171..LHD..LB..GL198712-198911

COLD SPEC & W(HEATER REAR DUCT),SABLE,TRIM4#

main58510-2B371-03iAT171,ST171..LHD..LB..GL198911-199203

COLD SPEC & W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-2B371-04iAT171,ST171..LHD..LB..GL198911-199203

COLD SPEC & W(HEATER REAR DUCT),DARK BLUE,TRIM8#

main58510-2B371-06iAT171,ST171..LHD..LB..GL198911-199203

COLD SPEC & W(HEATER REAR DUCT),SABLE,TRIM4#

main58510-2B380-03iAT171,CT170,ST171..RHD..LB198712-198911

COLD SPEC & W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-2B380-04iAT171..WG..GL198712-198805

W(HEATER REAR DUCT),BLUE,TRIM8#

main58510-2B380-06iAT171,CT170,ST171..RHD..LB198712-198911

COLD SPEC & W(HEATER REAR DUCT),SABLE,TRIM4#

main58510-2B381-03iAT171,CT170,ST171..RHD..LB..GL198911-199203

COLD SPEC & W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-2B381-04iAT171,CT170,ST171..RHD..LB..GL198911-199203

COLD SPEC & W(HEATER REAR DUCT),DARK BLUE,TRIM8#

main58510-2B381-06iAT171,CT170,ST171..RHD..LB..GL198911-199203

COLD SPEC & W(HEATER REAR DUCT),SABLE,TRIM4#

main58510-2B460-03iAT171,CT170..RHD..SED198712-198911

GRAY,TRIM1#

main58510-2B460-04iAT171,CT170..RHD..SED198712-198911

BLUE,TRIM8#

main58510-2B460-06iAT171,CT170..RHD..SED198712-198911

SABLE,TRIM4#

main58510-2B461-03iAT171,CT170,ST171..RHD..SED..GL198911-199203

GRAY,TRIM1#

main58510-2B461-04iAT171,CT170,ST171..RHD..SED..GL198911-199203

DARK BLUE,TRIM8#

main58510-2B461-06iAT171,CT170,ST171..RHD..SED..GL198911-199203

SABLE,TRIM4#

main58510-2B470-03iAT171,CT170..SED..XL198712-198911

COLD SPEC & W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-2B470-04iAT171,CT170..SED..XL198712-198911

COLD SPEC & W(HEATER REAR DUCT),BLUE,TRIM8#

main58510-2B470-06iAT171,CT170..SED..XL198712-198911

COLD SPEC & W(HEATER REAR DUCT),SABLE,TRIM4#

main58510-2B470-14iAT171,CT170..LHD..SED..XL198911-199203

COLD SPEC & W(HEATER REAR DUCT),DARK BLUE,TRIM8#

main58510-2B590-03iAT171,CT170..RHD..SED..XL198911-199203

GRAY,TRIM1#

main58510-2B590-04iAT171..LB..XL..EFI198806-198807

COLD SPEC & W(HEATER REAR DUCT),BLUE,TRIM8#

main58510-2B590-06iAT171..LB..XL..EFI198806-198807

COLD SPEC & W(HEATER REAR DUCT),SABLE,TRIM4#

main58510-2B590-14iAT171,CT170..RHD..SED..XL198911-199203

DARK BLUE,TRIM8#

main58510-2B600-03iAT171,CT170..LHD..SED..XL198712-199203

GRAY,TRIM1#

main58510-2B600-04iAT171,CT170..SED..XL198712-198911

BLUE,TRIM8#

main58510-2B600-06iAT171,CT170..LHD..SED..XL198712-199203

SABLE,TRIM4#

main58510-2B600-14iAT171,CT170..LHD..SED..XL198911-199203

DARK BLUE,TRIM8#

main58510-2D310-03iAT171,CT170..RHD..SED..XL198911-199203

COLD SPEC & W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-2D310-04iAT171,CT170..RHD..SED..XL198911-199203

COLD SPEC & W(HEATER REAR DUCT),DARK BLUE,TRIM8#

main58510-2D310-06iAT171,CT170..RHD..SED..XL198911-199203

COLD SPEC & W(HEATER REAR DUCT),SABLE,TRIM4#

main58510-2D320-03iAT171,CT170..RHD..LB..XL198911-199203

GRAY,TRIM1#

main58510-2D320-04iAT171,CT170..RHD..LB..XL198911-199203

DARK BLUE,TRIM8#

main58510-2D320-06iAT171,CT170..RHD..LB..XL198911-199203

SABLE,TRIM4#

main58510-2D330-03iAT171,CT170..RHD..LB..XL198911-199203

COLD SPEC & W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-2D330-04iAT171,CT170..RHD..LB..XL198911-199203

COLD SPEC & W(HEATER REAR DUCT),DARK BLUE,TRIM8#

main58510-2D330-06iAT171,CT170..RHD..LB..XL198911-199203

COLD SPEC & W(HEATER REAR DUCT),SABLE,TRIM4#

main58510-95503iAT171,CT170..RHD..WG..XL198911-199011

W(HEATER REAR DUCT)

main58510-95503-03iAT171,CT170..RHD..WG..XL199011-199211

W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-95503-04iAT171,CT170..RHD..XL198712-198911

W(HEATER REAR DUCT),BLUE,TRIM8#

main58510-95503-14iAT171,CT170..RHD..WG..XL199011-199211

W(HEATER REAR DUCT),DARK BLUE,TRIM8#

main58510-95504-03iAT171,CT170..RHD..WG..XL198712-199011

GRAY,TRIM1#

main58510-95504-04iAT171,CT170..RHD..XL198712-198911

BLUE,TRIM8#

main58510-95504-14iAT171,CT170..RHD..WG..XL199011-199211

DARK BLUE,TRIM8#

main58510-95512-03iAT171..WG..GL198808-198911

GRAY,TRIM1#

main58510-95512-04iAT171..WG..GL198808-198911

BLUE,TRIM8#

main58510-95513iAT171,CT170..LHD..WG198911-199011

W(HEATER REAR DUCT)

main58510-95513-03iAT171,CT170..LHD..WG199011-199211

W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-95513-04iAT171,CT170,ST171..LHD..WG198808-198911

W(HEATER REAR DUCT),BLUE,TRIM8#

main58510-95513-14iAT171,CT170..LHD..WG199011-199211

W(HEATER REAR DUCT),DARK BLUE,TRIM8#

main58510-95514-03iAT171,CT170,ST171..LHD..WG198808-199211

GRAY,TRIM1#

main58510-95514-04iAT171,CT170,ST171..LHD..WG198808-198911

BLUE,TRIM8#

main58510-95514-14iAT171,CT170..LHD..WG198911-199211

DARK BLUE,TRIM8#

main58510-95515-03iAT171..WG..GL198808-198911

W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-95515-04iAT171..WG..GL198808-198911

W(HEATER REAR DUCT),BLUE,TRIM8#

main58510-95516-03iAT171..WG..GL198911-199211

GRAY,TRIM1#

main58510-95516-04iAT171..WG..GL198911-199211

DARK BLUE,TRIM8#

main58510-95517-03iAT171..WG..GL198911-199211

W(HEATER REAR DUCT),GRAY,TRIM1#

main58510-95517-04iAT171..WG..GL198911-199211

W(HEATER REAR DUCT),DARK BLUE,TRIM8#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-06016-33×2iAT171..LB..XL..EFI198806-198807

COLD SPEC & W(HEATER REAR DUCT),GRAY,TRIM1#

main90467-06016-40×2iAT171..RHD..XL;CT170..SED..XL;AT171,ST171..SED;CT170..RHD..(SED,WG)198712-198911

DARK BLUE,TRIM8#

main90467-06016-48×2iAT171,CT170,ST171..SED198911-199110

BLUE,TRIM8#

main90467-06016-57×2iAT171..LB..XL..EFI198806-198807

COLD SPEC & W(HEATER REAR DUCT),SABLE,TRIM4#

main90467-06016-W3×2iAT171,CT170,ST171..SED199110-199203

DK.BLUE,TRIM8#

58543BBRACKET, FLOOR CARPET, RH

main58543-20010iAT171,CT170,ST171198712-198805

58544ABRACKET, FLOOR CARPET, LH

main58544-20010iCT170..RHD;AT171..RHD..XL;AT171,ST171..LB,SED;CT170..(LB,SED)..XL198805-198809

58570CCARPET ASSY, REAR FLOOR

main58571-20080-03iAT171,CT170..LB..XL198712-198901

GRAY,TRIM1#

main58571-20080-04iAT171,CT170..LB..XL198712-198901

BLUE,TRIM8#

main58571-20080-06iAT171,CT170..LB..XL198712-198901

SABLE,TRIM4#

main58571-20090-03iAT171,CT170,ST171..LB..GL198712-198901

GRAY,TRIM1#

main58571-20090-04iAT171,CT170,ST171..LB..GL198712-198901

BLUE,TRIM8#

main58571-20090-06iAT171,CT170,ST171..LB..GL198712-198901

SABLE,TRIM4#

main58571-20110-03iAT171,CT170..LB..XL198901-199203

GRAY,TRIM1#

main58571-20110-04iAT171,CT170..LB..XL198901-198911

BLUE,TRIM8#

main58571-20110-06iAT171,CT170..LB..XL198901-199203

SABLE,TRIM4#

main58571-20110-14iAT171,CT170..LB..XL198911-199203

DARK BLUE,TRIM8#

main58571-20120-03iAT171,CT170,ST171..LB..GL198901-198911

GRAY,TRIM1#

main58571-20120-04iAT171,CT170,ST171..LB..GL198901-198911

BLUE,TRIM8#

main58571-20120-06iAT171,CT170,ST171..LB..GL198901-198911

SABLE,TRIM4#

main58571-20121-03iAT171,CT170,ST171..LB..GL198911-199203

GRAY,TRIM1#

main58571-20121-04iAT171,CT170,ST171..LB..GL198911-199203

DARK BLUE,TRIM8#

main58571-20121-06iAT171,CT170,ST171..LB..GL198911-199203

SABLE,TRIM4#

main58571-95500-03iAT171,CT170,ST171..WG..XL198712-199211

GRAY,TRIM1#

main58571-95500-04iAT171,CT170,ST171..WG..XL198712-198911

BLUE,TRIM8#

main58571-95500-14iAT171,CT170..WG..XL198911-199211

DARK BLUE,TRIM8#

main58571-95502-03iAT171..WG..GL198712-198911

GRAY,TRIM1#

main58571-95502-04iAT171..WG..GL198712-198911

BLUE,TRIM8#

main58571-95503-03iAT171..WG..GL198911-199211

GRAY,TRIM1#

main58571-95503-04iAT171..WG..GL198911-199211

DARK BLUE,TRIM8#

58572CCLIP, REAR FLOOR MAT SET

main90467-06016-33×10iAT171,CT170,ST171..WG198712-199011

GRAY,TRIM1#

main90467-06016-40×19iAT171,CT170,ST171..LB; AT171,CT170,ST171..WG198712-198911

DARK BLUE,TRIM8#

main90467-06016-48×6iAT171,CT170,ST171..LB198911-199110

BLUE,TRIM8#

main90467-06016-57×19iAT171,CT170,ST171..LB198712-198911

SABLE,TRIM4#

main90467-06016-W3×10iAT171,CT170..RHD..WG199110-199211

DK.BLUE,TRIM8#

72681BHOOK, REAR SEATBACK LOCK, LOWER

main72681-16010-33×2iAT171,CT170,ST171..LB198712-198901

GRAY,TRIM1#

main72681-16010-34×2iAT171,CT170,ST171..LB198712-198811

DARK BLUE,TRIM8#

main72681-16010-36×2iAT171,CT170,ST171..LB198712-198811

SABLE,TRIM4#

main72681-16010-J1×2iAT171,CT170,ST171..LB198811-198901

DARK BLUE,TRIM8#

main72681-20010-03×2iAT171,CT170,ST171..LB198901-199203

GRAY,TRIM1#

main72681-20010-04×2iAT171,CT170,ST171..LB198901-198911

BLUE,TRIM8#

main72681-20010-06×2iAT171,CT170,ST171..LB198901-199203

SABLE,TRIM4#

main72681-20010-14×2iAT171,ST171..RHD..LB; AT171..LB..EFI; AT171..LHD..4FC..GL; AT171..LHD..LB..5F..CBR; CT170..LB; ST171..LB..4FC..G; ST171..LHD..LB..5F198911-199203

DARK BLUE,TRIM8#

9016750036

main90167-50036

9353024516

main93530-24516

9 parts on this diagram · 2 diagrams in section
