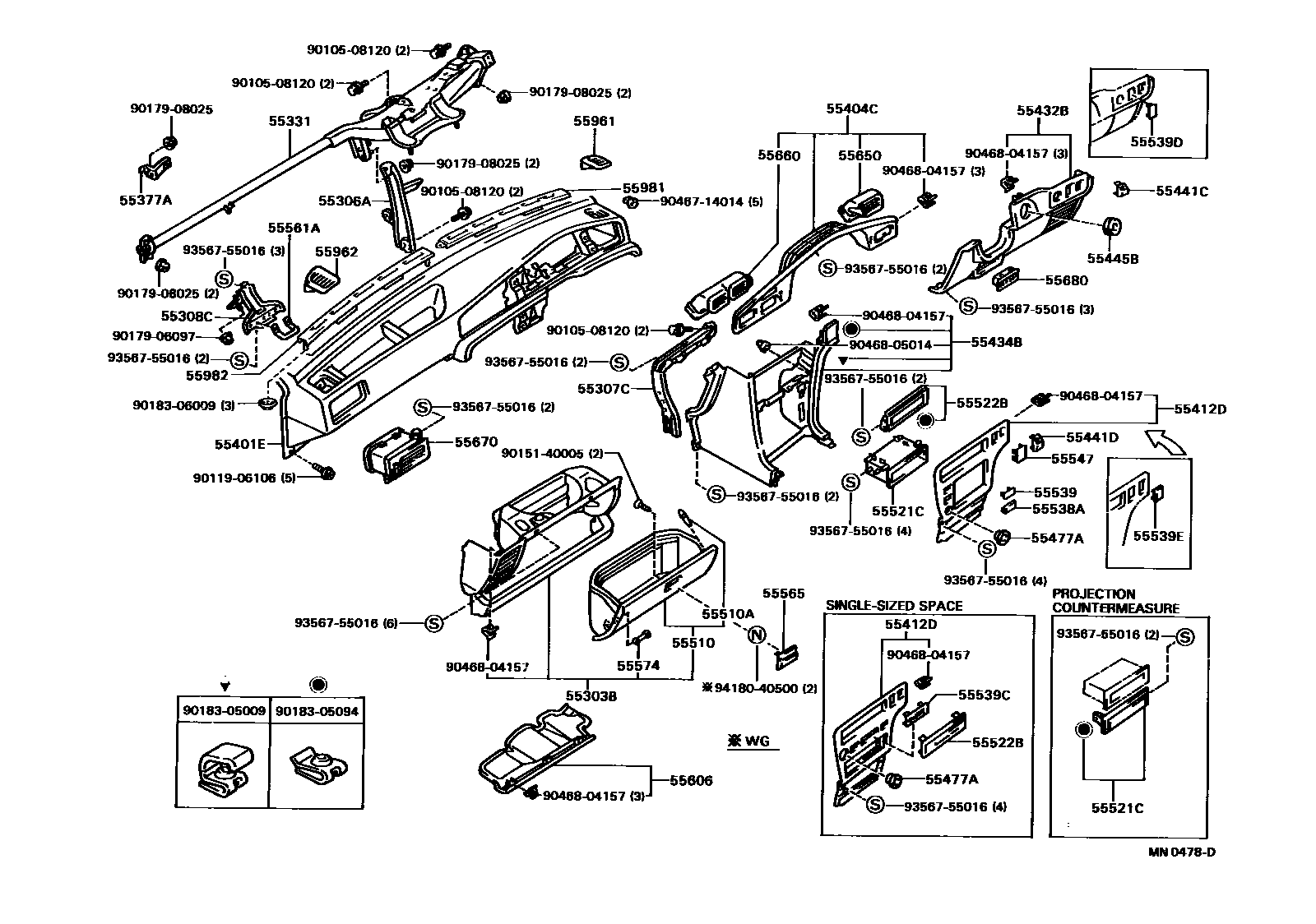

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-20070-03iAT171,CT170,ST171..RHD198712-199211

GRAY,TRIM1#

main55303-20070-04iAT171,CT170,ST171..RHD198712-198911

BLUE,TRIM8#

main55303-20070-06iAT171,CT170,ST171..RHD..(LB,SED)198712-199203

SABLE,TRIM4#

main55303-20070-14iAT171,CT170,ST171..RHD198911-199211

DARK BLUE,TRIM8#

main55303-20080-03iAT171,CT170,ST171..LHD198911-199211

GRAY,TRIM1#

main55303-20080-04iCT170..LHD;AT171,ST171..LHD..W198712-198911

W(AIR CONDITIONER),BLUE,TRIM8#

main55303-20080-06iAT171,ST171..LHD..GL199011-199203

SABLE,TRIM4#

main55303-20080-14iAT171,CT170,ST171..LHD198911-199211

DARK BLUE,TRIM8#

main55303-20110-03iAT171,CT170,ST171..LHD198712-198911

GRAY,TRIM1#

main55303-20110-04iAT171,CT170,ST171..LHD198712-198911

BLUE,TRIM8#

main55303-20110-06iAT171,CT170,ST171..LHD..(LB,SED)198712-198911

SABLE,TRIM4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-20140iAT171,CT170,ST171..RHD198712-199211

main55306-20150iAT171,CT170,ST171..LHD198712-199211

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-20120iAT171,CT170,ST171..RHD198712-198809

main55307-20121iAT171,CT170,ST171..RHD198809-199211

main55307-20130iAT171,CT170,ST171..LHD198712-199211

55308CBRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER

main55308-20130iAT171,CT170,ST171198712-199211

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-20090iAT171,CT170,ST171..RHD198712-199211

main55330-20100iAT171,CT170,ST171..LHD198712-199211

55377ABRACKET, INSTRUMENT PANEL MOUNTING, NO.2

main55377-20010iAT171,CT170,ST171..LHD198712-199211

main55377-20030iAT171,CT170,ST171..RHD198712-199211

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-20510-03iAT171,CT170,ST171..RHD198712-199211

GRAY,TRIM1#

main55401-20510-04iAT171,CT170,ST171..RHD198712-198911

BLUE,TRIM8#

main55401-20510-06iAT171..RHD..SED;AT171..RHD..LB..GL;CT170..RHD..SED..XL;CT170,ST171..RHD..GL199011-199203

SABLE,TRIM4#

main55401-20510-14iAT171,CT170,ST171..RHD198911-199211

DARK BLUE,TRIM8#

main55401-20530-03iAT171,CT170,ST171..LHD198712-198802

GRAY,TRIM1#

main55401-20530-04iAT171,CT170,ST171..LHD198712-198802

BLUE,TRIM8#

main55401-20530-06iAT171,CT170,ST171..LHD..(LB,SED)198712-198802

SABLE,TRIM4#

main55401-20531-03iAT171,CT170,ST171..LHD198802-199211

GRAY,TRIM1#

main55401-20531-04iAT171,CT170,ST171..LHD198802-198911

BLUE,TRIM8#

main55401-20531-06iAT171,CT170,ST171..LHD..(LB,SED)198802-199203

SABLE,TRIM4#

main55401-20531-14iAT171,CT170,ST171..LHD198911-199211

DARK BLUE,TRIM8#

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-20230iAT171,CT170,ST171..RHD198712-199211

main55404-20240iAT171,CT170,ST171..LHD198712-199211

55412DPANEL, INSTRUMENT CLUSTER FINISH, CENTER

main55412-20320iAT171,CT170,ST171..RHD198712-199211

main55412-20330iAT171,CT170,ST171..RHD..(LB,SED); AT171,CT170..RHD..WG198712-198911

SINGLE-SIZED SPACE

main55412-20340iAT171,CT170,ST171..LHD198712-198911

DOUBLE-SIZED SPACE

main55412-20350iAT171,CT170,ST171..LHD198712-198911

main55412-20420iAT171,CT170,ST171..LHD198911-199211

DOUBLE-SIZED SPACE

main55412-20430iAT171,CT170,ST171..LHD198911-199211

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-20180-03iAT171,CT170,ST171..RHD198712-198808

GRAY,TRIM1#

main55432-20180-04iAT171,CT170,ST171..RHD198712-198808

BLUE,TRIM8#

main55432-20180-06iAT171,CT170,ST171..RHD..(LB,SED)198712-198808

SABLE,TRIM4#

main55432-20200-03iAT171,CT170,ST171..LHD198712-198911

GRAY,TRIM1#

main55432-20200-04iAT171,CT170,ST171..LHD198712-198911

BLUE,TRIM8#

main55432-20200-06iAT171,CT170,ST171..LHD..(LB,SED)198712-198911

SABLE,TRIM4#

main55432-20240-03iAT171,CT170,ST171..RHD198808-199211

GRAY,TRIM1#

main55432-20240-04iAT171,CT170,ST171..RHD198808-198911

BLUE,TRIM8#

main55432-20240-06iAT171,CT170,ST171..RHD..(LB,SED)198808-199203

SABLE,TRIM4#

main55432-20240-14iAT171,CT170,ST171..RHD198911-199211

DARK BLUE,TRIM8#

main55432-20250-03iAT171,CT170,ST171..LHD198911-199211

GRAY,TRIM1#

main55432-20250-04iAT171,CT170,ST171..LHD198911-199211

DARK BLUE,TRIM8#

main55432-20250-06iAT171,CT170,ST171..LHD..(LB,SED)198911-199203

SABLE,TRIM4#

55434BPANEL, INSTRUMENT PANEL FINISH, LOWER CENTER

main55434-20110-03iAT171,CT170,ST171..RHD198712-198809

GRAY,TRIM1#

main55434-20110-04iAT171,CT170,ST171..RHD198712-198809

BLUE,TRIM8#

main55434-20110-06iAT171,CT170,ST171..RHD..(LB,SED)198712-198809

SABLE,TRIM4#

main55434-20111-03iAT171,CT170,ST171..RHD198809-199011

GRAY,TRIM1#

main55434-20111-04iAT171,CT170,ST171..RHD198809-198911

BLUE,TRIM8#

main55434-20111-06iAT171,CT170,ST171..RHD..(LB,SED)198809-199203

SABLE,TRIM4#

main55434-20111-14iAT171,CT170,ST171..RHD198911-199211

DARK BLUE,TRIM8#

main55434-20120-03iAT171,CT170,ST171..LHD198712-199211

GRAY,TRIM1#

main55434-20120-04iAT171,CT170,ST171..LHD198712-198911

BLUE,TRIM8#

main55434-20120-06iAT171,CT170,ST171..LHD..(LB,SED)198712-199203

SABLE,TRIM4#

main55434-20120-14iAT171,CT170,ST171..LHD198911-199211

DARK BLUE,TRIM8#

55441CBOX, INSTRUMENT PANEL COIN

main55441-20140-11iAT171,CT170,ST171..RHD198712-198911

BLACK,TRIM1#

main55441-20140-26iAT171,CT170,ST171..RHD..(LB,SED)198712-198911

SABLE,TRIM4#

main55441-20140-34iAT171,CT170,ST171..RHD198712-198911

DARK BLUE,TRIM8#

55441DBOX, INSTRUMENT PANEL COIN

main55441-20140-11iAT171,CT170..RHD..WG..XL; AT171..WG..GL199011-199211

BLACK,TRIM1#,8#; BLACK,TRIM8#

main55441-20140-26iAT171,CT170,ST171..RHD..(LB,SED)198712-198911

SABLE,TRIM4#

main55441-20140-34iAT171,CT170,ST171..RHD198712-198911

DARK BLUE,TRIM8#

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-20150iAT171,CT170,ST171198712-199211

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-20070iAT171,CT170,ST171198712-199211

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-20120-03iAT171,CT170,ST171..RHD..GL199011-199211

GRAY,TRIM1#

main55550-20120-04iAT171,CT170,ST171..RHD198712-198911

BLUE,TRIM8#

main55550-20120-06iAT171,CT170,ST171..RHD..(LB,SED)198712-199203

SABLE,TRIM4#

main55550-20120-14iAT171,CT170,ST171..RHD198911-199211

DARK BLUE,TRIM8#

main55550-20130-03iAT171,CT170,ST171..LHD198712-199211

GRAY,TRIM1#

main55550-20130-04iAT171,CT170,ST171..LHD198712-198911

BLUE,TRIM8#

main55550-20130-06iAT171,CT170,ST171..LHD..(LB,SED)198712-199203

SABLE,TRIM4#

main55550-20130-14iAT171,CT170,ST171..LHD198911-199211

DARK BLUE,TRIM8#

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-03015×3iAT171,CT170,ST171198712-199211

55521CCOVER, STEREO OPENING

main55521-16030iAT171,CT170,ST171..LHD; AT171,CT170,ST171..RHD198712-198911

TYPE A

main55521-20120iAT171,CT170,ST171..LHD198712-199011

TYPE B

55522BCOVER, RADIO TUNER OPENING

main55522-20060iAT171,CT170,ST171..LHD; CT170..GL;AT171..RHD;CT170..RHD..WG;ST171..RHD..LB198712-199211

1DIN

main55522-32010iAT171,CT170,ST171..RHD198712-199211

2DIN

55538ACOVER, COOLER SWITCH HOLE

main55538-16020iAT171,CT170,ST171198712-199211

55539COVER, SPARE SWITCH HOLE

main55539-24010-01iAT171,ST171..(LB,SED)..G; AT171..WG..EFI198911-199211

BLACK,TRIM1#,4#,8#; BLACK,TRIM1#,8#

main55539-24010-13iAT171,CT170,ST171..LHD; AT171,CT170..RHD..WG; AT171..RHD..LB;CT170,ST171..RHD..GL; AT171..RHD..SED198712-198911

GRAY,TRIM1#

main55539-24010-44iAT171,CT170,ST171..LHD; AT171,CT170..RHD..WG; AT171..RHD..LB;CT170,ST171..RHD..GL; AT171..RHD..SED198712-198911

DARK BLUE,TRIM8#

main55539-24010-46iAT171,CT170,ST171..LHD..(LB,SED); AT171..RHD..LB;CT170,ST171..RHD..GL; AT171..RHD..SED198712-198911

SABLE,TRIM4#

55539CCOVER, SPARE SWITCH HOLE

main55539-20060iAT171,ST171..LHD198712-198911

main55539-20070iCT170..LHD198712-198911

55539DCOVER, SPARE SWITCH HOLE

main55539-24010-01iAT171,CT170,ST171..LHD..(LB,SED); AT171,CT170,ST171..RHD..(LB,SED); AT171,CT170..LHD..WG; AT171,CT170..RHD..WG..XL198911-199211

BLACK,TRIM1#,4#,8#; BLACK,TRIM1#,8#

55539ECOVER, SPARE SWITCH HOLE

main55539-24010-01iAT171,CT170,ST171..LB,SED; AT171,CT170..WG198911-199211

BLACK,TRIM1#,4#,8#; BLACK,TRIM1#,8#

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-20030-01iAT171,CT170,ST171..LB,SED; AT171,CT170,ST171..WG198712-199211

BLACK,TRIM1#,4#,8#; BLACK,TRIM1#,8#

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-12040iAT171,CT170,ST171198712-199211

55565HANDLE, GLOVE COMPARTMENT DOOR LOCK

main55565-20060-03iAT171,CT170,ST171198712-199211

SHADOW GRAY,TRIM1#

main55565-20060-04iAT171,CT170,ST171198712-198911

DARK BLUE,TRIM8#

main55565-20060-06iAT171,CT170,ST171..LB,SED198712-199203

SABLE,TRIM4#

main55565-20060-14iAT171,CT170,ST171198911-199211

DARK BLUE,TRIM8#

55574SHAFT, GLOVE COMPARTMENT DOOR HINGE

main55574-10010×2iAT171,CT170,ST171198712-199211

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-20040iCT170,ST171..RHD198712-199211

main55606-20050iCT170..LHD198911-199211

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-20170iAT171,CT170,ST171..RHD198712-199211

main55650-20180iAT171,CT170,ST171..LHD198712-199211

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-20110iAT171,CT170,ST171..RHD198712-199211

main55660-20120iAT171,CT170,ST171..LHD198712-199211

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-20100-03iAT171,CT170,ST171..RHD198712-199211

GRAY,TRIM1#

main55670-20100-04iAT171,CT170,ST171..RHD198712-198911

BLUE,TRIM8#

main55670-20100-06iAT171,CT170,ST171..RHD..(LB,SED)198712-199203

SABLE,TRIM4#

main55670-20100-14iAT171,CT170,ST171..RHD198911-199211

DARK BLUE,TRIM8#

main55670-20110-03iAT171,CT170,ST171..LHD198712-199211

GRAY,TRIM1#

main55670-20110-04iAT171,CT170,ST171..LHD198712-198911

BLUE,TRIM8#

main55670-20110-06iAT171,CT170,ST171..LHD..(LB,SED)198712-199203

SABLE,TRIM4#

main55670-20110-14iAT171,CT170,ST171..LHD198911-199211

DARK BLUE,TRIM8#

55680REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1

main55680-14030-13iCT170..LHD;AT171,ST171..LHD..W198712-198807

SHADOW GRAY,TRIM1#

main55680-14030-14iCT170..LHD;AT171,ST171..LHD..W198712-198807

DARK BLUE,TRIM8#

main55680-14030-16iCT170,ST171..LB,SED;AT171..(LB,SED)..GL;AT171..LHD..(LB,SED)..XL198911-199203

SABLE,TRIM4#

main55680-14030-24iAT171..LHD;CT170,ST171;AT171..RHD..GL;AT171..RHD..WG..XL198911-199211

DARK BLUE,TRIM8#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-20110-03iAT171,CT170,ST171..RHD198712-199211

GRAY,TRIM1#

main55961-20110-04iAT171,CT170,ST171..RHD198712-198911

BLUE,TRIM8#

main55961-20110-06iAT171,CT170,ST171..RHD..(LB,SED)198712-199203

SABLE,TRIM4#

main55961-20110-14iAT171,CT170,ST171..RHD198911-199211

DARK BLUE,TRIM8#

main55961-20140-03iAT171,CT170,ST171..LHD198712-199011

GRAY,TRIM1#

main55961-20140-04iAT171,CT170,ST171..LHD198712-198911

BLUE,TRIM8#

main55961-20140-06iAT171,CT170,ST171..LHD..(LB,SED)198712-199203

SABLE,TRIM4#

main55961-20140-14iAT171,CT170,ST171..LHD198911-199211

DARK BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-20130-03iAT171,CT170,ST171..RHD198712-199211

GRAY,TRIM1#

main55962-20130-04iAT171,CT170,ST171..RHD198712-198911

BLUE,TRIM8#

main55962-20130-06iAT171,CT170,ST171..RHD..(LB,SED)198712-199203

SABLE,TRIM4#

main55962-20130-14iAT171,CT170,ST171..RHD198911-199211

DARK BLUE,TRIM8#

main55962-20140-03iAT171,CT170,ST171..LHD198712-199211

GRAY,TRIM1#

main55962-20140-04iAT171,CT170,ST171..LHD198712-198911

BLUE,TRIM8#

main55962-20140-06iAT171,CT170,ST171..LHD..(LB,SED)198712-199203

SABLE,TRIM4#

main55962-20140-14iAT171,CT170,ST171..LHD198911-199211

DARK BLUE,TRIM8#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-20060-E0iAT171..RHD..SED;AT171..RHD..LB..GL;CT170..RHD..SED..XL;CT170,ST171..RHD..GL199011-199203

SABLE,TRIM4#

main55981-20060-P0iAT171,CT170,ST171..RHD198712-199211

GRAY,TRIM1#

main55981-20060-R8iAT171,CT170,ST171..RHD198712-198911

BLUE,TRIM8#

main55981-20060-W3iAT171,CT170,ST171..RHD198911-199211

DARK BLUE,TRIM8#

main55981-20070-E0iAT171,CT170,ST171..LHD..(LB,SED)198712-198802

SABLE,TRIM4#

main55981-20070-P0iAT171,CT170,ST171..LHD198712-198802

GRAY,TRIM1#

main55981-20070-R8iAT171,CT170,ST171..LHD198712-198802

BLUE,TRIM8#

main55981-20071-E0iAT171,CT170,ST171..LHD..(LB,SED)198802-199203

SABLE,TRIM4#

main55981-20071-P0iAT171,CT170,ST171..LHD198802-199211

GRAY,TRIM1#

main55981-20071-R8iAT171,CT170,ST171..LHD198802-198911

BLUE,TRIM8#

main55981-20071-W3iAT171,CT170,ST171..LHD198911-199211

DARK BLUE,TRIM8#

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-20060-E0iAT171,CT170,ST171..RHD..(LB,SED)198712-199011

SABLE,TRIM4#

main55982-20060-P0iAT171,CT170,ST171..RHD198712-199211

GRAY,TRIM1#

main55982-20060-R8iAT171,CT170,ST171..RHD198712-198911

BLUE,TRIM8#

main55982-20060-W3iAT171,CT170,ST171..RHD198911-199211

DARK BLUE,TRIM8#

main55982-20070-E0iAT171,CT170,ST171..LHD..(LB,SED)198712-198802

SABLE,TRIM4#

main55982-20070-P0iAT171,CT170,ST171..LHD198712-198802

GRAY,TRIM1#

main55982-20070-R8iAT171,CT170,ST171..LHD198712-198802

BLUE,TRIM8#

main55982-20071-E0iAT171,CT170,ST171..LHD..(LB,SED)198802-199203

SABLE,TRIM4#

main55982-20071-P0iAT171,CT170,ST171..LHD198802-199211

GRAY,TRIM1#

main55982-20071-R8iAT171,CT170,ST171..LHD198802-198911

BLUE,TRIM8#

main55982-20071-W3iAT171,CT170,ST171..LHD198911-199211

DARK BLUE,TRIM8#

9010508120

main90105-08120

9011906106

main90119-06106

9015140005

main90151-40005

9017906097

main90179-06097

9017908025

main90179-08025

9018305009

main90183-05009

9018305094

main90183-05094

9018306009

main90183-06009

9046714014

main90467-14014

9046804157

main90468-04157

9046805014

main90468-05014

9356755016

main93567-55016

9418040500

main94180-40500

50 parts on this diagram · 2 diagrams in section
