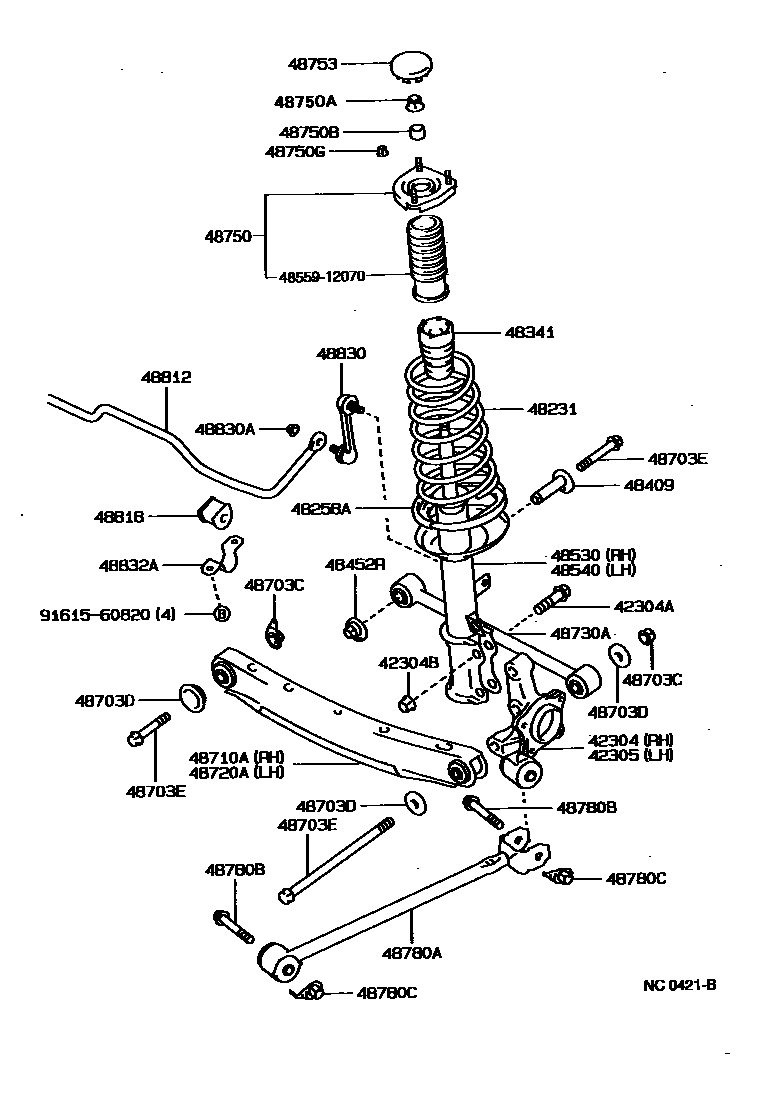

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-20050iAT171,ST171..(LB,SED)..GL198808-199203

W(*66 & 13INCHES DISC WHEEL)

main42304-32020iAT171,CT170,ST171198712-199211

main42304-32030iST171..GL198712-199203

W(*66 & 14INCHES DISC WHEEL)

42304ABOLT (FOR REAR AXLE CARRIER)

main90105-15001×8iAT171..RHD..SED199010-199011

42304BNUT (FOR REAR AXLE CARRIER)

main90179-15001×4iAT171..RHD..SED; CT170..RHD..(LB,SED)199010-199011

SEVERE USAGE PACKAGE

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-20050iAT171,ST171..(LB,SED)..GL198808-199203

W(*66 & 13INCHES DISC WHEEL)

main42305-32020iAT171,CT170,ST171198712-199211

main42305-32030iST171..GL198712-199203

W(*66 & 14INCHES DISC WHEEL)

48231SPRING, COIL, REAR

main48231-20210iST171..SED198808-198911

W(*66)

main48231-20440×2iST171..SED198712-198804

main48231-20890×2iAT171,CT170..SED198712-198804

main48231-2B070×2iAT171,CT170,ST171..WG198712-198911

main48231-2B090iCT170..SED198911-199203

main48231-2B140iCT170,ST171..LB198911-199203

main48231-2B230×2iST171..SED198804-198911

main48231-2B260iCT170..RHD..LB199010-199203

SEVERE USAGE PACKAGE

main48231-2B610iAT171,CT170..WG198911-199211

main48231-2B830iAT171..SED198911-199203

main48231-2B850iST171..SED198911-199203

main48231-2B880×2iAT171..RHD..SED199010-199011

SEVERE USAGE PACKAGE

main48231-2B890iAT171..RHD..LB199010-199203

SEVERE USAGE PACKAGE

48258AINSULATOR, REAR COIL SPRING, LOWER

main48258-32010×2iAT171..RHD..SED199010-199011

SEVERE USAGE PACKAGE

48341BUMPER, REAR SPRING

main48341-20090×2iST171198712-199203

main48341-20120×2iAT171..RHD..SED199010-199011

SEVERE USAGE PACKAGE

48409CAM SUB-ASSY, REAR SUSPENSION TOE ADJUST

main48409-32020×2iAT171,CT170,ST171198712-199211

48452RPLATE, REAR SUSPENSION TOE ADJUST, NO.2

main48452-32020×2iAT171,CT170,ST171198712-199211

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-20240iAT171,CT170..LB,SED198712-199203

MARK 48540-20240

main48530-20260iAT171,CT170..RHD..(LB,SED)199010-199011

MARK 48530-20260,SEVERE USAGE PACKAGE

main48530-20320iST171..GL198712-199203

MARK 48530-20320

main48530-20360iAT171,CT170..WG198712-199211

main48530-20370iST171..XL198712-198911

MARK 48530-20370

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-20240iAT171,CT170..LB,SED198712-199203

MARK 48540-20240

main48540-20260iAT171,CT170..RHD..(LB,SED);AT171,CT170..LHD..SED..5F..XL..(CBR,DSL)199011-199203

MARK 48540-20260,SEVERE USAGE PACKAGE

main48540-20320iST171..GL198712-199203

MARK 48540-20320

main48540-20360iAT171,CT170..WG198712-199211

main48540-20370iST171..XL198712-198911

MARK 48540-20260

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-12063×2iAT171,CT170,ST171198712-198911

BODY SIDE

main90179-14019×2iAT171,CT170,ST171198712-199211

CARRIER SIDE

48703DWASHER(FOR REAR SUSPENSION ARM)

main90109-12034×2iAT171;CT170..GL;CT170..WG;ST171..LB;ST171..LHD..SED;CT170..LHD..(LB,SED)198911-199211

BODY SIDE

main90201-14017×4iAT171,CT170,ST171198906-199211

main90209-13008×2iAT171,CT170,ST171198712-198906

BODY SIDE

48703EBOLT(FOR REAR SUSPENSION ARM)

main90105-12132×2iAT171,CT170,ST171198712-199211

*12-1.25PX80-20

main90105-12159×2iAT171,CT170,ST171198712-198906

*12-1.25PX81.5-24

main90105-14036×2iAT171,CT170,ST171198712-199211

*14-1.5PX248-30

main90109-12034×2iAT171,CT170,ST171198906-199211

*12-1.25PX81.5-24

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-20060iAT171,CT170,ST171198712-199106

main48710-20220iAT171,CT170,ST171199106-199211

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48720-20050iAT171,CT170,ST171198712-199106

main48720-20090iAT171,CT170,ST171199106-199211

48730AARM ASSY, REAR SUSPENSION, NO.2

main48730-20040iAT171,CT170,ST171..WG198712-198911

LH

main48730-20060×2iAT171,CT170,ST171..LB,SED198712-199203

48750SUPPORT ASSY, REAR SUSPENSION

main48750-20050×2iAT171,CT170,ST171198712-198911

48750ANUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90179-14015×2iAT171,CT170,ST171198712-198911

48750BCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER)

main90387-15012×2iAT171,CT170,ST171198712-199211

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08122×6iAT171,CT170,ST171198712-199211

48753COVER, REAR SUSPENSION SUPPORT

main48753-12010×2iAT171,CT170,ST171198712-199211

48780AROD ASSY, STRUT, REAR

main48780-20040×2iAT171,CT170,ST171198712-199211

48780BBOLT(FOR STRUT ROD)

main90119-12131×4iAT171,CT170,ST171198712-199211

48780CNUT(FOR STRUT ROD)

main90179-12062×2iAT171,CT170,ST171198712-199211

CARRIER SIDE

main90179-12065×2iAT171,CT170,ST171198712-199211

BODY SIDE

48812BAR, STABILIZER, REAR

main48812-20250iAT171,CT170198712-199211

main48812-20270iST171198911-199203

main48812-20300iST171198712-198911

48818BUSH, STABILIZER, REAR

main48818-12160×2iST171198712-198911

main48818-20070×2iST171198911-199203

main48818-20080×2iAT171,CT170198712-199211

48830LINK ASSY, REAR STABILIZER

main48830-32010×2iAT171,CT170,ST171198712-199211

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054×4iAT171,CT170,ST171198712-199211

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-20020×2iAT171,CT170,ST171198712-199211

main48832-32020×2iST171..GL198712-199203

W(*66)

4855912070COVER, SHOCK ABSORBER, DUST

main48559-12070

9161560820

main91615-60820

32 parts on this diagram · 1 diagram in section
