22202DASH POT SUB-ASSY

main22202-15010i198911-199211

ANNEX 23

main22202-15020i198911-199211

22210BODY ASSY, THROTTLE

main22210-16320i198712-198911

main22210-16520i198911-199211

main22210-16530i198911-199203

main22210-16550i198911-199211

ANNEX 23

main22210-74220i198712-199004

main22210-74230i198712-199203

main22210-74240i198712-199203

main22210-74250i198712-199004

main22210-74251i199004-199203

main22210-74520i199004-199203

22215GASKET, THROTTLE BODY COVER

main22215-15010i198712-199004

main22215-15011i199004-199211

main22215-74190i198712-199203

main22215-74210i198712-199004

22216SCREW, DASH POT ADJUSTING

main22216-74010i198712-198911

22230VALVE ASSY, AUXILIARY AIR

main22230-16140i198911-199211

ANNEX 23

main22230-16180i198712-198911

main22230-16200i198911-199211

main22230-16210i198911-199203

main22230-74051i198712-199203

22230VRING, O(FOR AUXILIARY AIR VALVE)

main96711-19009i198712-199211

22271GASKET, THROTTLE BODY

main22271-15010i198712-198911

main22271-15011i198912-199211

main22271-74020i198712-198907

main22271-74021i198907-199004

23250INJECTOR ASSY, FUEL

main23209-16030×4i198712-198911

main23209-16120×4i198911-199211

main23209-74060×4i198712-199203

23250BRING, O(FOR FUEL INJECTOR)

main90301-07001×4i198712-199211

23250CGROMMET(FOR FUEL INJECTOR)

main90480-13005×4i198712-199211

23260INJECTOR ASSY, COLD START FUEL

main23260-19025i198712-198911

main23260-19105i198911-198912

main23260-19106i198912-199211

main23260-19125i198911-198912

ANNEX 23

main23260-19126i198912-199211

ANNEX 23

main23260-79105i198712-199203

23280REGULATOR ASSY, FUEL PRESSURE

main23280-16120i198911-199211

main23280-16130i198712-198911

main23280-74031i198712-199101

main23280-74100i199101-199203

23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)

main90401-08003i198712-199211

23280ERING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07001i198712-199211

23280FGASKET(FOR FUEL PRESSURE REGULATOR)

main90430-08005×2i198712-199211

23291INSULATOR, INJECTOR VIBRATION

main23291-41010×4i198712-199211

23293GASKET, COLD START INJECTOR

main23293-62020i198907-198912

main23293-74010i198712-198907

23300PFILTER, FUEL(FOR EFI)

main23300-19205i198911-199211

main23300-79175i198712-198911

main23300-79185i198712-199203

23300TGASKET(FOR FUEL FILTER)

main90430-12005×2i198712-199108

main90430-12026×2i199108-199211

23300UBOLT, UNION(FOR FUEL FILTER)

main90401-12097i198712-199211

23801GBOLT, UNION(FOR FUEL PIPE)

main90401-08003×2i198909-199211

main90401-08004×2i198909-199203

23801HGASKET(FOR FUEL PIPE)

main90430-08005×4i198712-199211

main90430-08009×4i198712-199010

main90430-08014×4i199010-199203

23807PIPE SUB-ASSY, FUEL DELIVERY

main23807-16080i198712-198911

main23807-74030i198712-199203

main23814-16110i198911-199211

23807BHOSE, FUEL DELIVERY PIPE

main23271-15250i198911-199211

main23271-16070i198712-198805

main23271-16100i198805-198908

main23271-16150i198908-198911

main23271-74110i198712-198903

main23271-74111i198903-199203

23807JGASKET, PIPE FUEL DELIVARY INLET

main90201-12109×2i198803-199109

main90430-12005×2i198712-198803

main90430-12026×2i199109-199211

23807VSPACER, NO.1(FOR DELIVERY PIPE)

main90560-11020×2i198712-199203

main90561-08021×2i198712-199211

23902TUBE SUB-ASSY, FUEL

main23902-16140i198712-199211

23910ATUBE SUB-ASSY, FUEL

main23901-16110i198712-199211

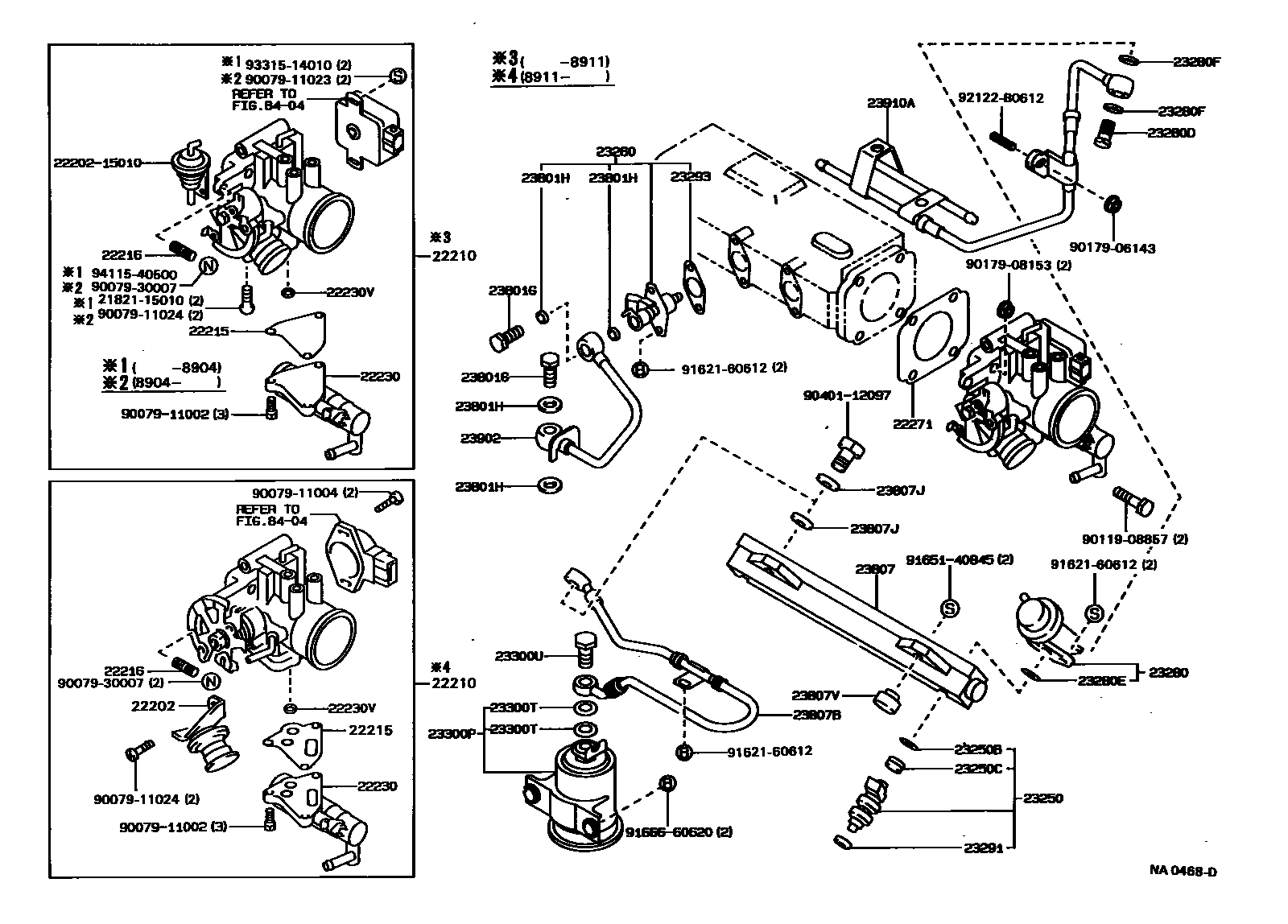

8404ELECTRONIC FUEL INJECTION SYSTEM

→ Go to FIG 84-04

2182115010SCREW, 2ND THROTTLE VALVE SET

main21821-15010

2220215010DASH POT SUB-ASSY

main22202-15010

9007911002

main90079-11002

9007911004

main90079-11004

9007911023

main90079-11023

9007911024

main90079-11024

9007930007

main90079-30007

9011908857

main90119-08857

9017906143

main90179-06143

9017908153

main90179-08153

9040112097

main90401-12097

9162160612

main91621-60612

9165140845

main91651-40845

9166660620

main91666-60620

92122B0612

main92122-B0612

9331514010

main93315-14010

9411540500

main94115-40500
