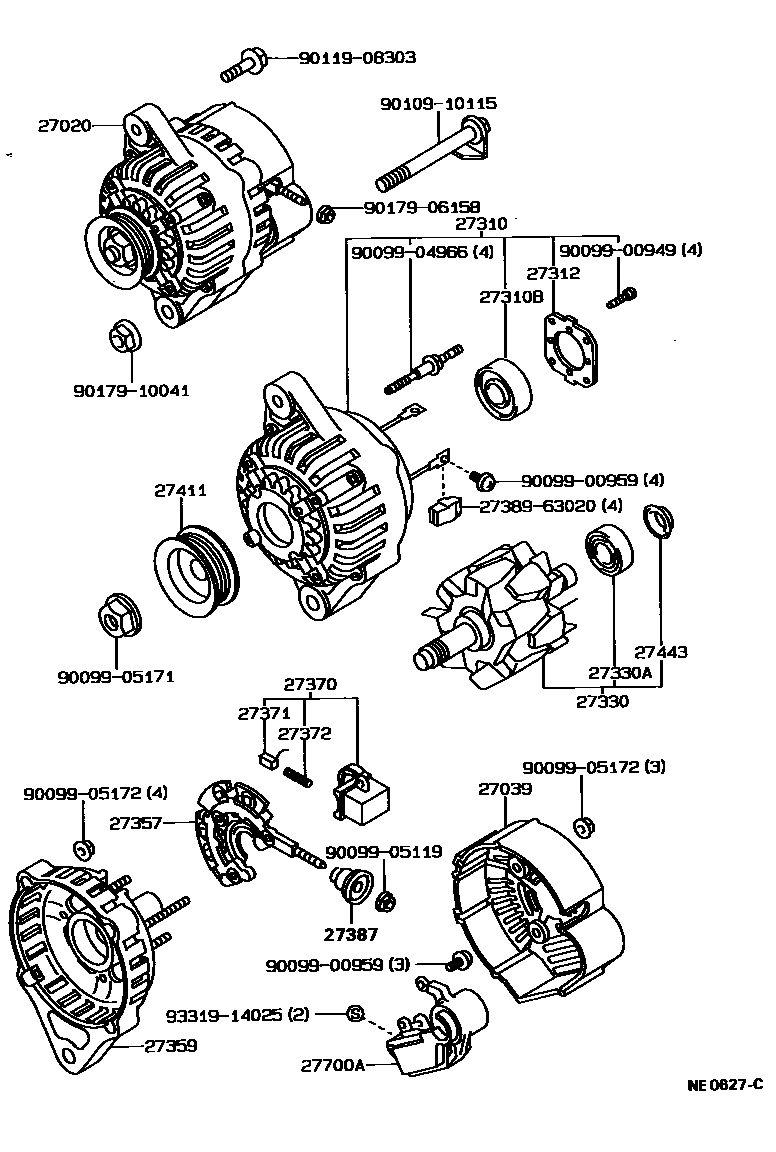

ALTERNATOR

0001 112V 60A,70A 0002 112V 60A 0003 112V 70A

27020ALTERNATOR ASSY

main27020-64180i2C..CT170198712-198911

12V 60A

main27020-64220i2C..CT170198911-199101

12V 60A

main27020-64221i2C..CT170199101-199106

12V 60A

main27020-64310i2C..CT170199106-199211

12V 60A

main27060-16160i4AF..AT171198712-198908

12V 60A

main27060-16170i4AF..AT171..LHD..W; 4AFE..AT171198712-198908

12V 70A; 12V 70A,W(WINDOW DEFOGGER)

main27060-74020i3SFE..ST171198712-198911

12V 70A

main27060-74190i3SFE..ST171198911-199203

12V 70A

27039COVER, ALTERNATOR REAR END

main27039-15170i4AF#..AT171199109-199211

main27039-70081i3SFE..ST171198911-199109

main27039-72010i4AF#..AT171198911-199109

main27039-74200i3SFE..ST171199109-199203

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-16190i4AF#..AT171198712-199211

main27310-64060i2C..CT170198712-199211

main27310-70100i3SFE..ST171198712-199203

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10137i2C..CT170198712-199211

main90099-10178i4AF#,3SFE..AT171,ST171198712-199211

27312PLATE, RETAINER

main27312-57060i2C..CT170198712-199211

main27312-70200i4AF#,3SFE..AT171,ST171198712-199211

27330ROTOR ASSY, ALTERNATOR

main27330-64170i2C..CT170198712-199101

main27330-64171i2C..CT170199101-199211

main27330-72101×2i3SFE..ST171; 4AF#..AT171198712-198911

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10140i4AF#,3SFE..AT171,ST171198712-199211

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-63020i4AF#,3SFE..AT171,ST171198908-198911

main27357-63060i4AF..AT171198712-198908

main27357-70081i3SFE..ST171198911-199203

27359FRAME, ALTERNATOR RECTIFIER END

main27359-16151i4AF#..AT171198712-199211

main27359-43160i3SFE..ST171198712-198911

main27359-74130i3SFE..ST171198911-199203

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-63021i4AF#,3SFE..AT171,ST171198712-199105

main27370-70300i4AF#..AT171199105-199211

27371BRUSH, ALTERNATOR

main27371-54412×2i2C..CT170199106-199211

main27371-56070×2i2C..CT170198712-199106

main27371-63020×2i3SFE..ST171199105-199203

main27371-70300×2i4AF#..AT171199105-199211

27372SPRING, ALTERNATOR BRUSH

main27372-56070×2i2C..CT170198712-199211

main27372-72100×2i4AF#,3SFE..AT171,ST171198712-199008

27387INSULATOR, TERMINAL

main27387-54310i2C..CT170199106-199211

main27387-56070i2C..CT170198712-198903

main27387-64170i2C..CT170198903-199106

main27387-70110i3SFE..ST171198911-199203

main27387-70170i4AF#..AT171198911-199211

27411PULLEY, ALTERNATOR

main27411-16180i4AF..AT171..LHD..W; 4AFE,3SFE..AT171,ST171198712-198908

W(WINDOW DEFOGGER)

main27411-16190i4AF..AT171198712-198808

main27411-16191i4AF..AT171198808-198908

main27411-64060i2C..CT170198712-198911

main27411-64220i2C..CT170198911-199211

27443COVER, ALTERNATOR BEARING

main27443-63020i3SFE..ST171; 4AF#..AT171198712-198911

27700AREGULATOR ASSY, GENERATOR

main27700-16010i3SFE..ST171198712-199009

main27700-63021i4AF..AT171198712-198804

main27700-64040i2C..CT170198712-199106

main27700-64110i2C..CT170199106-199211

main27700-70030i4AF..AT171..LHD..W; 4AFE..AT171198712-198804

W(WINDOW DEFOGGER)

main27700-74010i3SFE..ST171199009-199203

2738963020INSULATOR, TERMINAL

main27389-63020

9009900949

main90099-00949

9009900959

main90099-00959

9009904966

main90099-04966

9009905119

main90099-05119

9009905171

main90099-05171

9009905172

main90099-05172

9010910115

main90109-10115

9011908303

main90119-08303

9017906158

main90179-06158

9017910041

main90179-10041

9331914025

main93319-14025

28 parts on this diagram · 3 diagrams in section
