WATER PUMP

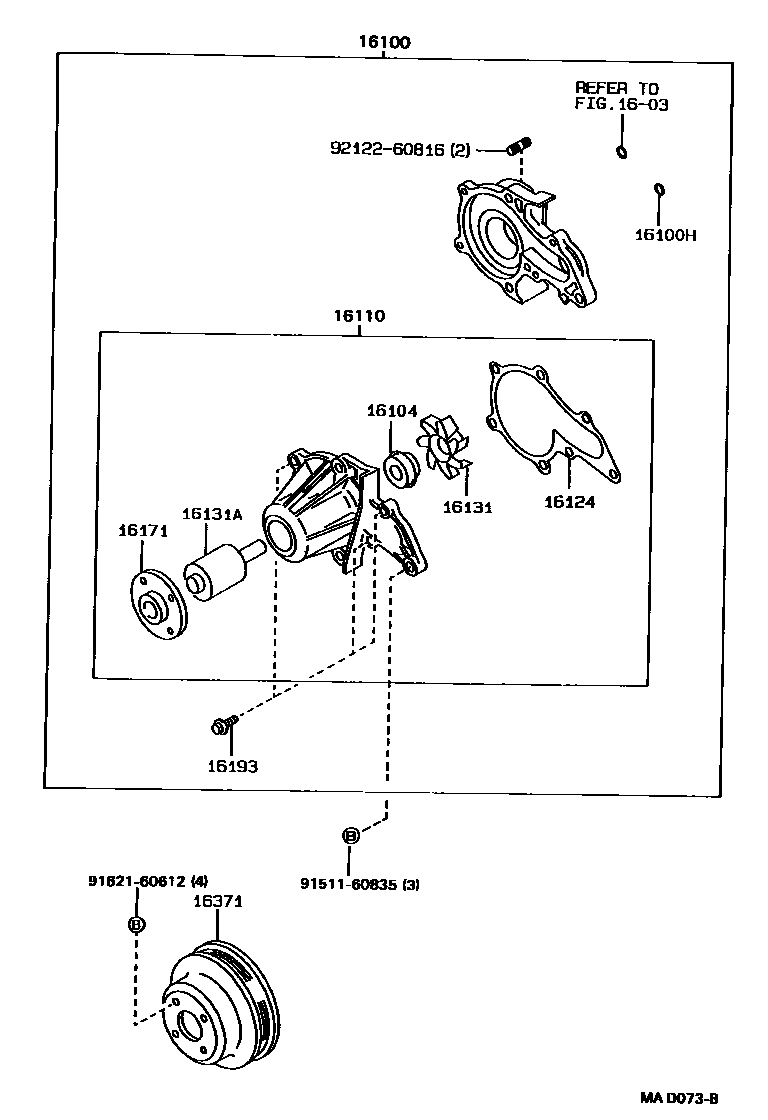

Parts diagram

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-19205i198712-199211

main16100-69085i198712-198912

main16100-69275i198912-199005

main16100-69295i199005-199211

main16100-79075i198712-198911

main16100-79185i198911-199203

16100HRING, O(FOR WATER PUMP)

main90301-37005i198808-199203

main96711-24035i198712-199211

main96711-24037i198712-198808

16104SEAL SET, WATER PUMP

main16104-15020i198712-198810

AISIN

main16104-15060i198911-199203

AISAN

main16104-16040i199203-199211

AISIN

main16104-70010i198911-199203

AISIN

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19075i198911-199002

AISIN

main16110-19076i199002-199211

AISIN

main16110-19085i198911-199002

AISAN

main16110-19086i199002-199211

AISAN

16124GASKET, WATER PUMP COVER

main16124-15010i198712-199002

AISIN

main16124-15060i198712-199002

AISAN

main16124-15061i199002-199211

AISAN

main16124-16020i199002-199211

AISIN

main16124-74010i198712-198809

main16124-74020i198809-198911

main16142-74020i198911-199203

16131ROTOR, WATER PUMP

main16131-15070i198712-199211

AISAN

main16131-15080i198712-199211

AISIN

16131ABEARING, WATER PUMP

main90369-35043i198911-199203

main90369-35071i199203-199211

16171SEAT, WATER PUMP PULLEY

main16171-10012i199007-199211

AISIN

main16171-15050i198712-199007

AISIN

main16171-15070i198712-199211

AISAN

16193BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011×3i198712-199211

AISIN

main16193-15060×3i198712-199106

AISAN

main16193-15100×3i199106-199211

AISAN

main90029-01500×2i198712-199203

16371PULLEY, FAN

main16371-15050i198712-199211

W(POWER STEERING)

main16371-15060i198712-199211

9151160835

main91511-60835

9162160612

main91621-60612

9212260816

main92122-60816

14 parts on this diagram · 3 diagrams in section
