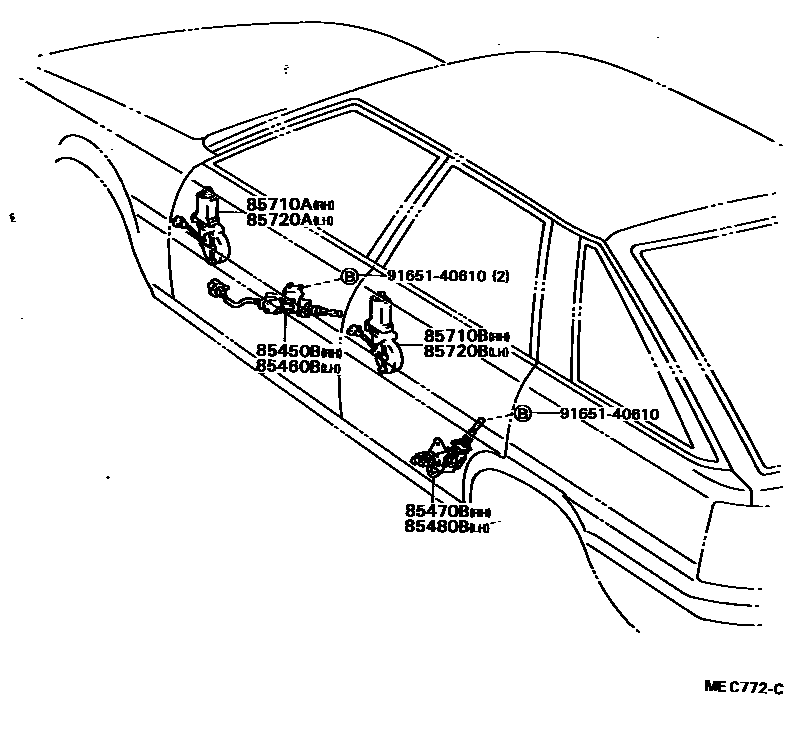

DOOR MOTOR & DOOR SOLENOID

85450BMOTOR ASSY, DOOR CONTROL, FRONT RH

main85450-20050iAT151,ST150..GL..(GEN,SAA)198310-198508

main85450-20200iAT151,ST15#..GL..(GEN,SAA); ST151198508-198711

85460BMOTOR ASSY, DOOR CONTROL, FRONT LH

main85460-20040iAT151,ST150..GL..(GEN,SAA)198310-198508

main85460-20050iAT151,ST15#..GL..(GEN,SAA); ST151198508-198711

85470BMOTOR ASSY, DOOR CONTROL, REAR RH

main85470-20030iAT151,ST15#..GL..(GEN,SAA)198310-198711

85480BMOTOR ASSY, DOOR CONTROL, REAR LH

main85480-20010iAT151,ST15#..GL..(GEN,SAA)198310-198711

85710AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH

main85710-20040iAT151,ST15#..GL..(GEN,SAA)198310-198711

FR

85710BMOTOR ASSY, POWER WINDOW REGULATOR, REAR RH

main85720-14160iAT151,ST15#..GL..(GEN,SAA)198310-198711

RR

85720AMOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH

main85720-20040iAT151,ST15#..GL..(GEN,SAA)198310-198711

FR

85720BMOTOR ASSY, POWER WINDOW REGULATOR, REAR LH

main85710-14130iAT151,ST15#..GL..(GEN,SAA)198310-198711

RR

9165140610

main91651-40610

9 parts on this diagram · 1 diagram in section
