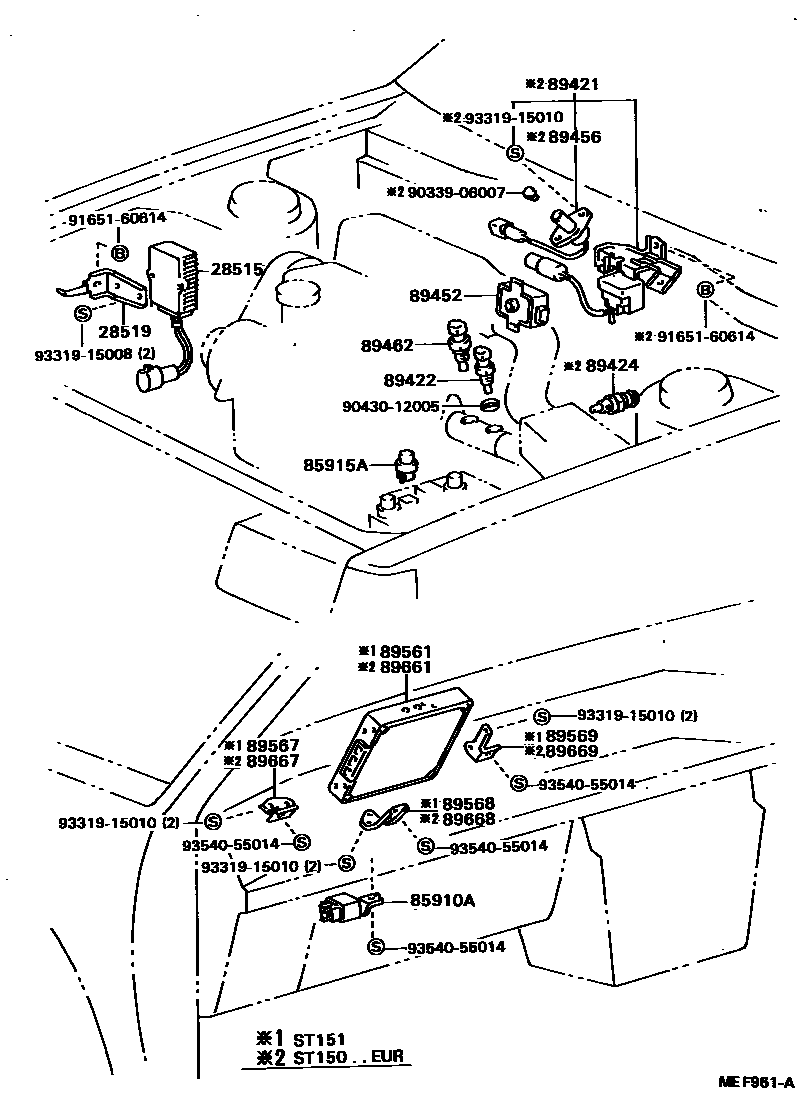

ELECTRONIC FUEL INJECTION SYSTEM
28515RESISTOR, SOLENOID
28519BRACKET, SOLENOID RESISTOR
85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)
85915ARELAY, MAIN
89421SENSOR ASSY, VACUUM (FOR E.F.I.)
89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89452SENSOR, THROTTLE POSITION (FOR E.F.I.)
89456RESISTOR, VARIABLE
89462SWITCH, START INJECTOR TIME
89561COMPUTER, FUEL INJECTION
89567BRACKET, FUEL INJECTION COMPUTER
89568BRACKET, FUEL INJECTION COMPUTER
89569BRACKET, FUEL INJECTION COMPUTER
89661COMPUTER, ENGINE CONTROL
89667BRACKET, ENGINE CONTROL COMPUTER
89668BRACKET, ENGINE CONTROL COMPUTER, NO.2
89669BRACKET, ENGINE CONTROL COMPUTER, NO.3
9033906007
main90339-06007
9043012005
main90430-12005
9165160614
main91651-60614
9331915008
main93319-15008
9331915010
main93319-15010
9354055014
main93540-55014
24 parts on this diagram · 1 diagram in section
