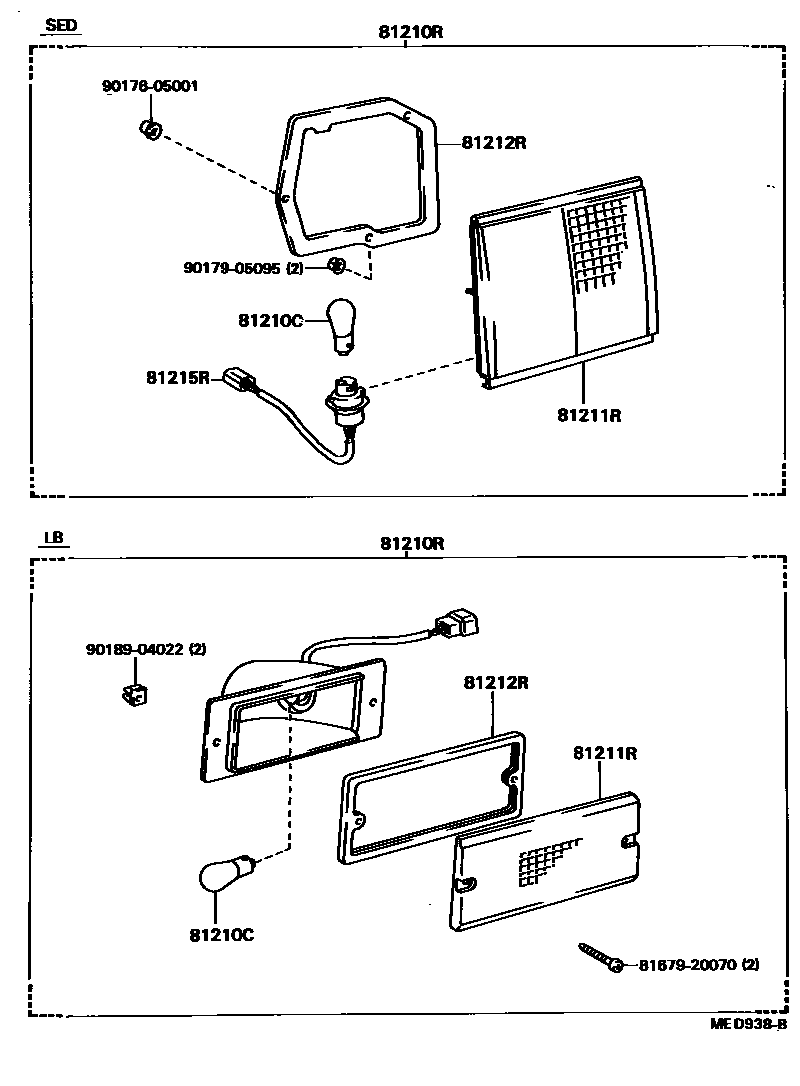

REAR FOG LAMP

81210CBULB, REAR FOG LAMP

main99132-11210×2iAT151,CT150,ST150..EUR198310-198711

12V 21W,12V 21W

81210RLAMP ASSY, REAR FOG

main81210-20021iAT151,CT150,ST150..SED..EUR198508-198711

RH

main81210-29045iAT151,CT150..LB..RHD..EUG198310-198711

main81210-29055iAT151,CT150..SED..EUR198310-198508

RH

main81220-20011iAT151,CT150,ST150..SED..EUR198508-198711

LH

main81220-29015iAT151,CT150,ST150..LB..LHD..EUR198310-198711

main81220-29025iAT151,CT150..SED..EUR198310-198508

LH

81211RLENS, REAR FOG LAMP

main81211-20020iAT151,CT150..SED..EUR198310-198508

RH

main81211-20021iAT151,CT150,ST150..SED..EUR198508-198711

RH

main81211-20030iAT151,CT150,ST150..LB..EUR198310-198711

main81221-20010iAT151,CT150..SED..EUR198310-198508

LH

main81221-20011iAT151,CT150,ST150..SED..EUR198508-198711

LH

81212RGASKET, REAR FOG LAMP, NO.1

main81214-20020×2iAT151,CT150..SED..EUR198310-198508

main81214-20021×2iAT151,CT150,ST150..SED..EUR198508-198711

main81672-20070iAT151,CT150,ST150..LB..EUR198310-198711

81215RSOCKET & WIRE, REAR FOG LAMP

main81215-20020×2iAT151,CT150..SED..EUR198310-198508

main81215-20021×2iAT151,CT150,ST150..SED..EUR198508-198711

8167920070BRACKET, BACK UP LAMP BODY

main81679-20070

9017605001

main90176-05001

9017905095

main90179-05095

9018904022

main90189-04022

9 parts on this diagram · 1 diagram in section
