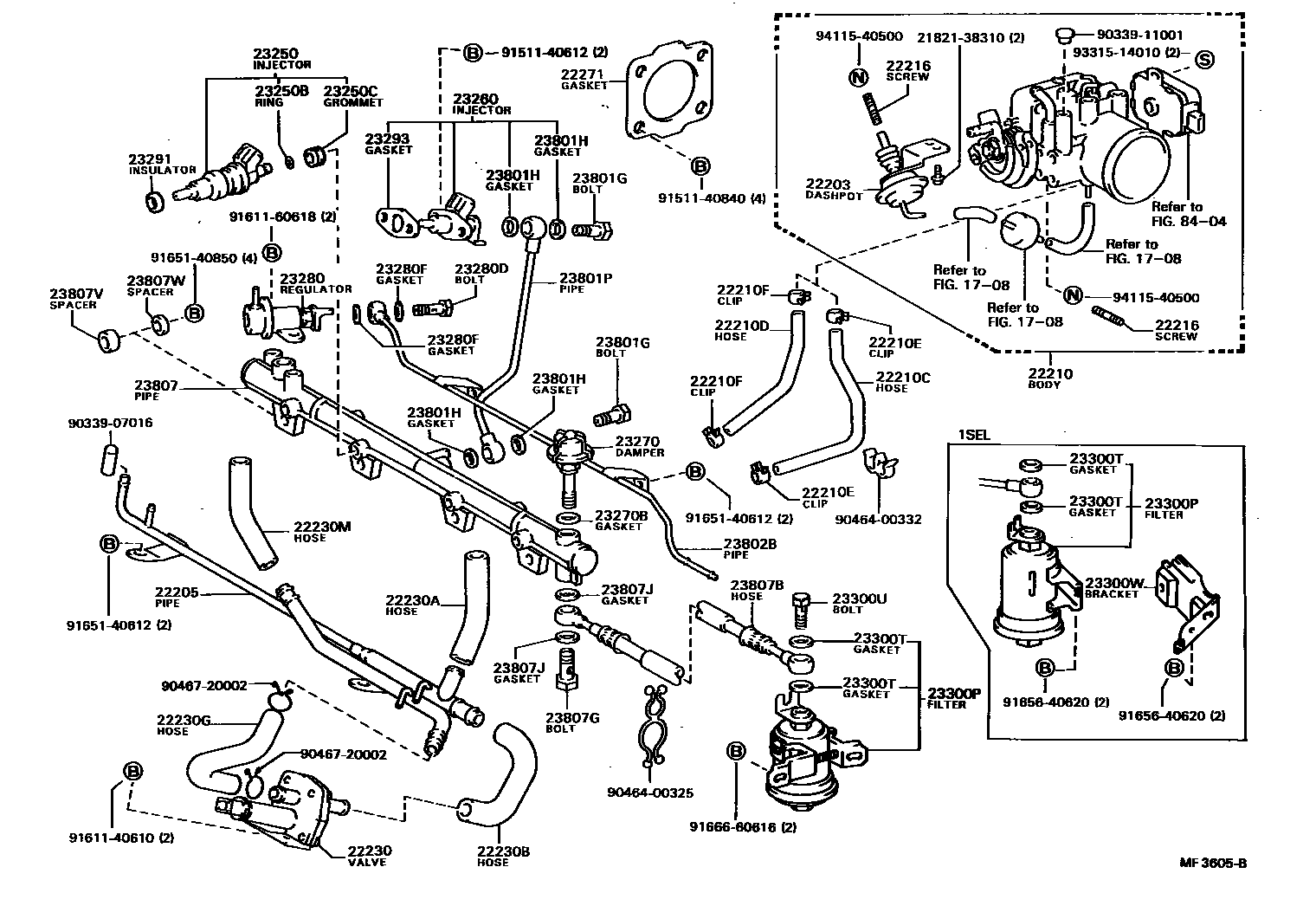

FUEL INJECTION SYSTEM
1708VACUUM PIPING
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22205PIPE SUB-ASSY, AUXILIARY AIR
22210BODY ASSY, THROTTLE
22210CHOSE, WATER BY-PASS, NO.1
22210DHOSE, WATER BY-PASS, NO.2
22210ECLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1)
22210FCLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2)
22216SCREW, DASH POT ADJUSTING
22230VALVE ASSY, AUXILIARY AIR
22230AHOSE, AUXILIARY AIR VALVE, NO.1
22230BHOSE, AUXILIARY AIR VALVE, NO.2
22230GHOSE, AUXILIARY AIR VALVE, NO.3
22230MHOSE, AUXILIARY AIR VALVE, NO.4
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
23280REGULATOR ASSY, FUEL PRESSURE
23280DBOLT, UNION(FOR FUEL PIPE OR HOSE SET)
23280FGASKET(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
23300WBRACKET, FUEL FILTER
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23802BPIPE SUB-ASSY, FUEL, NO.2
23807PIPE SUB-ASSY, FUEL DELIVERY
23807BHOSE, FUEL DELIVERY PIPE
23807GBOLT, UNION PIPE FUEL DELIVARY INLET
23807JGASKET, PIPE FUEL DELIVARY INLET
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23807WSPACER, NO.2(FOR DELIVERY PIPE)
8404ELECTRONIC FUEL INJECTION SYSTEM
2182138310SCREW, 2ND THROTTLE VALVE SET
main21821-38310
9033907016
main90339-07016
9033911001
main90339-11001
9046400325
main90464-00325
9046400332
main90464-00332
9046720002
main90467-20002
9151140612
main91511-40612
9151140840
main91511-40840
9161140610
main91611-40610
9161160618
main91611-60618
9165140612
main91651-40612
9165140850
main91651-40850
9165640620
main91656-40620
9166660616
main91666-60616
9331514010
main93315-14010
9411540500
main94115-40500
57 parts on this diagram · 2 diagrams in section
