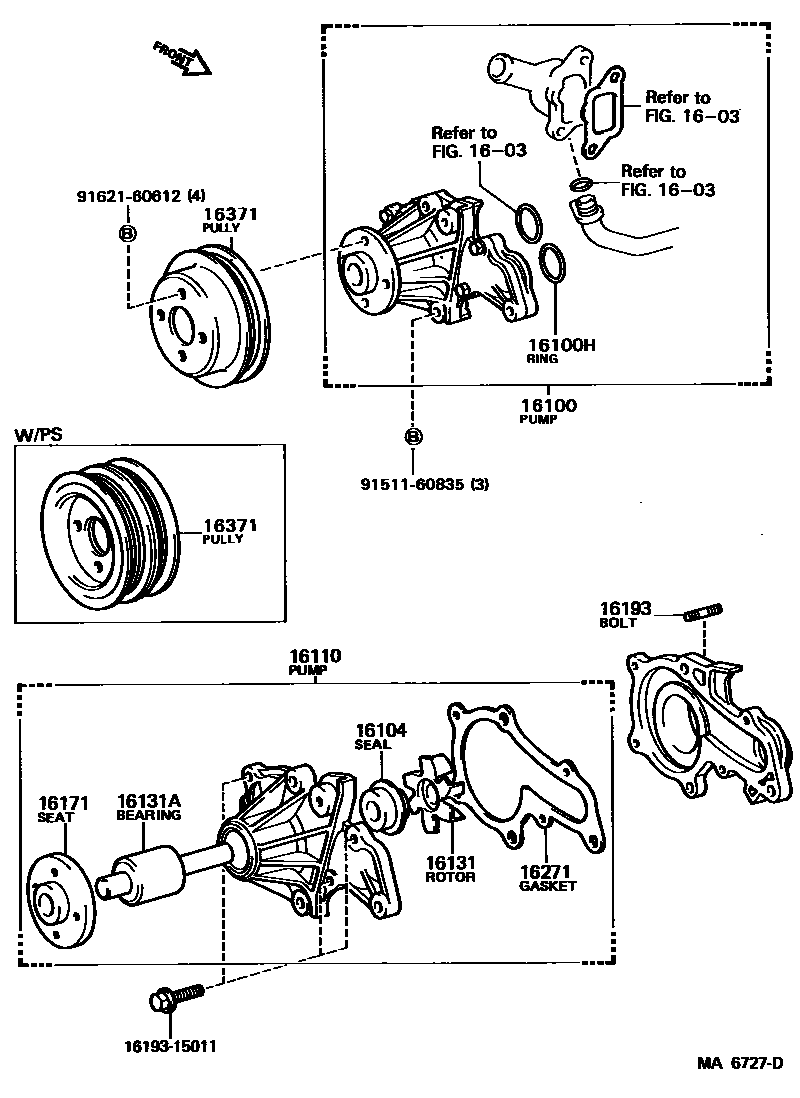

WATER PUMP

0001 1 0002 1 0003 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-19105i4AL#..AT151198310-198711

main16100-69075i1S#,2SEL..ST15#198310-198711

main16100-69085i2CL..CT150198310-198711

16100HRING, O(FOR WATER PUMP)

main96711-24035i4AL#..AT151198310-198711

main96711-24037i1S#,2SEL..ST15#198310-198711

16104SEAL SET, WATER PUMP

main16104-15020i4AL#..AT151198405-198711

main16104-41112i4AL..AT151..LB..4FC;4AL#..AT151..3FC,4F,5F;4AL..AT151..SED..LHD..4FC198310-198405

16110PUMP ASSY, WATER, W/O COUPLING

main16110-19045i4AL#..AT151198310-198607

main16110-19046i4AL#..AT151198607-198711

16131ROTOR, WATER PUMP

main16131-15050i4AL#..AT151198310-198607

main16131-15051i4AL#..AT151198607-198711

16131ABEARING, WATER PUMP

main90369-35021i4AL#..AT151198310-198705

main90369-35043i4AL#..AT151198705-198711

16171SEAT, WATER PUMP PULLEY

main16171-15050i4AL#..AT151198310-198711

16193BOLT, STUD(FOR WATER PUMP COVER)

main90029-01500×2i1S#,2SEL..ST15#198408-198711

main92122-60816×2i4AL#..AT151198310-198711

16271GASKET, WATER PUMP

main16124-15010i4AL#..AT151198310-198711

main16271-64010i2CL..CT150198310-198711

16371PULLEY, FAN

main16371-15050i4AL#..AT151..DX,GL198310-198711

W/PS

main16371-15060i4AL#..AT151198310-198711

1619315011BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011

9151160835

main91511-60835

9162160612

main91621-60612

14 parts on this diagram · 3 diagrams in section
