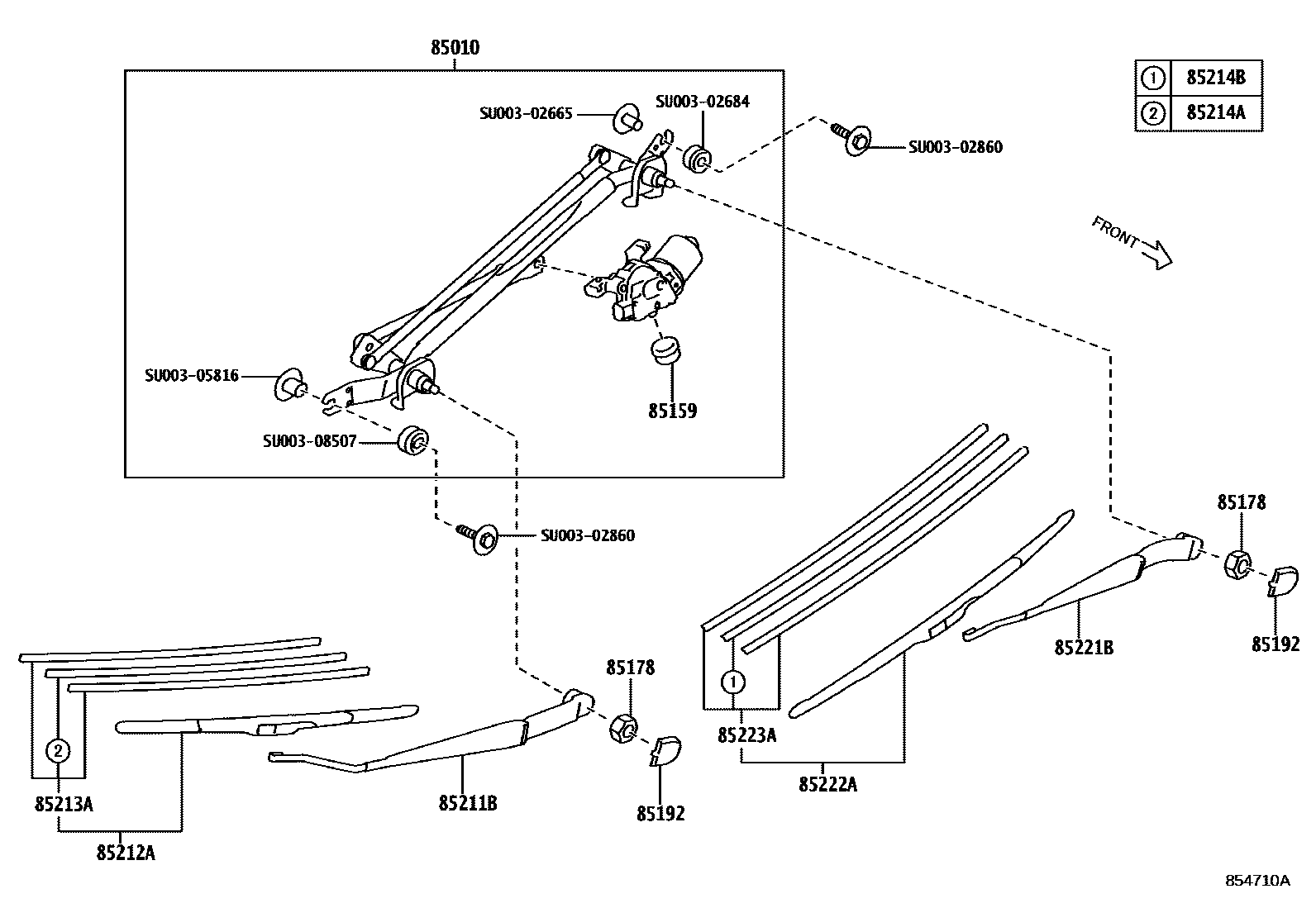

WINDSHIELD WIPER

0001 1 0002 1

85010MOTOR & LINK ASSY, FR WIPER

mainSU00309353iZN8..RHD202203-202206

mainSU00310020iZN8..LHD..C202311

85159CUSHION, WINDSHIELD WIPER MOTOR

mainSU00302686iZN8202203-202206

85178NUT (FOR FRONT WIPER ARM SETTING)

mainSU00304731×2iZN8..C202311

85192COVER, WINDSHIELD WIPER ARM

mainSU00302675×2iZN8..B202206-202310

85211BARM, FRONT WIPER, RH

mainSU00302667iZN8..RHD..B202206-202310

mainSU00302668iZN8..LHD..D202408

85212ABLADE, FR WIPER, RH

mainSU00309356iZN8..RHD..D202408

mainSU00310023iZN8..LHD..C202311

85213ARUBBER, WIPER BLADE, RH

mainSU00309466iZN8202203-202206

85214ARUBBER, WIPER, RH

mainSU00309467iZN8202203-202206

85214BRUBBER, WIPER, LH

mainSU00304215iZN8202203-202206

85221BARM, FRONT WIPER, LH

mainSU00309354iZN8..RHD..B202206-202310

mainSU00310148iZN8..LHD..C202311

85222ABLADE, FR WIPER, LH

mainSU00309355iZN8..RHD..C202311

mainSU00310022iZN8..LHD..C202311

85223ARUBBER, FRONT WIPER BLADE, LH

mainSU00309465iZN8202203-202206

SU00302665

mainSU003-02665

SU00302684

mainSU003-02684

SU00302860

mainSU003-02860

SU00305816

mainSU003-05816

SU00308507

mainSU003-08507

17 parts on this diagram · 2 diagrams in section
