METER

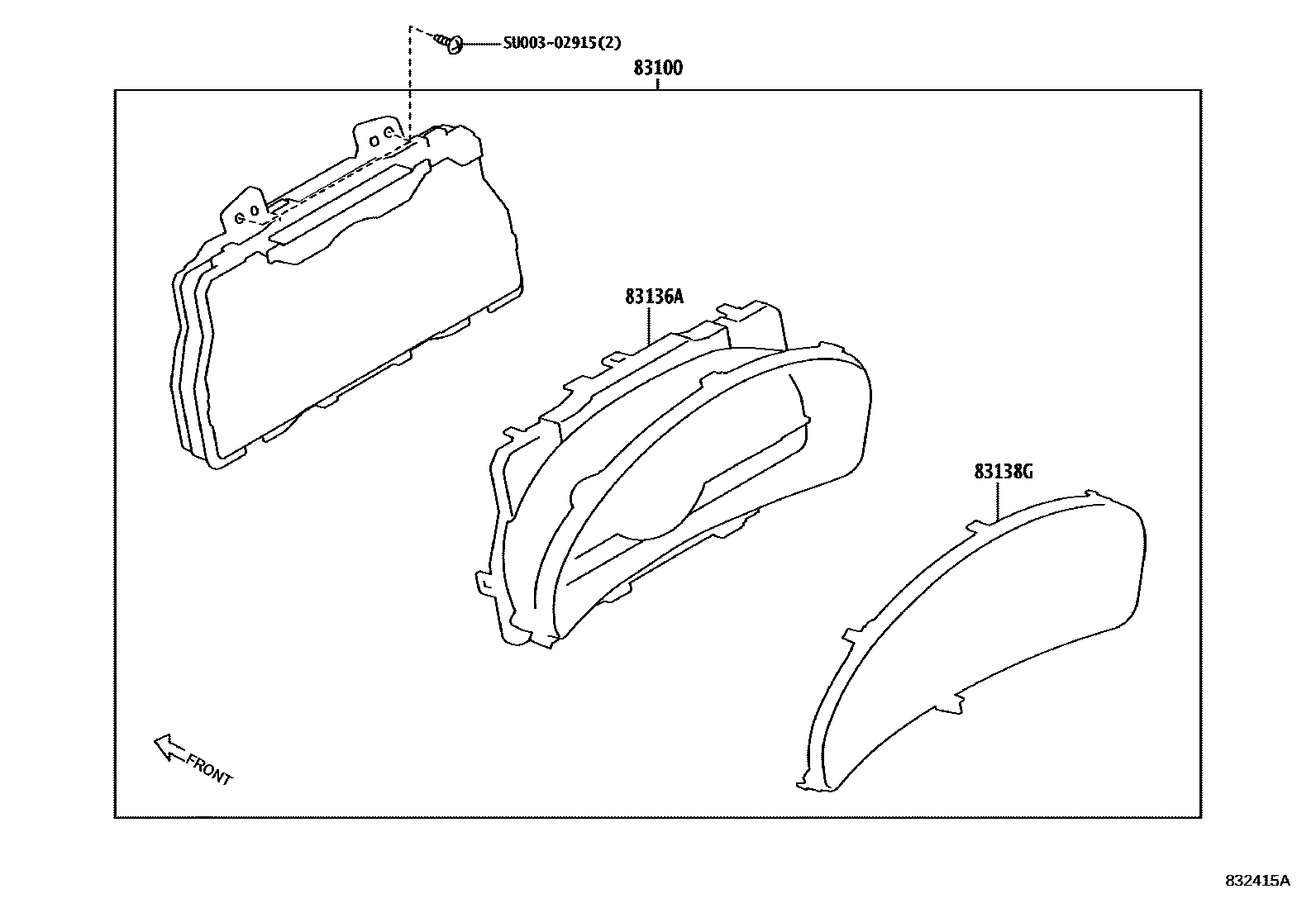

Parts diagram

83100METER ASSY, COMBINATION

mainSU00309637i202203-202206

DENSO

mainSU00309637i202203-202206

DENSO,DESTINATION CODE=ER

mainSU00309637i202203-202206

DENSO,DESTINATION CODE=KA

mainSU00309637i202203-202206

DENSO,DESTINATION CODE=KC

mainSU00309637i202203-202206

DENSO,DESTINATION CODE=KV

mainSU00309637i202203-202206

DENSO,DESTINATION CODE=KY

mainSU00309637i202203-202206

DENSO,DESTINATION CODE=K2

mainSU00310962i202206-202310

DESTINATION CODE=ER

mainSU00310962i202206-202310

DESTINATION CODE=KA

mainSU00310962i202206-202310

DESTINATION CODE=KC

mainSU00310962i202206-202310

DESTINATION CODE=KV

mainSU00310962i202206-202310

DESTINATION CODE=KY

mainSU00310962i202206-202310

DESTINATION CODE=K2

mainSU00311428i202311-202402

mainSU00312046i202403

83136ACOVER, COMBINATION METER

mainSU00308919i202203-202310

83138GGLASS, COMBINATION METER

mainSU00308920i202203-202310

SU00302915

mainSU003-02915

4 parts on this diagram · 1 diagram in section
