STANDARD TOOL

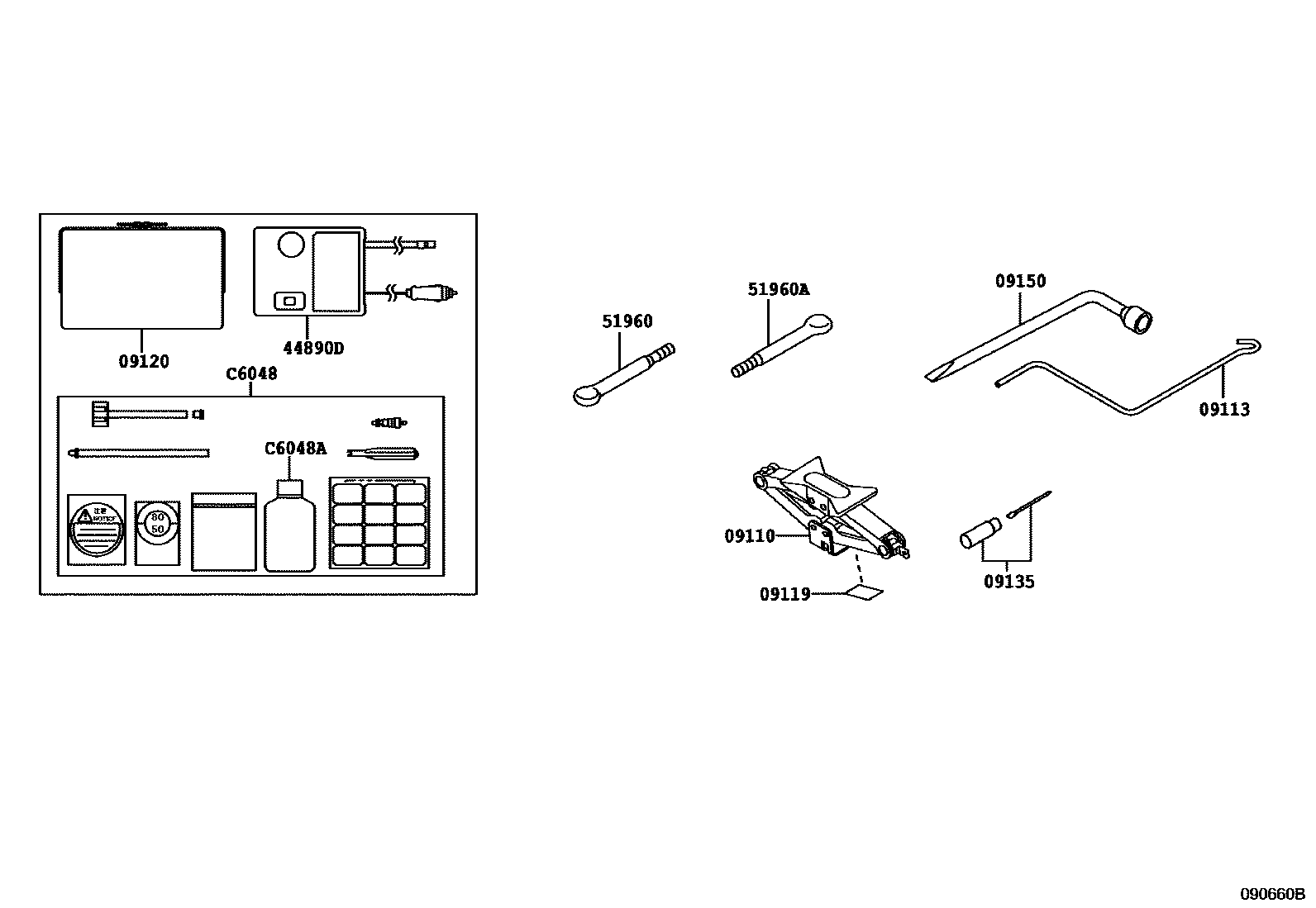

Parts diagram

09110JACK ASSY

mainSU00303401i201204-201308

mainSU00305745i201405-201503

09113HANDLE, JACK

mainSU00303402i201204-201308

09119LABEL, JACK CAUTION

mainSU00303403i201204-201308

mainSU00307167i201603-201606

mainSU00307261i201606-201607

09120BAG, TOOL

mainSU00304285i201204-201308

09135DRIVER, SCREW

mainSU00301988i201204-201308

09150WRENCH, HUB NUT BOX

mainSU00303400i201204-201308

44890DCOMPRESSOR ASSY, AIR

mainSU00304282i201204-201308

51960HOOK ASSY, FRONT

mainSU00301544i201204-201308

51960AHOOK ASSY, REAR

mainSU00301545×2i201204-201307

mainSU00304614×2i201308-201404

C6048REPAIR SET, TIRE

mainSU00304283i201204-201208

mainSU00304552i201208-201308

mainSU00305880i201409-201503

C6048ASEALANT, REPAIR TIRE

mainSU00304284i201204-201208

mainSU00304553i201208-201308

mainSU00305881i201409-201503

11 parts on this diagram · 1 diagram in section
