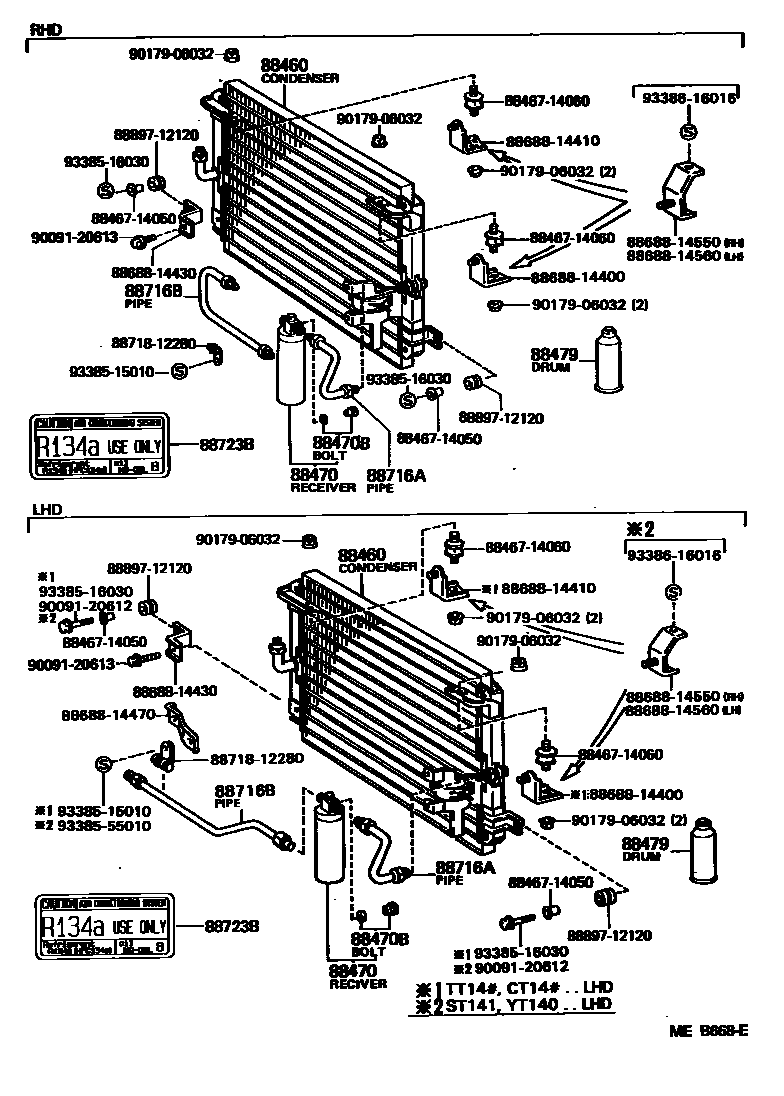

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1

88460CONDENSER ASSY, COOLER

main88460-14210iCT141198601-199401

main88460-14211iCT141,YT140199401-199907

main88460-20190iYT140..RHD198801-199401

88470RECEIVER & DRYER ASSY, COOLER

main88470-12050iCT141198601-199401

main88470-14010iST141..GEN198508-199907

main88470-20080iYT140..RHD198801-199401

main88471-22040iCT141,YT140199401-199907

88470BBOLT, FUSE

main88475-12020iCT141198601-199401

main88475-20040iYT140..RHD198801-199401

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001×2iCT140,TT14#198201-198508

400G

main90986-02007×3iCT141,YT140199401-199907

250G

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-14730iCT140,TT14#198201-198508

main88716-14731iCT141,YT140199401-199907

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-14740iYT140..RHD198801-199401

main88716-14750iTT14#..LHD198201-198508

main88716-14850iCT140..LHD198201-198312

main88716-14851iCT141,YT140..LHD199401-199907

main88716-14860iCT140..RHD198201-198312

main88716-14861iCT141,YT140..RHD199401-199907

88723BLABEL, COOLER SERVICE CAUTION

main88723-20040iCT141,YT140199401-199907

8846714050CUSHION, COOLER CONDENSER, NO.1

main88467-14050

8846714060CUSHION, COOLER CONDENSER, NO.1

main88467-14060

8868814400BRACKET, COOLER DIAPHRAGM

main88688-14400

8868814410BRACKET, COOLER DIAPHRAGM

main88688-14410

8868814430BRACKET, COOLER DIAPHRAGM

main88688-14430

8868814470BRACKET, COOLER DIAPHRAGM

main88688-14470

8868814550BRACKET, COOLER DIAPHRAGM

main88688-14550

8868814560BRACKET, COOLER DIAPHRAGM

main88688-14560

8871812280PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-12280

8889712120VALVE, COOLER MAGNET

main88897-12120

9009120612

main90091-20612

9009120613

main90091-20613

9017906032

main90179-06032

9338515010

main93385-15010

9338516030

main93385-16030

9338555010

main93385-55010

9338616016

main93386-16016

9838516030

main98385-16030

25 parts on this diagram · 7 diagrams in section
