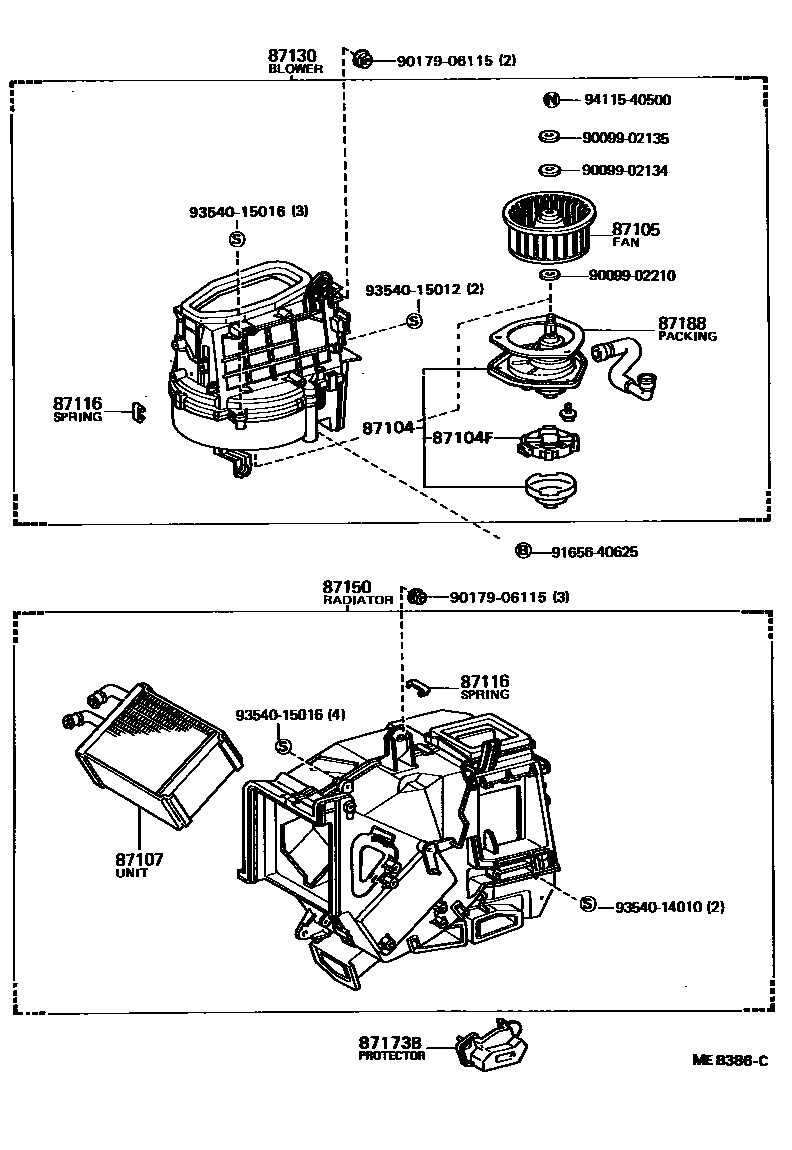

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1

87104MOTOR SUB-ASSY, HEATER BLOWER

main87104-14100iCT14#,RT140,ST141,TT14#,YT140..LHD198201-198811

main87104-20210iCT141,YT140..RHD198811-199907

main87104-20250iCT141,YT140..LHD198811-199907

main87104-24010iCT14#,RT142,ST141,TT14#..RHD198201-198712

main87104-32020iCT141,YT140..RHD198712-198811

87104FBRUSH, HEATER BLOWER MOTOR

main87185-20020iCT141,YT140198811-199907

87105FAN SUB-ASSY, HEATER BLOWER

main87105-14020iCT14#,RT140,ST141,TT14#,YT140..LHD198201-199907

main87105-14030iCT14#,RT142,ST141,TT14#,YT140..RHD198201-199907

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-14110iRT142,ST141,TT14#..RHD198310-199907

main87107-14120iCT140,TT14#..LHD198201-198508

main87107-14140iCT141,YT140..LHD198712-199907

main87107-20270iCT141198601-198612

main87107-20280iCT140..RHD198310-198312

main87107-20360iCT141,YT140..RHD198612-199907

87116SPRING, HEATER CASE FASTENING

main87116-14010×10iCT14#,RT142,ST141,TT14#,YT140198201-199907

87130BLOWER ASSY, HEATER, FRONT

main87130-14070iCT140,TT14#..RHD198201-198202

main87130-14071iCT14#,RT142,ST141,TT14#,YT140..RHD198202-198811

main87130-14080iCT140,TT14#..LHD198201-198202

main87130-14081iCT14#,RT140,ST141,TT14#,YT140..LHD198202-198811

main87130-20260iCT141,YT140..RHD198811-199907

main87130-20440iCT141,YT140..LHD198811-199907

87150RADIATOR ASSY, HEATER

main87150-14160iRT142,ST141,TT14#..RHD198310-199907

main87150-14210iCT141,ST141,YT140..LHD198512-199907

main87150-20260iCT141198601-198612

main87150-20270iCT140..RHD198310-198312

main87150-20480iCT141,YT140..RHD198612-199907

87173BPROTECTOR, HEATER

main87173-20200iCT14#,RT142,ST141,TT14#,YT140..RHD198201-199907

main87173-20210iCT141,ST141,YT140..LHD198512-199907

87188PACKING, HEATER BLOWER MOTOR

main87127-14010iCT14#,RT142,ST141,TT14#,YT140198201-199907

9009902134

main90099-02134

9009902135

main90099-02135

9009902210

main90099-02210

9017906115

main90179-06115

9165640625

main91656-40625

9354014010

main93540-14010

9354015012

main93540-15012

9354015016

main93540-15016

9411540500

main94115-40500

18 parts on this diagram · 2 diagrams in section
