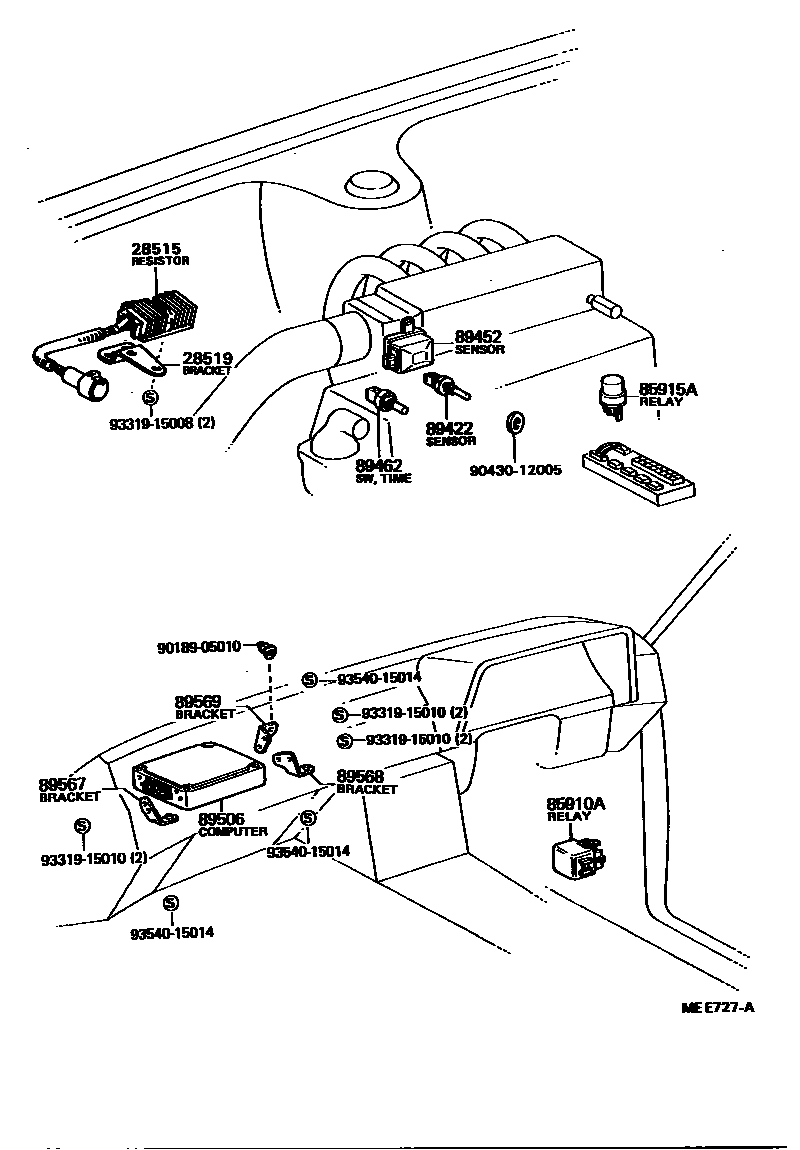

ELECTRONIC FUEL INJECTION SYSTEM

28515RESISTOR, SOLENOID

main28515-10010i22REC..RT142198408-198612

28519BRACKET, SOLENOID RESISTOR

main28519-14010i22REC..RT142198408-198612

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iRT142198408-198612

85915ARELAY, MAIN

main90987-02004iRT142198408-198612

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iRT142198408-198612

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-22010iRT142198408-198508

main89452-28030iRT142198508-198612

89462SWITCH, START INJECTOR TIME

main89462-30011iRT142198408-198612

89506COMPUTER SET, FUEL INJECTION

main89561-20020iRT142198408-198508

main89661-35060iRT142198508-198612

89567BRACKET, FUEL INJECTION COMPUTER

main89567-14060iRT142198408-198612

89568BRACKET, FUEL INJECTION COMPUTER

main89568-14050iRT142198408-198612

89569BRACKET, FUEL INJECTION COMPUTER

main89569-14050iRT142198408-198612

9018905010

main90189-05010

9043012005

main90430-12005

9331915008

main93319-15008

9331915010

main93319-15010

9354015014

main93540-15014

16 parts on this diagram · 1 diagram in section
