82001CABLE, BOND, NO.1

main90980-07148i198508-198612

L=260,TRANSMISSION-FLOOR

main90980-07176i198508-198612

L=300,TRANSMISSION-FLOOR

main90980-07196i198201-199907

L=350 & 100,FR SIDE MEMBER

main90980-07200i198201-198508

L=350,ENGINE-DASH PANEL

8201BATTERY & BATTERY CABLE

→ Go to FIG 82-01

82011WIRING ASSY, BRAKE WARNING SYSTEM

main82011-20040i198201-198312

82111WIRE, ENGINE ROOM MAIN

main82111-20080i198201-198508

main82111-20090i198201-198508

main82111-20110i198201-198312

main82111-20120i198201-198312

main82111-20161i198601-198612

main82111-20570i198508-198612

main82111-20590i198508-199907

main82111-20740i198612-198705

main82111-20741i198705-198902

main82111-20742i198902-198904

main82111-20743i198904-199907

main82111-20760i198612-199907

main82111-20770i198612-199907

main82111-2B800i199306-199907

SINGAPOLE SPEC

82122WIRE, ENGINE, NO.2

main82122-14031i198201-198307

main82122-14300i198601-198612

main82122-14340i198307-198508

main82122-20030i198201-198312

main82122-20100i198508-199907

main82122-20130i198612-198706

main82122-20131i198706-199312

main82122-20132i199312-199907

main82122-20140i198612-199907

82123WIRE, ENGINE, NO.3

main82123-14050i198201-198508

NO.1

main82123-14060i198201-198508

NO.2

main82123-14090i198601-198612

NO.1

main82123-20010i198612-199907

NO.2

main82123-20020i198612-199907

NO.1

82125WIRE, TRANSMISSION

main82125-14011i198201-198312

main82125-14021i198201-198310

NO.2

main82125-14041i198201-198508

NO.1

main82125-14071i198201-198508

main82125-14140i198601-199907

main82125-20030i198201-198310

main82125-20050i198508-198612

main82125-20120i198612-198706

main82125-20121i198706-199907

82131WIRE, COWL

main82131-20021i198601-198612

main82131-20300i198201-198212

main82131-20301i198212-198412

main82131-20320i198201-198508

main82131-20330i198201-198310

main82131-20340i198201-198312

main82131-20350i198201-198312

main82131-20410i198201-198508

main82131-20420i198201-198508

main82131-20430i198201-198310

main82131-20560i198212-198310

W/POWER WINDOW

main82131-2B810i198508-198612

main82131-2B820i198508-198612

main82131-2B830i198508-198612

main82131-2B840i198508-198612

main82131-2B850i198508-199907

main82131-2D360i198612-199907

main82131-2D370i198612-199401

main82131-2D371i199401-199907

main82131-2D390i198612-199907

main82131-2G820i198801-199401

main82131-2G821i199401-199907

main82131-2H030i198804-199907

main82131-2H031i199306-199907

SINGAPOLE SPEC

82141WIRE, INSTRUMENT PANEL

main82141-20020i198201-198412

main82141-20030i198201-198412

W/TACHOMETER

main82141-20140i198201-198508

main82141-20150i198201-198312

main82141-20160i198201-198310

82210CFUSIBLE LINK

main90982-08125i198201-198612

1.0YELLOW,L=110,L=110,1.0Y

82210DFUSIBLE LINK

main90982-08157i198201-198612

FL 0.3 PINK,L=100,0.3P

82210EFUSIBLE LINK

main90982-08171i198201-198312

NO.1(L=100,1.25B)

main90982-08172i198201-198312

NO.2(L=100,1.0Y)

main90982-08189i198612-199907

40A,TERM.:FEMALE,GRN,40A

main90982-08203×2i198612-199907

80A,TERM.:MALE,BLK,80A

main90982-08211i198508-198612

main90982-08216i198612-199907

30A,TERM.:FEMALE,PNK,30A

82219WIRE, THERMO SENSOR

main82219-22020i198201-198203

82223WIRE, SWITCH

main82223-14040i198201-198310

W/RR DEFOGGER(W/O CONSOLE)

82241CWIRE, RELAY

main82241-20140i198201-198209

W/O LAMP FAILURE INDICATOR

main82241-20150i198201-198412

W/O RHEOSTAT CONTROL

main82241-22100i198201-198508

W/O INTERMITTENT WIPER

main82241-32010i198304-198612

82345DIODE

main82345-12010i198612-199907

82620BLOCK ASSY, FUSIBLE LINK

main82602-20290i198612-199907

82670BLOCK ASSY, JUNCTION, NO.1

main82670-12010i198201-198312

82821ACOVER, CONNECTOR

main82821-12120×2i198601-199907

82823CAP, TERMINAL, NO.1

main82823-14070i198204-198312

STARTER

82823ACAP, TERMINAL, NO.2

main82823-12020i198508-199907

ALTERNATOR

main82823-14010i198508-198612

ALTERNATOR

main82823-17010i198508-198612

ALTERNATOR

main82823-22050i198904-199907

ALTERNATOR

9011906005

main90119-06005

9011906053

main90119-06053

9017908146

main90179-08146

9161160610

main91611-60610

9161160616

main91611-60616

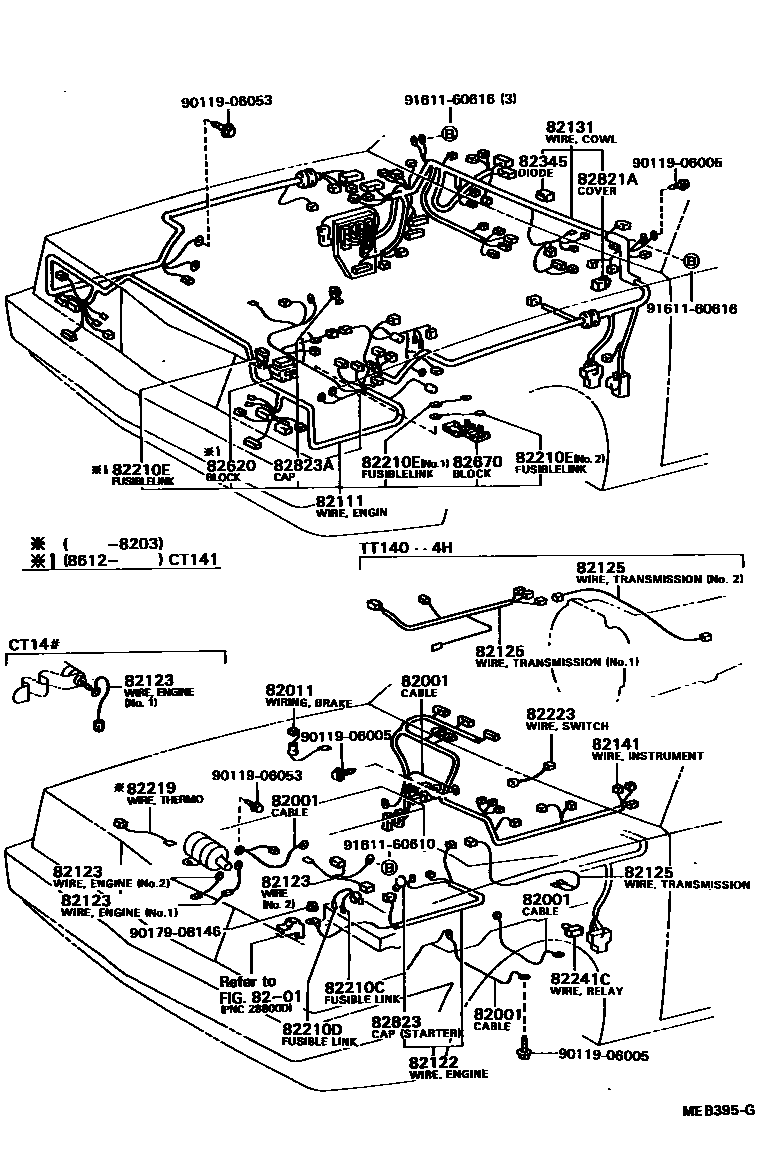

WIRING & CLAMP
