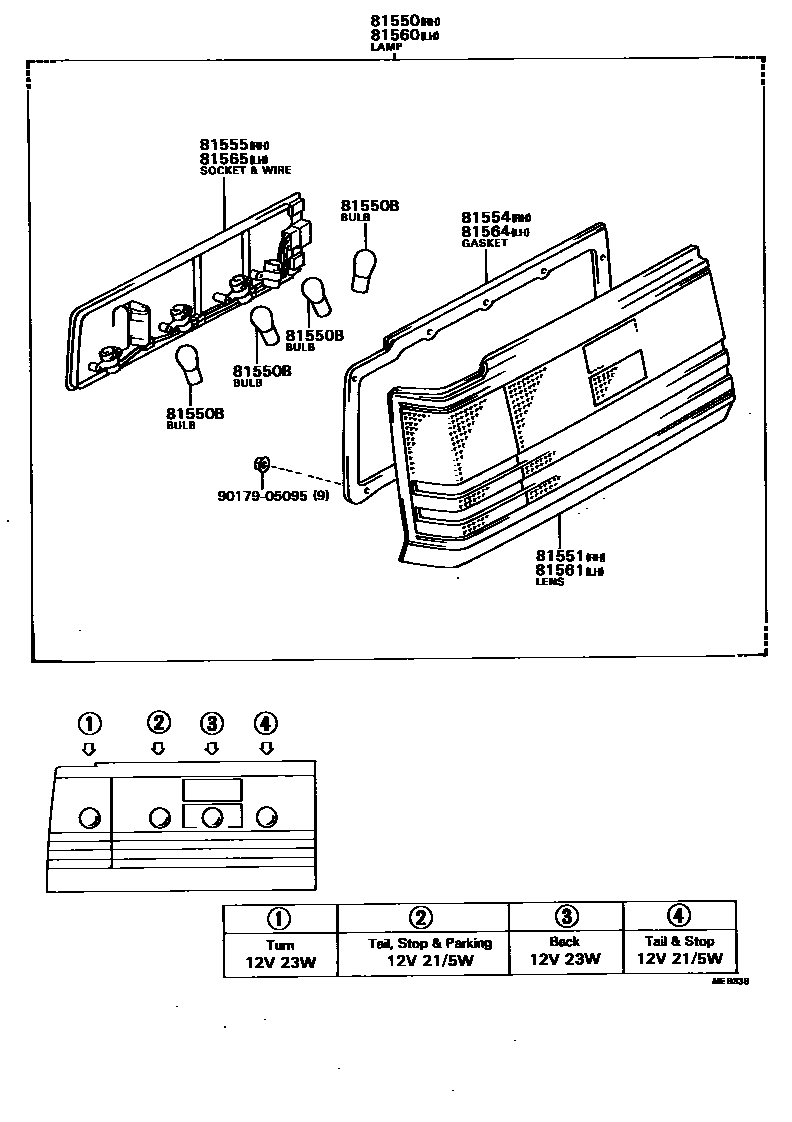

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-20750iCT141,YT140198612-199907

main81550-20830iCT141,YT140198612-199907

CHROME PLATED

main81550-80124iCT140,RT14#,ST141,TT14#..SED198201-198508

KOITO,CKD

main81550-80125iCT140,RT14#,ST141,TT14#..SED198201-198508

IKI,EXCL/CKD

main81550-80127iCT140,RT140,TT14#..WG198201-198304

main81550-80196iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198304-199907

main81550-80199iCT141,ST141..SED..GEN198508-198612

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11210×4iCT141,YT140198612-199907

12V 21W,12V 21W

main99132-11230×4iCT141,ST141..SED..GEN198508-198612

12V 23W,12V 23W

main99132-21210×4iCT140,RT14#,ST141,TT14#..SED198201-198508

12V 21/5W,12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-20570iCT140,RT14#,ST141,TT14#..SED198201-198508

KOITO,CKD

main81551-20580iCT140,RT14#,ST141,TT14#..SED198201-198508

IKI,EXCL/CKD

main81551-20630iCT141,ST141..SED..GEN198508-198612

main81551-20750iCT141,YT140198612-199907

main81551-20830iCT141,YT140198612-199907

CHROME PLATED

main81551-91261iCT140,RT140,TT14#..WG198201-198304

main81551-91263iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198304-199907

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81552-20750iCT141,YT140198612-199907

main81554-20570iCT140,RT14#,ST141,TT14#..SED198201-198508

KOITO,CKD

main81554-20580iCT140,RT14#,ST141,TT14#..SED198201-198508

IKI,EXCL/CKD

main81554-91261iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-20570iCT140,RT14#,ST141,TT14#..SED198201-198508

KOITO,CKD

main81555-20580iCT140,RT14#,ST141,TT14#..SED198201-198508

IKI,EXCL/CKD

main81555-20750iCT141,YT140198612-199907

main81555-91261iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

81560LAMP ASSY, REAR COMBINATION, LH

main81560-20690iCT141,YT140198612-199907

main81560-20760iCT141,YT140198612-199907

CHROME PLATED

main81560-80128iCT140,RT14#,ST141,TT14#..SED198201-198508

KOITO,CKD

main81560-80129iCT140,RT14#,ST141,TT14#..SED198201-198508

IKI,EXCL/CKD

main81560-80131iCT140,RT140,TT14#..WG198201-198304

main81560-80201iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198304-199907

main81560-80204iCT141,ST141..SED..GEN198508-198612

81561LENS, REAR COMBINATION LAMP, LH

main81561-20510iCT140,RT14#,ST141,TT14#..SED198201-198508

KOITO,CKD

main81561-20520iCT140,RT14#,ST141,TT14#..SED198201-198508

IKI,EXCL/CKD

main81561-20570iCT141,ST141..SED..GEN198508-198612

main81561-20690iCT141,YT140198612-199907

main81561-20760iCT141,YT140198612-199907

CHROME PLATED

main81561-91261iCT140,RT140,TT14#..WG198201-198304

main81561-91263iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198304-199907

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-20570iCT140,RT14#,ST141,TT14#..SED198201-198508

KOITO,CKD

main81562-20690iCT141,YT140198612-199907

main81564-20520iCT140,RT14#,ST141,TT14#..SED198201-198508

IKI,EXCL/CKD

main81564-91261iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-91261iCT140,RT140,ST141,TT14#..WG..(GEN,PHL)198201-199907

main81565-20510iCT140,RT14#,ST141,TT14#..SED198201-198508

KOITO,CKD

main81565-20520iCT141,ST141..SED..GEN198508-198612

main81565-20690iCT141,YT140198612-199907

9017905095

main90179-05095

10 parts on this diagram · 3 diagrams in section
