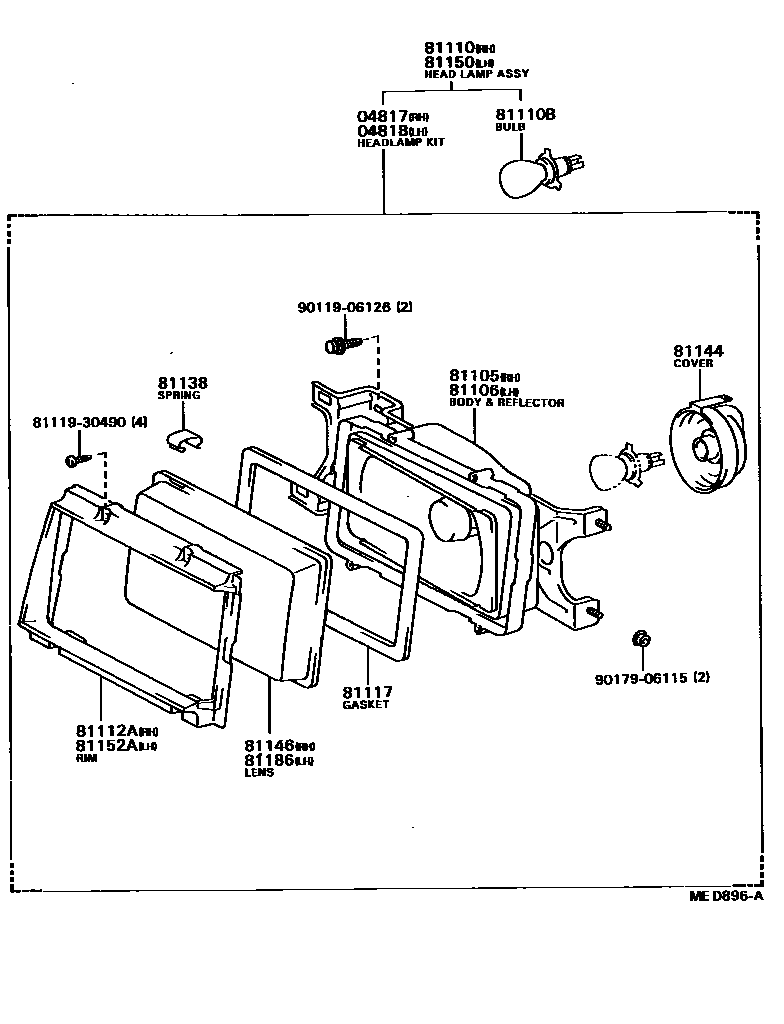

HEADLAMP

0001 1 0002 1 0004 1 0005 1 0006 1 0007 1 0008 1

04817HEADLAMP KIT, W/O SEALED BEAM, RH

main04817-20030iCT140,RT140,TT14#..LHD..(DLX,STD,TAX)198201-198508

HALOGEN,WHITE

main04817-20040iCT140,TT14#..LHD..(DLX,STD,TAX)..GEN198201-198508

HALOGEN,YELLOW

main04817-20050iTT141..LHD..GL198201-198208

HALOGEN,WHITE;FOG LAMP,WHITE

main04817-20060iTT141..LHD..GL..GEN198201-198208

HALOGEN,YELLOW;FOG LAMP,YELLOW

main04817-20070iCT140,ST141,TT14#..RHD..(CS,DLX,S,STD)198201-198612

HALOGEN

main04817-20080iTT141..RHD..GL198201-198412

HALOGEN,WHITE;FOG LAMP,WHITE

main04817-20100iTT141..RHD..GL198201-198412

HALOGEN,WHITE;FOG LAMP,YELLOW

04818HEADLAMP KIT, W/O SEALED BEAM, LH

main04818-20030iCT140,RT140,TT14#..LHD..(DLX,STD,TAX)198201-198508

HALOGEN,WHITE

main04818-20040iCT140,TT14#..LHD..(DLX,STD,TAX)..GEN198201-198508

HALOGEN,YELLOW

main04818-20050iTT141..LHD..GL198201-198208

HALOGEN,WHITE;FOG LAMP,WHITE

main04818-20060iTT141..LHD..GL198208-198310

HALOGEN;FOG LAMP,YELLOW

main04818-20070iCT140,ST141,TT14#..RHD..(CS,DLX,S,STD)198201-198612

HALOGEN

main04818-20080iTT141..RHD..GL198201-198412

HALOGEN,WHITE;FOG LAMP,WHITE

main04818-20100iTT141..RHD..GL198201-198412

HALOGEN,WHITE;FOG LAMP,YELLOW

81105HOUSING SUB-ASSY, HEADLAMP, RH

main81105-20711iCT141198601-198612

main81105-91C01iCT141,YT140198612-199907

*ROU

main81130-2B160iYT140..RHD198801-199907

*REC

main81130-2B170iCT141,YT140..LHD198612-199907

*REC,WHITE

main81130-2B210iCT141,YT140..LHD198612-199907

*REC,YELLOW

main81135-20620iTT141..RHD..GL198201-198412

HALOGEN,FOG LAMP,YELLOW

main81135-20630iCT140,RT140,TT14#..LHD..(DLX,STD,TAX)198201-198508

main81135-20640iCT140,RT140,TT14#..LHD..(DLX,STD,TAX)198201-198508

HALOGEN,WHITE

main81135-20650iCT140,TT14#..LHD..(DLX,STD,TAX)..GEN198201-198508

HALOGEN,YELLOW

main81135-20660iTT141..LHD..GL198201-198208

HALOGEN,WHITE

main81135-20670iTT141..LHD..GL..GEN198201-198310

HALOGEN,YELLOW

main81135-20680iCT140,TT14#..RHD..(DLX,STD)198201-198508

main81135-20690iCT140,ST141,TT14#..RHD..(CS,DLX,S,STD)198201-198612

HALOGEN

main81135-20700iTT141..RHD..GL198201-198412

HALOGEN,FOG LAMP,WHITE

main81135-20740iST141..CSX198304-198408

81106HOUSING SUB-ASSY, HEADLAMP, LH

main81106-20671iCT141198601-198612

main81106-91C01iCT141,YT140198612-199907

*ROU

main81170-2B130iCT141..5F198612-199907

*REC

main81170-2B140iCT141,YT140..LHD198612-199907

*REC,WHITE

main81170-2B170iCT141,YT140..LHD198612-199907

*REC,YELLOW

main81175-20580iTT141..RHD..GL198201-198412

HALOGEN,FOG LAMP,YELLOW

main81175-20590iCT140,RT140,TT14#..LHD..(DLX,STD,TAX)198201-198508

main81175-20600iCT140,RT140,TT14#..LHD..(DLX,STD,TAX)198201-198508

HALOGEN,WHITE

main81175-20610iCT140,TT14#..LHD..(DLX,STD,TAX)..GEN198201-198508

HALOGEN,YELLOW

main81175-20620iTT141..LHD..GL198201-198208

HALOGEN,WHITE

main81175-20630iTT141..LHD..GL198208-198310

HALOGEN,WHITE

main81175-20640iCT140,TT14#..RHD..(DLX,STD)198201-198508

main81175-20650iCT140,ST141,TT14#..RHD..(CS,DLX,S,STD)198201-198612

HALOGEN

main81175-20660iTT141..RHD..GL198201-198412

HALOGEN,FOG LAMP,WHITE

main81175-20740iRT142,ST141..CSI,CSX,CXI198408-198612

81110HEADLAMP ASSY, RH

main81110-20661iST141..CS,DLX198508-198604

HALOGEN,WHITE;FOG LAMP,YELLOW

main81110-20712iCT141198601-198612

main81110-20830iRT142,ST141..CS,CSI,CSX,CXI198508-198612

main81110-2B140iST141..CS,DLX198604-199907

HALOGEN,WHITE;FOG LAMP,YELLOW

main81110-2B150iCT141,YT140..LHD198612-199907

*ROU,WHITE

main81110-2B160iCT141,YT140..RHD198612-199907

*REC

main81110-2B170iCT141,YT140..LHD198612-199907

*REC,WHITE

main81110-2B180iCT141,YT140..RHD198612-199907

*ROU

main81110-2B200iCT141,YT140..LHD198612-199907

*ROU,YELLOW

main81110-2B210iCT141,YT140..LHD198612-199907

*REC,YELLOW

main81110-2B340iCT141,YT140..LHD198801-199801

*ROU,CHINA SPEC

main81110-80192iTT141..RHD..GL198201-198412

HALOGEN,WHITE;FOG LAMP,YELLOW

main81110-80193iCT140,RT140,TT14#..LHD..(DLX,STD,TAX)198201-198508

main81110-80194iCT140,RT140,TT14#..LHD..(DLX,STD,TAX)198201-198508

HALOGEN,WHITE

main81110-80195iCT140,TT14#..LHD..(DLX,STD,TAX)..GEN198201-198508

HALOGEN,YELLOW

main81110-80196iTT141..LHD..GL198201-198208

HALOGEN,WHITE;FOG LAMP,WHITE

main81110-80197iTT141..LHD..GL..GEN198201-198310

HALOGEN,YELLOW;FOG LAMP,YELLOW

main81110-80198iCT140,TT14#..RHD..(DLX,STD)198201-198508

main81110-80199iCT140,TT14#..RHD..(DLX,STD)198201-198304

HALOGEN

main81110-80200iTT141..RHD..GL198201-198412

HALOGEN,WHITE;FOG LAMP,WHITE

main81110-80260iTT141..LHD..GL198208-198310

HALOGEN,WHITE;FOG LAMP,YELLOW

main81110-80302iST141..S198508-198612

HALOGEN

main81110-80343iRT142..CSI198408-198508

main81110-80429iRT142,ST141..CSX,CXI198408-198508

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13013×2iCT141,YT140..LHD198612-199907

12V 45/40W,WHITE,12V 45/40W,*REC,WHITE

main90981-13014×2iCT141,YT140..LHD198612-199907

12V 45/40W,YELLOW,12V 45/40W,*ROU,YELLOW

main90981-13015×2iCT140,RT14#,ST141,TT14#198201-199907

12V 60/55W,*HAL *WH,12V 60/55W,WHITE,HALOGEN

main90981-13016×2iCT140,TT14#..LHD..GEN198201-198508

12V 60/55W,*HAL *YE,12V 60/55W,YELLOW,HALOGEN

main90981-13022×2iCT141,YT140..RHD198612-199907

12V 65/60W,WHITE,12V 65/60W,*REC

81112RING, SEALED BEAM RETAINING, NO.2 RH

main81111-14261iCT141,YT140198601-199907

*ROU

81112ARIM, HEADLAMP, RH

main81112-20600iCT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX198201-198508

main81112-20601iST141..S198508-198612

main81116-2B160iCT141,YT140198612-199907

*REC

main81136-20620iST141..CS,DLX198508-198604

main81136-20621iST141..CS,DLX198604-199907

81117PACKING, HEADLAMP HOUSING

main81147-30481×2iRT142,ST141,TT141..CSI,CSX,CXI,GL198201-198612

main81147-30490×2iCT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX198201-198508

81138SPRING, HEADLAMP

main81138-20550×12iCT141,YT140198612-199907

*REC

81144COVER, HEADLAMP, NO.1

main81139-30490×2iCT140,RT14#,ST141,TT14#198201-199907

81146LENS, HEADLAMP, RH

main81146-14221iCT141,YT140..LHD198612-199907

*REC,WHITE

main81146-14311iCT140,TT14#..RHD..(DLX,STD)198201-198508

main81146-14461iCT141,YT140..LHD198612-199907

*REC,YELLOW

main81146-14471iCT140,ST141,TT14#..RHD..(CS,DLX,S,STD)198201-198612

HALOGEN

main81146-20660iST141..CS,DLX198508-199907

main81146-20740iST141..CS198508-198612

main81146-30481iTT141..RHD..GL198201-198412

main81146-30490iCT141..5F198612-199907

*REC

81150HEADLAMP ASSY, LH

main81150-20621iST141..CS,DLX198508-198604

HALOGEN,WHITE;FOG LAMP,YELLOW

main81150-20672iCT141198601-198612

main81150-20830iRT142,ST141..CS,CSI,CSX,CXI198508-198612

main81150-2B110iST141..CS,DLX198604-199907

HALOGEN,WHITE;FOG LAMP,YELLOW

main81150-2B120iCT141,YT140..LHD198612-199907

*ROU,WHITE

main81150-2B130iCT141,YT140..RHD198612-199907

*REC

main81150-2B140iCT141,YT140..LHD198612-199907

*REC,WHITE

main81150-2B160iCT141,YT140..LHD198612-199907

*ROU,YELLOW

main81150-2B170iCT141,YT140..LHD198612-199907

*REC,YELLOW

main81150-2B300iCT141,YT140..LHD198801-199801

*ROU,CHINA APEC

main81150-80189iTT141..RHD..GL198201-198412

HALOGEN,WHITE;FOG LAMP,YELLOW

main81150-80190iCT140,RT140,TT14#..LHD..(DLX,STD,TAX)198201-198508

main81150-80191iCT140,RT140,TT14#..LHD..(DLX,STD,TAX)198201-198508

HALOGEN,WHITE

main81150-80192iCT140,TT14#..LHD..(DLX,STD,TAX)..GEN198201-198508

HALOGEN,YELLOW

main81150-80193iTT141..LHD..GL198201-198208

HALOGEN,WHITE;FOG LAMP,WHITE

main81150-80194iTT141..LHD..GL..GEN198201-198310

HALOGEN,YELLOW;FOG LAMP,YELLOW

main81150-80195iCT140,TT14#..RHD..(DLX,STD)198201-198508

main81150-80196iCT140,TT14#..RHD..(DLX,STD)198201-198304

HALOGEN

main81150-80197iTT141..RHD..GL198201-198412

HALOGEN,WHITE;FOG LAMP,WHITE

main81150-80257iTT141..LHD..GL198208-198310

HALOGEN,WHITE;FOG LAMP,YELLOW

main81150-80299iCT140,TT14#..RHD..(DLX,STD)198304-198508

HALOGEN

main81150-80340iST141..CSX198204-198408

main81150-80421iRT142,ST141..CSX,CXI198408-198508

main81150-91C03iCT141,YT140..RHD198612-199907

*ROU

81152RING, SEALED BEAM RETAINING, NO.2 LH

main81111-14261iCT141,YT140198601-199907

*ROU

81152ARIM, HEADLAMP, LH

main81152-20560iCT140,RT140,ST141,TT14#..CS,DLX,S,STD,TAX198201-198508

main81152-20561iST141..S198508-198612

main81156-2B130iCT141,YT140198612-199907

*REC

main81176-20580iST141..CS,DLX198508-198604

main81176-20581iRT142,ST141..CS,CSI198508-198612

81186LENS, HEADLAMP, LH

main81186-14221iCT141,YT140..LHD198612-199907

*REC,WHITE

main81186-14311iCT140,TT14#..RHD..(DLX,STD)198201-198508

main81186-14461iCT141,YT140..LHD198612-199907

*REC,YELLOW

main81186-14471iCT140,ST141,TT14#..RHD..(CS,DLX,S,STD)198201-198612

HALOGEN

main81186-20620iTT141..LHD..GL198201-198310

main81186-20740iRT142,ST141..CSI,CSX,CXI198304-198612

main81186-30591iTT141..RHD..GL198201-198412

main81186-30600iYT140..RHD198801-199907

*REC

8111930490SCREW, HEADLAMP

main81119-30490

9011906126

main90119-06126

9017906115

main90179-06115

19 parts on this diagram · 7 diagrams in section
