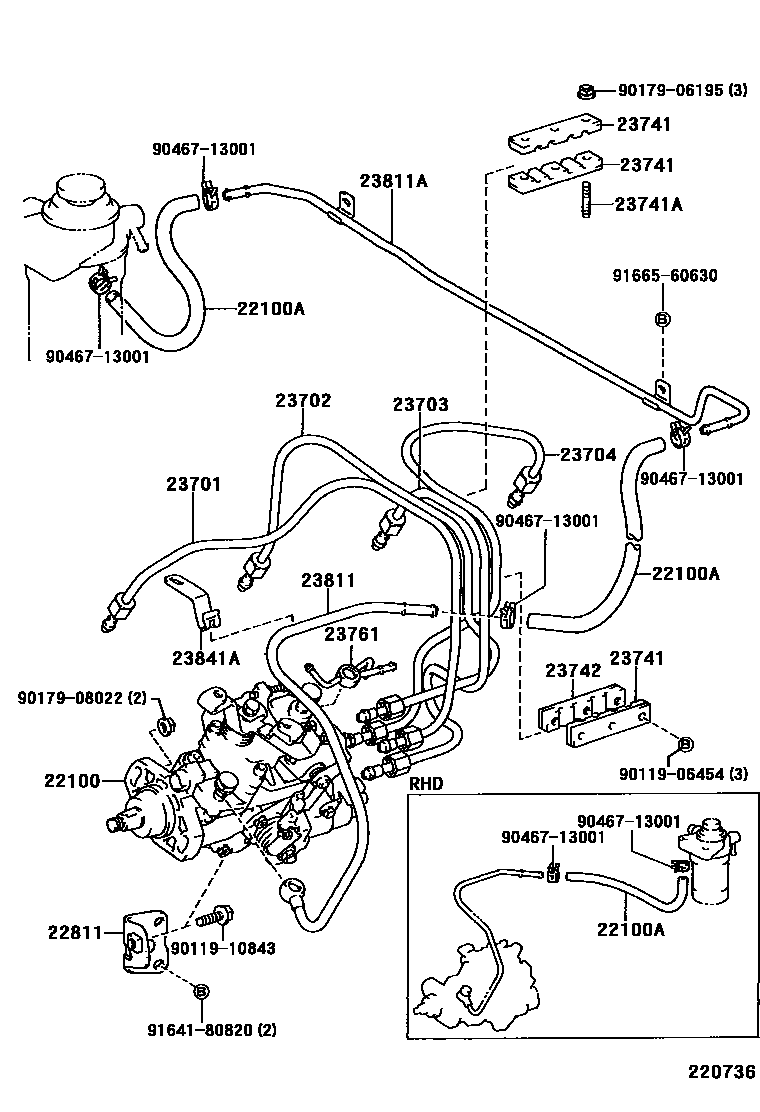

INJECTION PUMP ASSEMBLY
22100PUMP ASSY, INJECTION OR SUPPLY
HIGH ALTITUDE SPEC
HIGH ALTITUDE SPEC
HIGH ALTITUDE SPEC
22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
L=300; L=300(*H,L=260),FILTER SIDE
L=400(*H,L=320),PUMP SIDE
L=300; L=300(*H,L=260),FILTER SIDE
L=400(*H,L=320),PUMP SIDE
22811STAY, INJECTION PUMP, NO.1
23701PIPE SUB-ASSY, INJECTION, NO.1
23702PIPE SUB-ASSY, INJECTION, NO.2
23703PIPE SUB-ASSY, INJECTION, NO.3
23704PIPE SUB-ASSY, INJECTION, NO.4
23741CLAMP, INJECTION PIPE, NO.1
23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)
23742CLAMP, INJECTION PIPE, NO.2
23761PIPE, NOZZLE LEAKAGE, NO.1
HIGH ALTITUDE SPEC
23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811APIPE, FUEL, NO.2(FOR FUEL FILTER TO INJECTION PUMP)
23841ACLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)
9011906454
main90119-06454
9011910843
main90119-10843
9017906195
main90179-06195
9017908022
main90179-08022
9046713001
main90467-13001
9164180820
main91641-80820
9166560630
main91665-60630
21 parts on this diagram · 1 diagram in section
